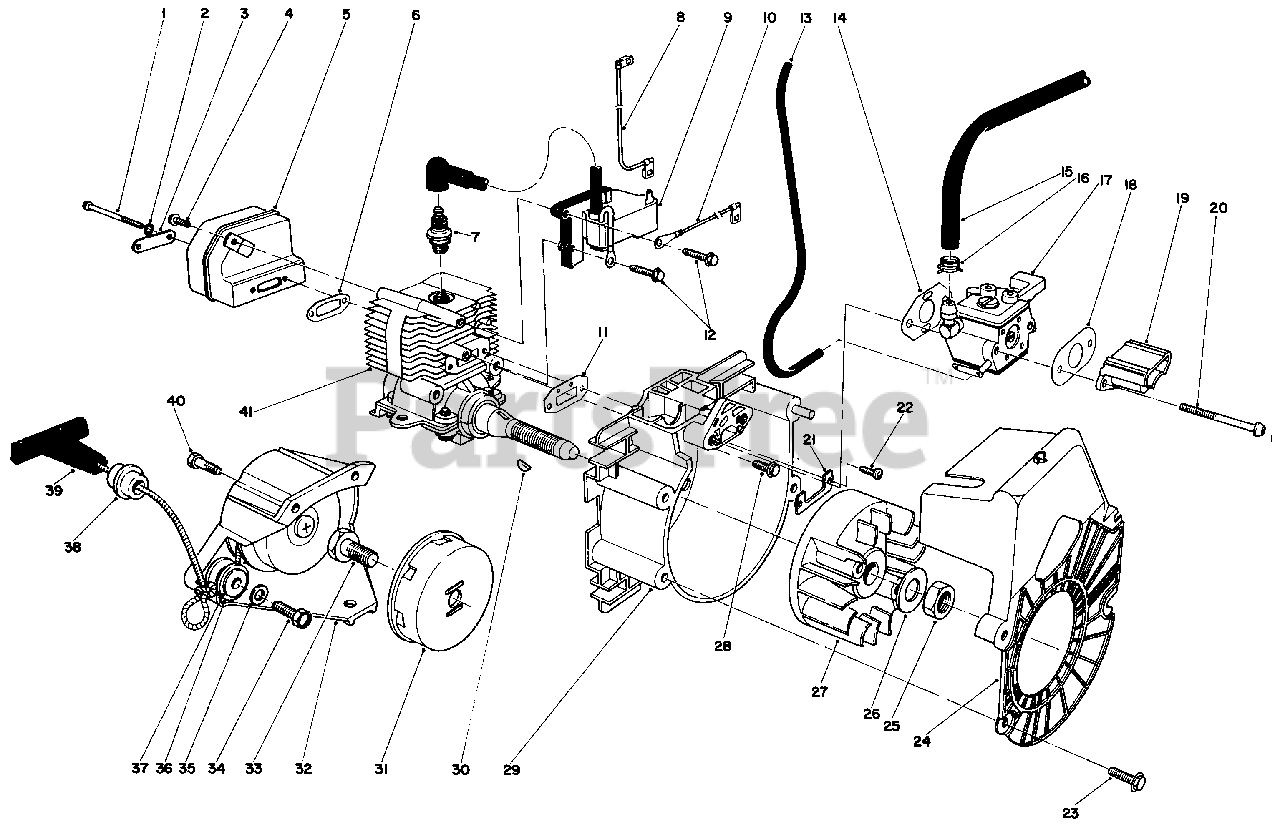

38350 - Lawn-Boy Power Shovel Snow Thrower (SN: 003000001 - 003999999) (1983) ENGINE ASSEMBLY Parts Diagram

Power Shovel Snow Thrower

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 45-2380

Screw, Muffler

$

$

Not available

2

Lawn-Boy 3253-17

Lockwasher

$0.99

$

In Stock, Qty 14

0

3

Lawn-Boy 45-0410

Stress Plate, Muffler

$

$

Currently unavailable

4

Lawn-Boy 45-2370

Screw, Muffler Tab

$

$

Not available

5

Lawn-Boy 45-2510

Muffler Assembly

$

$

Not available

6

Lawn-Boy 45-1950

Gasket, Exhaust

$5.49

$

Usually ships in 3-6 days

0

7

Lawn-Boy 45-2860

Spark Plug

$

$

Not available

8

Lawn-Boy 45-2340

Wire Assembly-Coil

$

$

Not available

9

Lawn-Boy 45-2290

CDI Module, Speed Limiting

$

$

Not available

10

Lawn-Boy 45-2330

Wire Assembly-Ground

$

$

Not available

11

Lawn-Boy 45-1960

Gasket, Intake
(Superseded to 45-2990)

$8.49

$

Usually ships in 3-6 days

0

12

Lawn-Boy 45-0640

Screw, CD I Mount

$

$

Not available

13

Lawn-Boy 44-3170

Hose, Primer

$9.49

$

In Stock, only 1 left!

0

14

Lawn-Boy 45-1790

Gasket, Carburetor
(Superseded to 45-3060)

$9.49

$

Usually ships in 3-6 days

0

15

Lawn-Boy 44-2910

Hose Fuel
(Superseded to 46-4830)

$

$

Not available

16

Lawn-Boy 2412-80

Clamp, Fuel Line

$5.49

$

In Stock, only 1 left!

0

17

Lawn-Boy 45-2360

Carburetor

$

$

Not available

18

Lawn-Boy 45-2350

Gasket, Choke/Spitback Cup

$3.49

$

Usually ships in 3-6 days

0

19

Lawn-Boy 45-2260

Spit Back Cup

$

$

Not available

20

Lawn-Boy 45-2400

Screw, Carburetor

$

$

Not available

21

Lawn-Boy 45-0540

Plate, Stress

$

$

Not available

22

Lawn-Boy 45-2140

Screw, Intake

$

$

Not available

23

Lawn-Boy 45-0630

Screw, Shroud

$

$

Not available

24

Lawn-Boy 45-1851

Cooling Shroud

$

$

Not available

25

Lawn-Boy 3220-5

Nut, Flywheel

$1.99

$

In Stock, Qty 9

0

26

Lawn-Boy 45-2280

Washer, Flywheel

$

$

Not available

27

Lawn-Boy 45-1670

Flywheel

$

$

Not available

28

Lawn-Boy 45-0710

Screw, Backing Plate
(Superseded to 32144-1)

$3.49

$

In Stock, Qty 20+

0

29

Lawn-Boy 45-2021

Backing Plate Assembly

$

$

Not available

30

Lawn-Boy 45-0470

Key, Flywheel

$

$

Not available

31

Lawn-Boy 45-2150

Cup, Starter

$

$

Not available

32

Lawn-Boy 45-1480

Starter Assembly (Incl. Ref. #34-39)

$

$

Not available

33

Lawn-Boy 45-2320

Screw, Starter Cup

$

$

Not available

34

Lawn-Boy 45-2820

Screw, Idler Pulley

$

$

Not available

35

Lawn-Boy 45-2830

Washer, Brake

$

$

Not available

36

Lawn-Boy 45-2840

Idler Pulley (Incl. Ref. #37)

$

$

Not available

37

Bushing

$

$

Not available

38

Lawn-Boy 44-2850

Guide, Rope

$

$

Not available

39

Lawn-Boy 38-6570

Handle

$

$

Not available

40

Lawn-Boy 45-0710

Screw, Starter Assembly
(Superseded to 32144-1)

$3.49

$

In Stock, Qty 20+

0

41

Lawn-Boy 45-2270

Short Block

$

$

Not available

Lawn-Boy 221-710

Engine Complete

Note: Not Illustrated

$

$

Currently unavailable

Lawn-Boy 45-2110

Insert, Threaded

Note: Not Illustrated

$

$

Not available
