38350 - Lawn-Boy Power Shovel Snow Thrower (SN: 003000001 - 003999999) (1983) HANDLE ASSEMBLY Parts Diagram

Power Shovel Snow Thrower

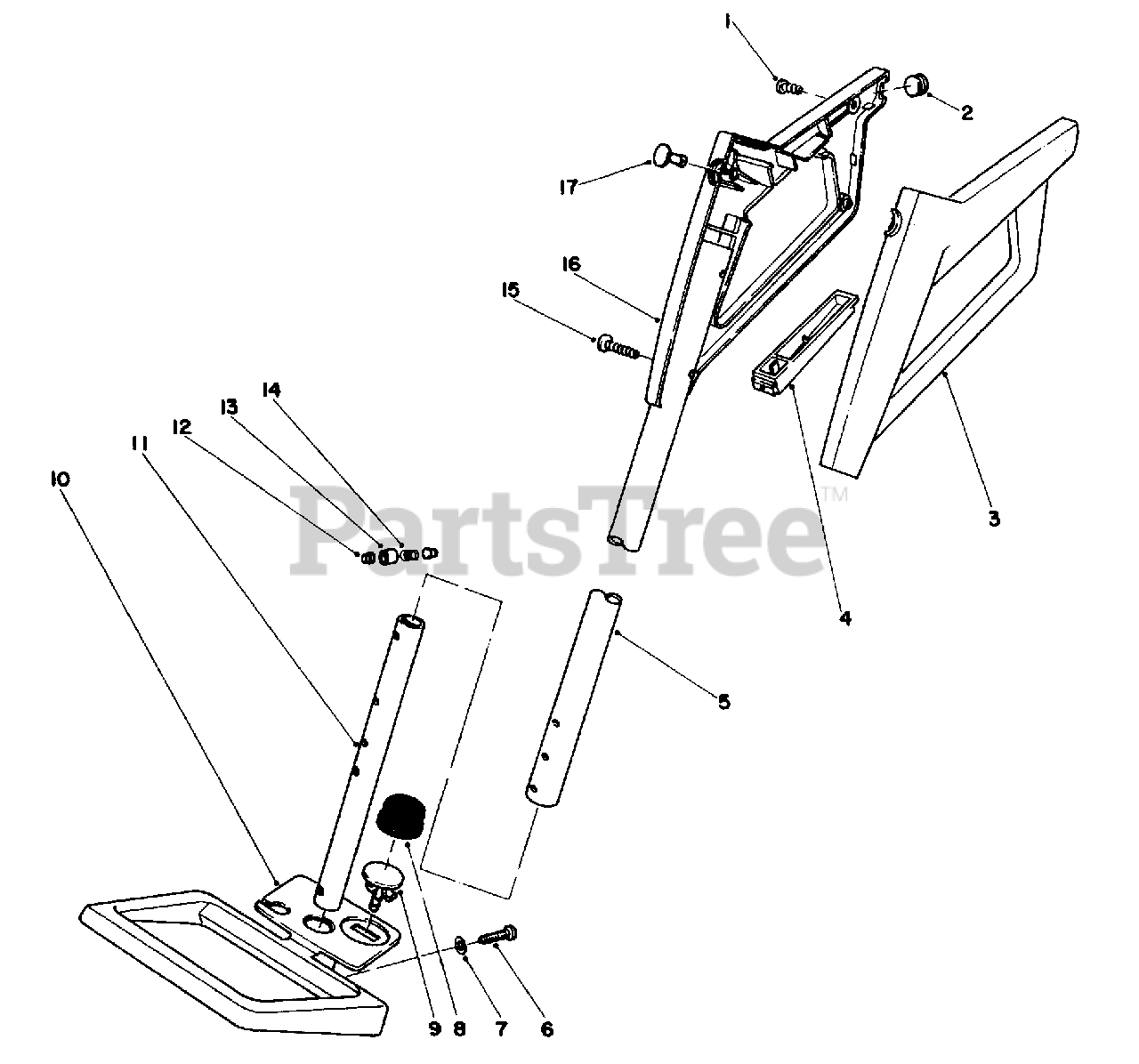

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 32104-118

Screw Self-Tapping Cross Recess Pan Hd.

$1.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 46-5940

Plug-Cord

$

$

Not available

3

Lawn-Boy 42-2840

Grip-Control L.H.
(Superseded to 42-0040)

$

$

Not available

4

Lawn-Boy 46-6500

Cover Handle

$

$

Not available

5

Lawn-Boy 44-2980

Tubing-Upper Handle

$

$

Not available

6

Lawn-Boy 32105-5

Screw-Machine Slotted Hex Hd.

$4.49

$

Usually ships in 3-6 days

0

7

Lawn-Boy 3256-51

Washer-Plain

$0.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 44-3100

Bulb-Primer
(Superseded to 66-7460)

$6.49

$

In Stock, Qty 20+

0

9

Lawn-Boy 44-2750

Body-Primer

$8.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 44-3110

Insert Handle Assembly

$

$

Not available

11

Lawn-Boy 44-2970

Tube-Handle, Mounting

$

$

Not available

12

Lawn-Boy 46-6950

Release Handle

$

$

Not available

13

Lawn-Boy 46-7520

Sleeve Release

$

$

Not available

14

Lawn-Boy 46-6960

Spring-Compression

$

$

Not available

15

Lawn-Boy 32104-121

Screw-Self Tapping Cross Recess Pan Hd.
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

16

Lawn-Boy 42-2830

Grip-Control R.H.
(Superseded to 42-2831)

$

$

Not available

17

Lawn-Boy 46-6490

Plug Key

$

$

Not available
