38350 - Toro Power Shovel Snow Thrower (SN: 003000001 - 003999999) (1983) HANDLE ASSEMBLY Parts Diagram

Power Shovel Snow Thrower

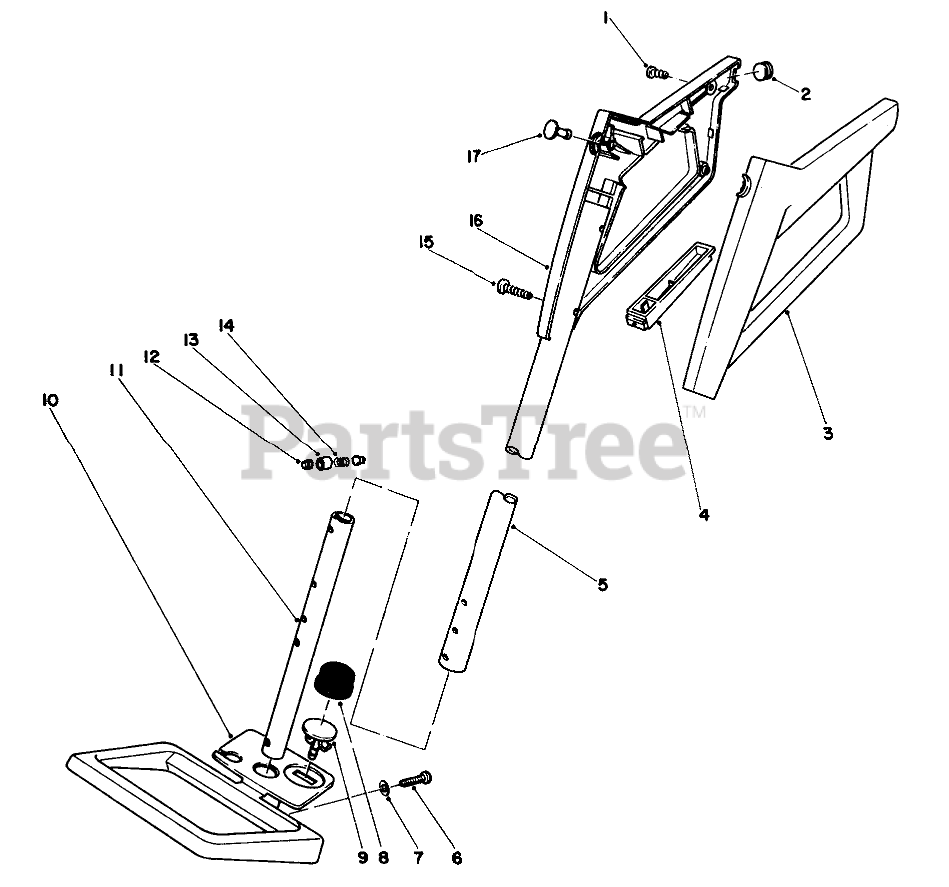

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 32104-118

SCREW-PPH

$

$

Not available

2

Toro 46-5940

Plug-Cord

$

$

Not available

3

Toro 42-2840

Grip-Control L.H.
(Superseded to 42-0040)

$

$

Not available

4

Toro 46-6500

COVER HANDLE

$

$

Not available

5

Toro 44-2980

Tubing-Upper Handle

$

$

Not available

6

Toro 32105-5

SCREW

$4.49

$

Usually ships in 3-6 days

0

7

Toro 3256-51

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

8

Toro 44-3100

Bulb Primer
(Superseded to 66-7460)

$7.49

$

In Stock, Qty 20+

0

9

Toro 44-2750

BODY-PRIMER

$10.99

$

In Stock, Qty 20+

0

10

Toro 44-3110

HANDLE ASM

$

$

Not available

11

Toro 44-2970

Tube-Handle, Mounting

$

$

Not available

12

Toro 46-6950

HANDLE RELEASE

$

$

Not available

13

Toro 46-7520

Sleeve Release

$

$

Not available

14

Toro 46-6960

Spring-Compression

$

$

Not available

15

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

16

Toro 42-2830

Grip-Control R.H.
(Superseded to 42-2831)

$

$

Not available

17

Toro 46-6490

PLUG KEY

$

$

Not available
