38350 - Toro Power Shovel Snow Thrower (SN: 005000001 - 005999999) (1985) ROTOR HOUSING ASSEMBLY Parts Diagram

Power Shovel Snow Thrower

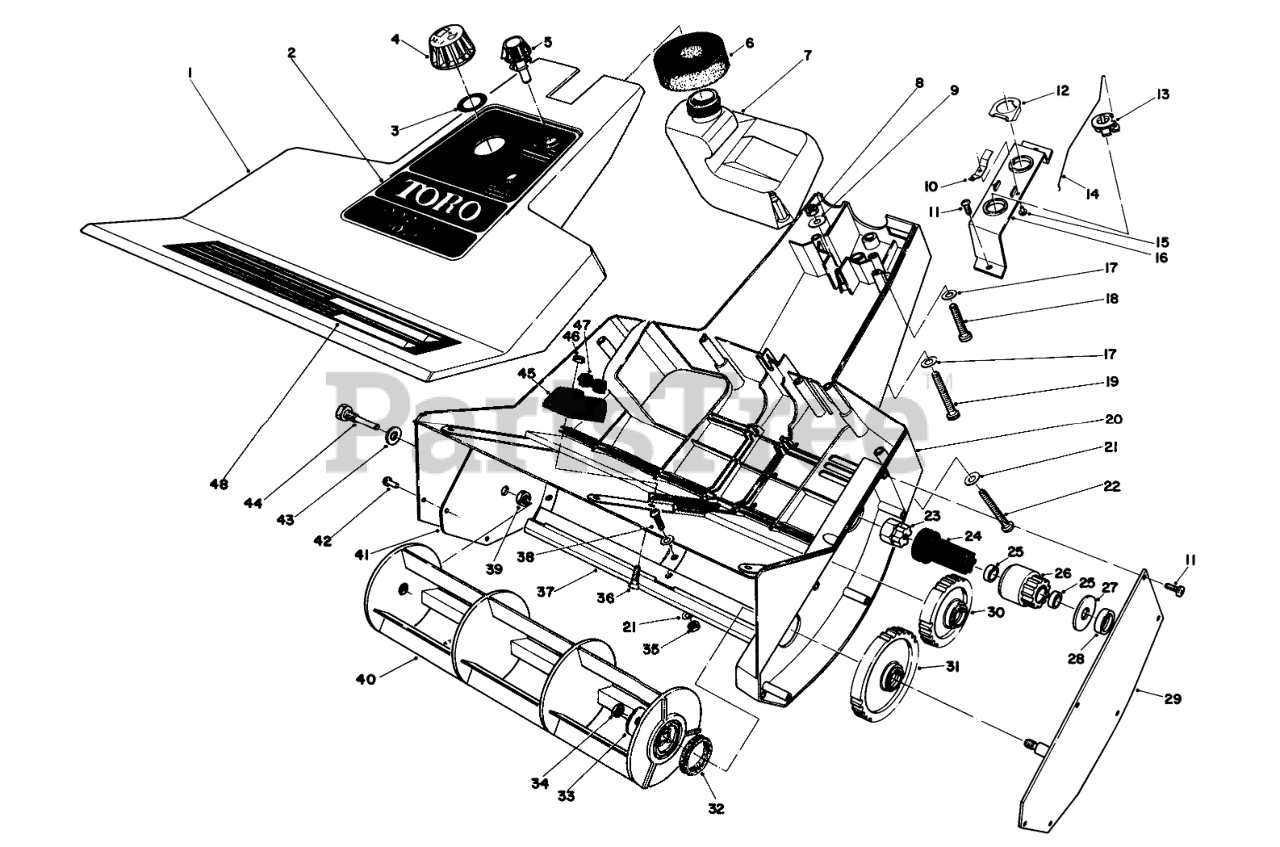

ROTOR HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 11-3359

Insert-Shroud Assembly (Incl. Ref. #48)

$

$

Not available

2

Toro 44-3150

CONTROL DECAL

$

$

Not available

3

Toro 42-5910

Gasket
(Superseded to 80-4730)

$

$

Not available

4

Toro 52-3610

Gas Cap Assembly (Incl. Ref. #3)

$31.99

$

Usually ships in 3-6 days

0

5

Toro 44-2800

Knob-Control

$

$

Not available

6

Toro 25-1610

FOAM PAD

$

$

Not available

7

Toro 44-2950

GAS TANK

$

$

Not available

8

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

9

Toro 3-7501

WASHER

$6.99

$

In Stock, Qty 5

0

10

Toro 46-6750

CONTACT SWITCH

$

$

Not available

11

Toro 32104-118

SCREW-PPH

$

$

Not available

12

Toro 46-6760

SWITCH ACTUATOR

$

$

Not available

13

Toro 44-2810

CONTROL

$

$

Not available

14

Toro 46-2000

CHOKE LINKAGE

$

$

Not available

15

Toro 3290-56

.125 X 1/8 POP RIVET

$

$

Not available

16

Toro 44-2770

Bracket-Controls

$

$

Not available

17

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 3274-58

SCREW-HSH

$

$

Not available

19

Toro 3274-60

SCREW-HSH

$

$

Not available

20

Toro 46-5990

Housing (Incl. Ref. #41 & 42)

$324.99

$

Usually ships in 3-6 days

0

21

Toro 3256-51

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

22

Toro 32105-6

MACH SCREW 10-24 2.25 L

$

$

Not available

23

Toro 44-2890

Adapter-Crankshaft

$

$

Not available

24

Toro 38-8570

DRIVE COUPLING

$

$

Not available

26

Toro 44-2820

Gear Assembly-Drive (Incl. Ref. #25)

$

$

Not available

27

Toro 5-0737

Washer

$

$

Not available

28

Toro 44-3080

Spacer Gear

$

$

Not available

29

Toro 49-1700

Gear Carrier Plate

$

$

Not available

30

Toro 44-2780

Gear Assembly-Idler

$

$

Not available

31

Toro 44-2740

Gear Assembly-Rotor

$

$

Not available

32

Toro 44-2710

FELT WASHER

$

$

Not available

33

Toro 3256-58

WASHER-FLAT
(Superseded to 3256-55)

$5.49

$

In Stock, Qty 9

0

34

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

35

Toro 3296-54

NUT-LOCK

$5.49

$

Usually ships in 3-6 days

0

36

Toro 32108-98

Screw-Machine Slotted Flat Hd.

$

$

Not available

37

Toro 44-2960

SCRAPER

$43.99

$

Usually ships in 3-6 days

0

38

Toro 32122-53

8-32 PH TRUSS HD MS

$0.99

$

Usually ships in 3-6 days

0

39

Toro 32146-21

3/8 24 JAM NUT

$

$

Not available

40

Toro 44-2730

ROTOR

$67.99

$

Usually ships in 3-6 days

0

41

Plate Housing Reinforcement

$

$

Not available

42

Toro 3290-55

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

43

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

44

Toro 38-8210

ROTOR PIN

$

$

Not available

45

Toro 44-3090

Mount-Engine Upper

$

$

Not available

46

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

47

Toro 44-2860

Mount-Rubber Isolator

$

$

Not available

48

Toro 44-3160

Decal-Warning

$

$

Not available
