38360 - Toro 12" Power Shovel Plus (SN: 270000001 - 270999999) (2007) Rotor and Drive Assembly Parts Diagram

12" Power Shovel Plus

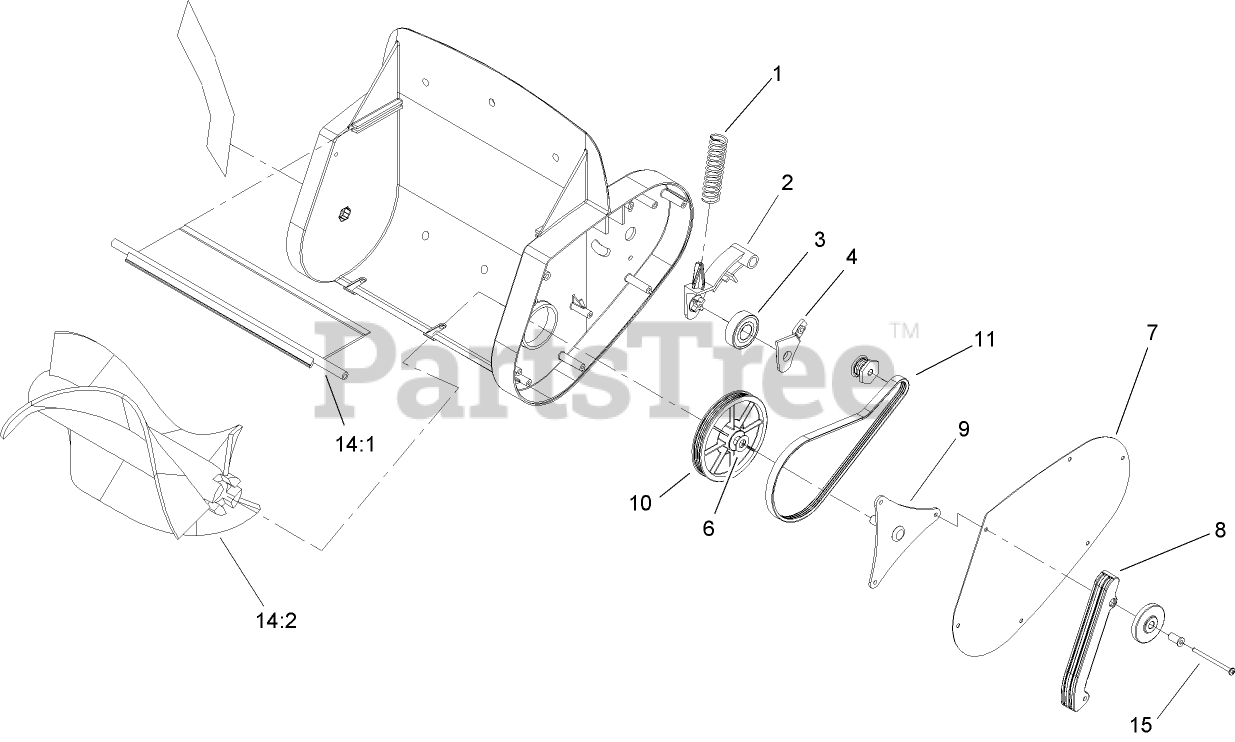

Rotor and Drive Assembly Parts Diagram

  • Title

1

Toro 61-8880

SPRING

$13.99

$

Usually ships in 3-6 days

0

2

Toro 106-9796

ARM-IDLER

$13.99

$

Usually ships in 3-6 days

0

3

Toro 100-1048

See Supercession: 38-7820
(Superseded to 38-7820)

$15.99

$

In Stock, Qty 20+

0

4

Toro 106-9797

RETAINER-PULLEY, IDLER ARM

$4.49

$

Usually ships in 3-6 days

0

6

Toro 37-8080

WASHER-THRUST

$6.99

$

Usually ships in 3-6 days

0

7

Toro 106-9780-03

PLATE-SIDE

$

$

Not available

8

Toro 106-9788

SCRAPER-LEFT, SWEEP

$15.99

$

Usually ships in 3-6 days

0

9

Toro 106-9781

PULLEY BRACKET ASM

$19.99

$

Usually ships in 3-6 days

0

10

Toro 107-9986

PULLEY ASM

$25.99

$

Usually ships in 3-6 days

0

11

Toro 106-9767

BELT-DRIVE

$38.99

$

In Stock, only 2 left!

0

14

Loose Parts Package

Note: Not serviced separately

$

$

Not available

14:1

Toro 107-9961

DEFLECTOR AND DECAL ASM

$

$

Not available

14:2

Toro 106-9772

BRUSH-ROTOR

$

$

Not available

15

Toro 107-9974

SCREW-PPH

$

$

Not available
