38410 (CCR 2400) - Toro Snow Thrower (SN: 079000001 - 079999999) (1997) SHROUD ASSEMBLY Parts Diagram

Snow Thrower

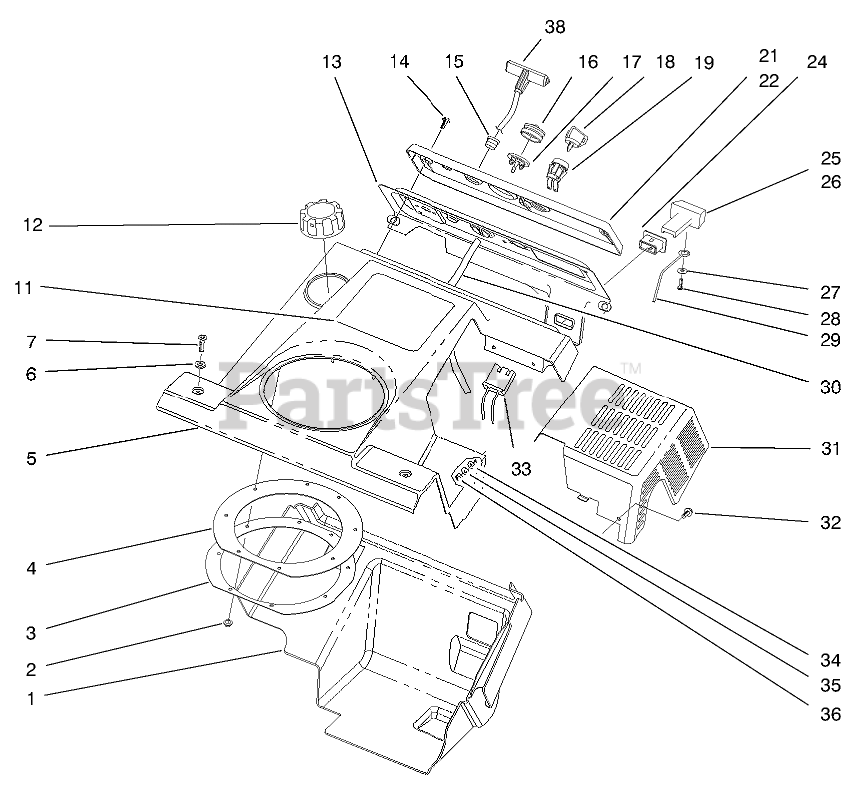

SHROUD ASSEMBLY Parts Diagram

  • Title

1

Toro 94-9919

SHROUD - LOWER

$

$

Not available

2

Toro 3290-474

PALNUT

$0.99

$

In Stock, Qty 11

0

3

Toro 55-9540-01

CHUTE SEAL RETAINER RED
(Superseded to 55-9540-03)

$18.99

$

In Stock, only 1 left!

0

4

Toro 55-9260

SEAL-CHUTE
(Superseded to 105-3543)

$12.99

$

In Stock, only 1 left!

0

5

Toro 94-9925

SHROUD - UPPER

$

$

Not available

6

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 3250-32

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

11

Toro 94-9913

DECAL - CCR2400

$

$

Not available

12

Toro 55-3573

CAP-FUEL ASM
(Superseded to 104-4133)

$14.99

$

In Stock, only 1 left!

0

13

Toro 55-9490-01

Wa-Panel
(Superseded to 12-4659)

$87.99

$

Usually ships in 3-6 days

0

14

Toro 32144-112

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

15

Toro 55-9410

GUIDE-ROPE, STARTER

$9.49

$

Usually ships in 3-6 days

0

16

Toro 66-7460

BULB-PRIMER

$6.49

$

In Stock, Qty 20+

0

17

Toro 44-2750

BODY-PRIMER

$8.99

$

In Stock, Qty 20+

0

18

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

19

Toro 40-5940

SWITCH

$15.99

$

In Stock, Qty 11

0

21

Toro 55-9350

Name Plate-Control (Only On: 38410)
(Superseded to 104-2771)

$

$

Not available

22

Toro 94-2570

Plate-Name (Only On: 38411)

$

$

Not available

24

Toro 55-8820

FITTING

$8.49

$

In Stock, only 3 left!

0

25

Toro 55-8811

Control-Choke Int-l (Only On: 38411)

$

$

Not available

26

Toro 55-8810

Control-Choke (Only On: 38410)

$11.99

$

In Stock, only 3 left!

0

27

Toro 3256-49

WASHER-PLAIN

$0.99

$

In Stock, Qty 8

0

28

Toro 32144-111

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

29

Toro 94-9921

Linkage-Choke
(Superseded to 95-2671)

$13.99

$

In Stock, only 1 left!

0

30

Toro 44-3174

HOSE-PRIMER

$4.99

$

In Stock, Qty 20+

0

31

Toro 94-9924-01

Shield-Heat

$

$

Currently unavailable

32

Toro 32105-8

SCREW-SHH

$2.49

$

In Stock, only 1 left!

0

33

Toro 218-532

CONNECTOR-BODY

$13.99

$

Usually ships in 3-6 days

0

34

Toro 55-9660

WASHER

$

$

Not available

35

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

36

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 12

0

38

Toro 92-4853

HANDLE-STARTER

$8.49

$

In Stock, only 3 left!

0
