38415 (CCR 2400) - Toro Snow Thrower (SN: 079000001 - 079999999) (1997) DISCHARGE CHUTE ASSEMBLY Parts Diagram

Snow Thrower

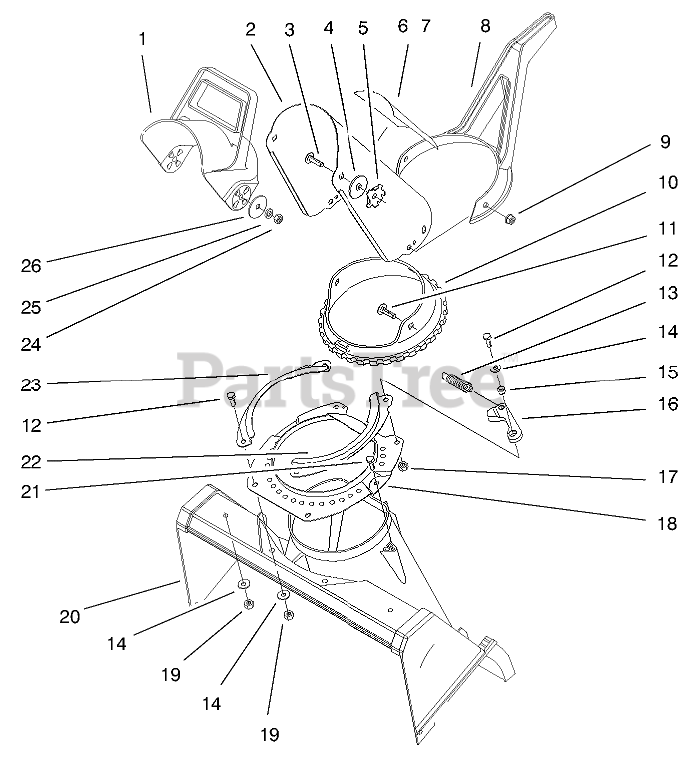

DISCHARGE CHUTE ASSEMBLY Parts Diagram

  • Title

1

Toro 56-2680

CHUTE-DEFLECTOR

$25.99

$

In Stock, only 4 left!

0

2

Toro 94-2790

ASM-Chute & Decal(Serv)(Only On: 38415)
(Superseded to 104-4115)

$71.99

$

In Stock, only 1 left!

0

2

Toro 94-2791

ASM-Chute & Decal(Serv)(Only On: 38416)

$

$

Not available

3

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, only 3 left!

0

4

Toro 20-4320

WASHER-RUBBER

$0.99

$

In Stock, Qty 5

0

5

Toro 55-8950

PLATE-FRICTION

$9.49

$

In Stock, only 2 left!

0

6

Toro 94-2900

Decal-Danger (Only On: 38415)
(Superseded to 104-4135)

$5.99

$

Usually ships in 3-6 days

0

7

Toro 94-2901

Decal-Danger (Only On: 38416)

$

$

Not available

8

Toro 94-9914

HANDLE-CONTROL, CHUTE

$12.99

$

In Stock, Qty 6

0

9

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, Qty 5

0

10

Toro 71-4950

GEAR RING, CHUTE

$

$

Not available

11

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 20+

0

12

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Toro 71-5590

OBS DETENT SPRING
(Superseded to 80-4600)

$8.49

$

In Stock, only 4 left!

0

14

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 55-9370

SPACER-BLADE, ROTOR

$2.99

$

In Stock, Qty 20+

0

16

Toro 80-4610

DETENT

$14.99

$

In Stock, Qty 9

0

17

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Toro 55-8921-01

Ring-Chute Support
(Superseded to 55-8921-03)

$29.99

$

In Stock, Qty 6

0

19

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

20

Toro 55-8700

HOUSING

$

$

Not available

21

Toro 46-8092

SCREW-PLASTITE
(Superseded to 137-3101)

$1.49

$

In Stock, Qty 12

0

22

Toro 71-4980-01

LH CHUTE RING RETR RED

$

$

Not available

23

Toro 71-4990-01

Retainer-Chute Ring
(Superseded to 71-4990-03)

$

$

Not available

24

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

25

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 20+

0

26

Toro 3256-68

WASHER-FLAT

$3.49

$

In Stock, Qty 5

0
