38420 (CCR 2500) - Toro Snow Thrower (SN: 079000001 - 079999999) (1997) Engine Tecumseh Model No. Hsk850 Type 8313b Parts Diagram

Snow Thrower

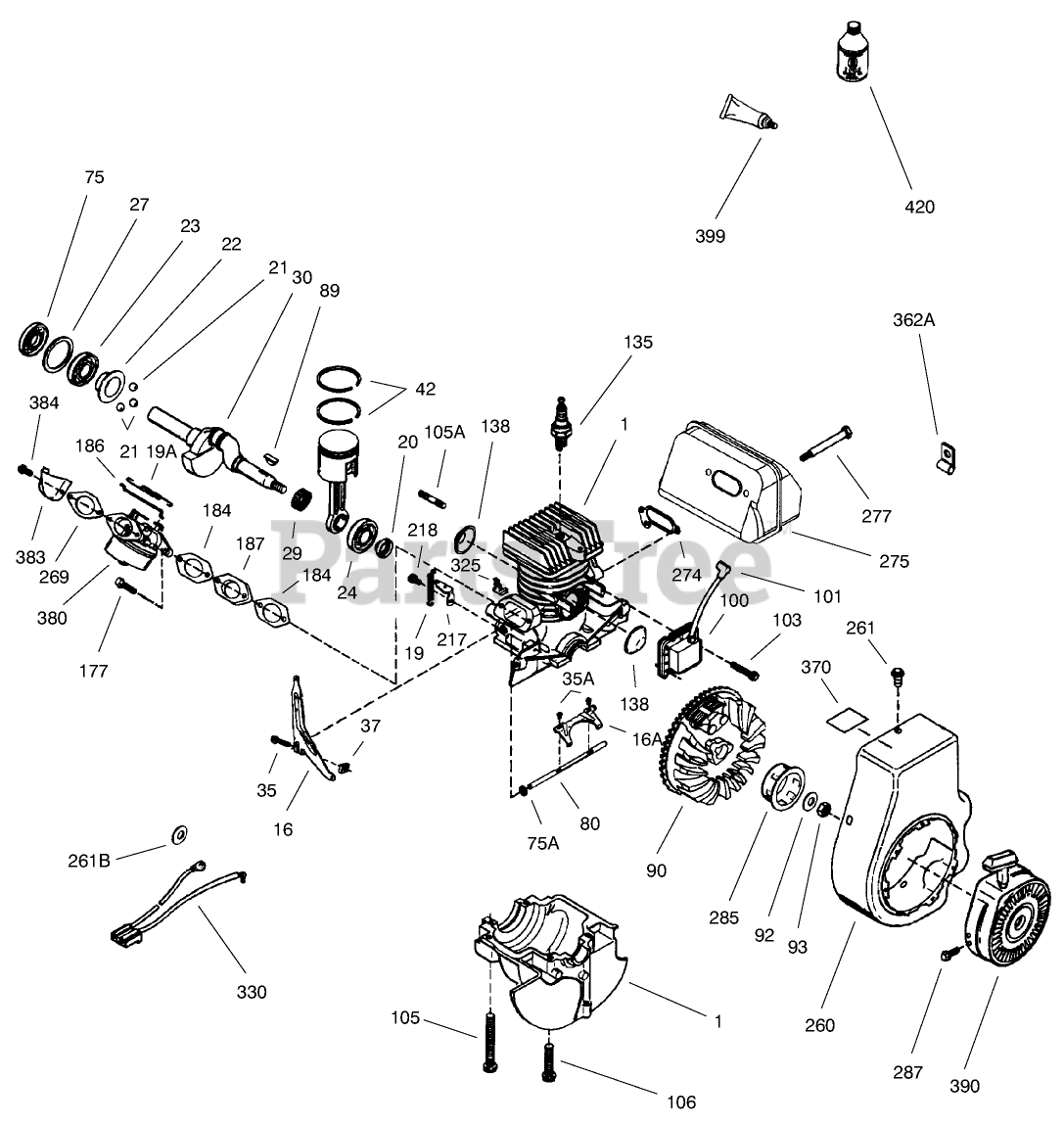

Engine Tecumseh Model No. Hsk850 Type 8313b Parts Diagram

  • Title

RPM High 3550-3850

$

$

Not available

RPM Low 00

$

$

Not available

1

Toro 250296A

Cylinder Ass-y (Incl. 75A, 105, 106, 138)

$

$

Currently unavailable

16

Toro 490317

Governor Lever

$

$

Currently unavailable

16A

Toro 490304

Governor Lever

$

$

Currently unavailable

19

Toro 490325

Extension Spring

$

$

Currently unavailable

19A

Toro 490318

Throttle Link Spring

$

$

Currently unavailable

20

Toro 510340

Oil Seal

$

$

Currently unavailable

21

Toro 570673

Ball

$

$

Currently unavailable

22

Toro 510338

Ring-Slide

$

$

Currently unavailable

23

Toro 530158

Ball Bearing

$

$

Currently unavailable

24

Toro 530161

Ball Bearing

$

$

Currently unavailable

27

Toro 530159

Bearing Retainer

$

$

Currently unavailable

29

Toro 530164

Bearing-Strip

$

$

Currently unavailable

30

Toro 290681

Crankshaft

$

$

Currently unavailable

35

Toro 29826

Screw

$

$

Currently unavailable

35A

Toro 650506

Screw-Shutter

$

$

Currently unavailable

37

Toro 29216

Nut-Lock

$

$

Currently unavailable

39

Toro 310277B

Piston Rod Ass-y (Incl. 29 42)

$

$

Currently unavailable

42

Toro 310278

Ring Set

$

$

Currently unavailable

75

Toro 510339

Oil Seal

$

$

Currently unavailable

75A

Toro 510337

Oil Seal

$

$

Currently unavailable

80

Toro 490305

Governor Shaft

$

$

Currently unavailable

89

Toro 611191

J CLIP F

$

$

Not available

90

Toro 611192

BRACKET-BRAKE F

$

$

Not available

92

Toro 650815

Washer-Belleville

$

$

Currently unavailable

93

Toro 650816

Nut-Flywheel

$

$

Currently unavailable

100

Toro 34443A

Solid State

$

$

Currently unavailable

101

Toro 610118

Cover-Spark Plug

$

$

Currently unavailable

103

Toro 651007

Screw (T-15, 10-24 x 15/16)

$

$

Currently unavailable

105

Toro 650892

Screw

$

$

Currently unavailable

105A

Toro 650796

Stud

$

$

Currently unavailable

106

Toro 650891

Screw

$

$

Currently unavailable

135

Toro 611049

Spark Plug-Resistor (R C J 8Y)

$

$

Currently unavailable

138

Toro 570683

Cover-Port

$

$

Currently unavailable

177

Toro 650959

Screw (5/32 Allen, 1/4-20 x 1)

$

$

Currently unavailable

184

Toro 510326A

Gasket-Carburetor

$

$

Currently unavailable

186

Toro 490319

Governor Link

$

$

Currently unavailable

187

Toro 570438A

Spacer

$

$

Currently unavailable

217

Toro 570667A

Control Lever

$

$

Currently unavailable

218

Toro 650847

Screw

$

$

Currently unavailable

239

Toro 35815

2060A77 WIZARD ROTA

$3.23

$

Usually ships in 3-6 days

0

260

Toro 350462

Blower Housing

$

$

Currently unavailable

261

Toro 650894

Screw

$

$

Currently unavailable

261B

Toro 650890

Washer

$

$

Currently unavailable

274

Toro 510343A

Exhaust Gasket

$

$

Currently unavailable

275

Toro 390342

Muffler

$

$

Currently unavailable

277

Toro 651021

Screw

$

$

Currently unavailable

285

Toro 34449A

Starter Cup

$

$

Currently unavailable

287

Toro 650926

Screw (8-32 x 21/64)

$

$

Currently unavailable

325

Toro 29443

Clip-Wire

$

$

Currently unavailable

330

Toro 611217

SCREW

$

$

Not available

370

Toro 36261

Decal-Lubrication

$

$

Currently unavailable

380

Toro 632751

Carburetor (Incl. 184 pg. 2)

$

$

Currently unavailable

383

Toro 570695

Spit Cup

$

$

Currently unavailable

384

Toro 650229

Screw

$

$

Currently unavailable

390

Toro 590712

Rewind Starter Assembly (Optional)

$

$

Currently unavailable

399

Toro 510334

Gasket Eliminator

$

$

Currently unavailable

420

Toro 730227A

2-Cycle Oil (8oz)

$

$

Currently unavailable
