38430 (CCR 3000) - Toro Snow Thrower (SN: 099000001 - 099999999) (1999) ENGINE & GAS TANK ASSEMBLY Parts Diagram

Snow Thrower

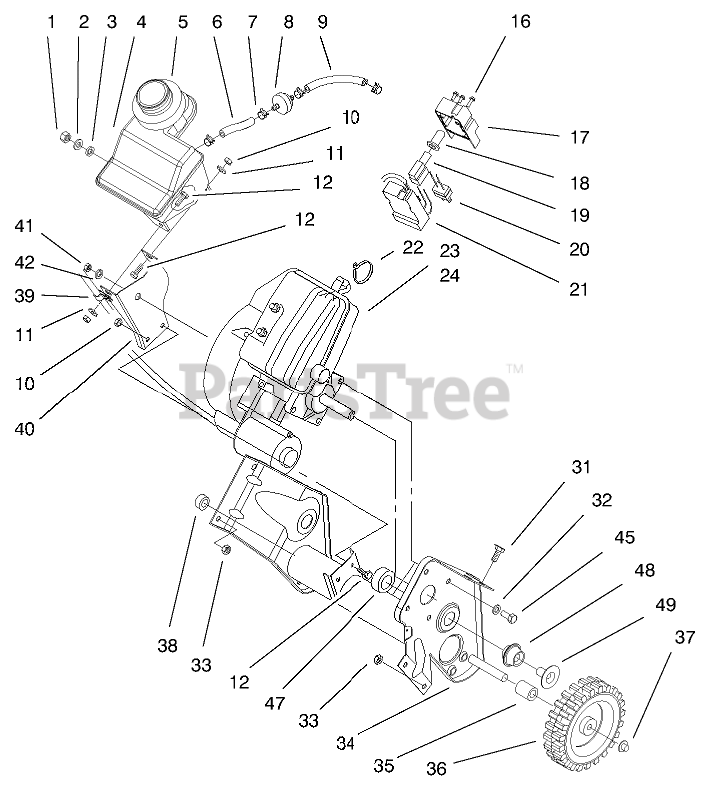

ENGINE & GAS TANK ASSEMBLY Parts Diagram

  • Title

1

Toro 32152-8

NUT-LOCK, CONE

$2.99

$

In Stock, only 1 left!

0

2

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

3

Toro 237-89

GROMMET-RUBBER

$3.49

$

In Stock, Qty 5

0

4

Toro 55-8831

Tank-Gas
(Superseded to 105-8953)

$56.99

$

In Stock, only 2 left!

0

5

Toro 55-9310

SEAL-FOAM

$

$

Not available

6

Toro 49-2481

GAS LINE

$6.99

$

In Stock, Qty 5

0

7

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

8

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, Qty 20+

0

10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

11

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Toro 32144-27

SCREW-PLASTITE

$6.49

$

In Stock, only 3 left!

0

17

Toro 98-2254

Cap-Switch Hsg
(Superseded to 100-3442)

$10.99

$

Usually ships in 3-6 days

0

18

Toro 61-4810

BOOT-SWITCH

$

$

Not available

19

Toro 61-4820

SWITCH-STARTER

$15.99

$

In Stock, only 4 left!

0

20

Toro 94-9933

PLUG-POWER

$6.99

$

In Stock, only 2 left!

0

21

Toro 98-2253

BASE - SWITCH HOUSING

$

$

Not available

22

Toro 250-4

TIE-CABLE

$0.99

$

Usually ships in 3-6 days

0

23

Toro 94-7902

Eng ASM Ccr3000r (Model 38430)

$

$

Currently unavailable

24

Toro 94-9891

Eng ASM Ccr3000e (Model 38435)
(Superseded to 95-7903)

$

$

Not available

31

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

32

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 9

0

33

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

34

Toro 63-3750-03

FRAME WA (BLACK)

$267.99

$

Usually ships in 3-6 days

0

35

Toro 66-6501

SPACER-WHEEL

$3.99

$

In Stock, Qty 20+

0

36

Toro 66-6510

WHEEL

$24.99

$

In Stock, Qty 10

0

37

Toro 32112-14

NUT-PUSH

$2.99

$

In Stock, Qty 20+

0

38

Toro 66-6500

SPACER-WHEEL

$2.99

$

In Stock, only 2 left!

0

39

Toro 2412-91

CLAMP

$3.99

$

In Stock, only 2 left!

0

40

Toro 94-9918-03

SUPPORT-RECOIL

$18.99

$

Usually ships in 3-6 days

0

41

Toro 81-0300

NUT (F/W & PPP)

$

$

Not available

42

Toro 71-5320

WASHER-SUPPORT, ENGINE

$13.99

$

Usually ships in 3-6 days

0

45

Toro 81-0570

BOLT

$7.49

$

In Stock, only 3 left!

0

47

Toro 55-9450

LOAD MOUNT

$

$

Not available

48

Toro 55-9460

MOUNT-REBOUND

$

$

Not available

49

Toro 55-9470

SPACER TUBE

$

$

Not available

50

Toro 56-6380

SCREW
(Superseded to 110-3986)

$1.49

$

Usually ships in 3-6 days

0

51

Toro 84-5292

Motor Assembly
(Superseded to 105-2956)

$

$

Not available
