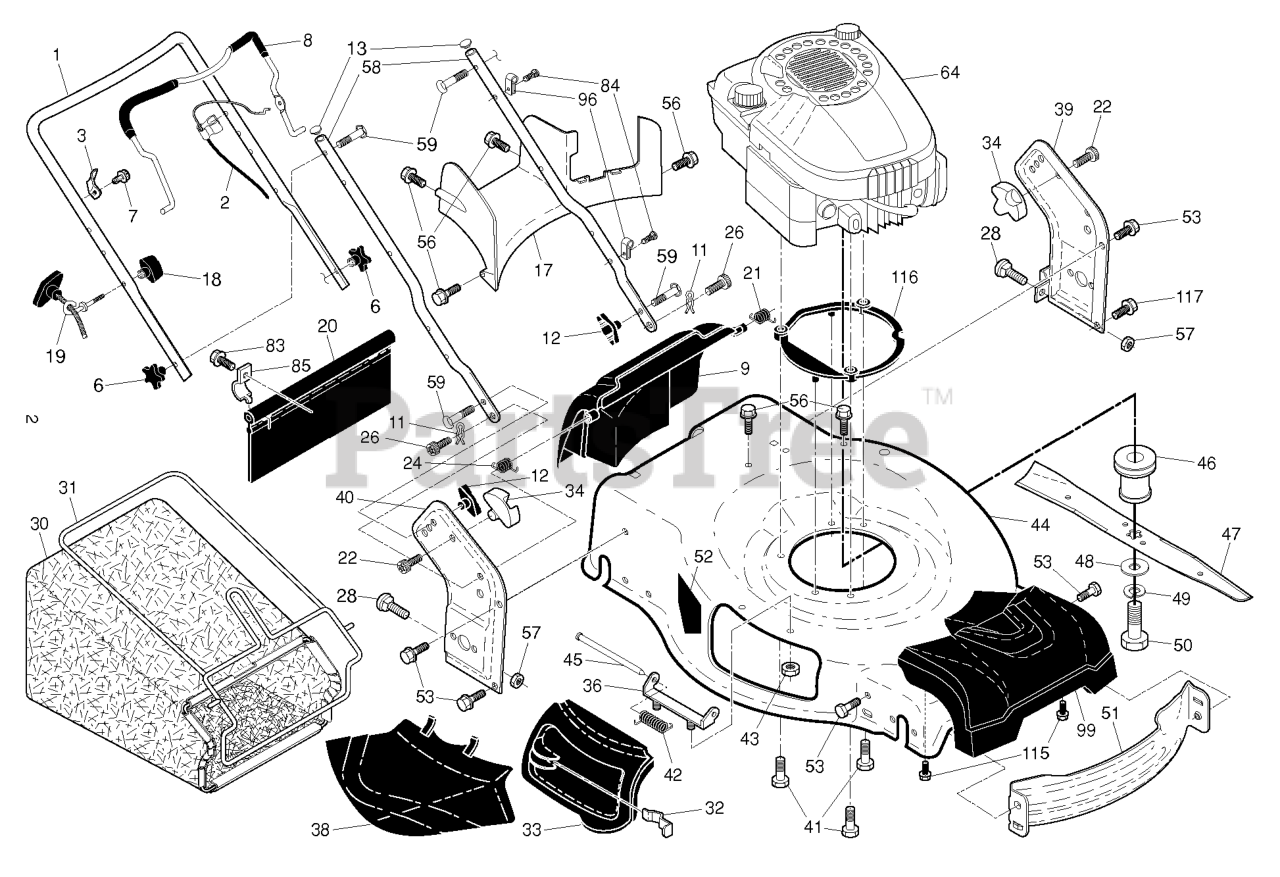

38459 (917384590) - Husqvarna Walk-Behind Mower (2013-12) FRAME & ENGINE Parts Diagram

Walk-Behind Mower

FRAME & ENGINE Parts Diagram

  • Title

506 86 96-01

Husqvarna 506869601

BEARING

$

$

Not available

735 31 15-20

Husqvarna 735311520

RETAINING RING

$5.99

$

Usually ships in 3-10 days

0

506 81 49-04

Husqvarna 506814904

ROD

$

$

Not available

506 97 13-02

Husqvarna 506971302

Hand Guard

$

$

Not available

505 89 76-01

Husqvarna 505897601

REPL BY 506 89 76-01
(Superseded to 506897601)

$

$

Not available

732 21 18-01

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

506 59 74-01

Husqvarna 506597401

BOLT

$9.49

$

In Stock, only 1 left!

0

506 97 81-01

Husqvarna 506978101

PIPE

$

$

Not available

732 21 20-51

Husqvarna 732212051

NUT

$6.99

$

In Stock, only 4 left!

0

506 81 38-01

Husqvarna 506813801

PLATE

$9.49

$

Usually ships in 3-10 days

0

734 11 82-01

Husqvarna 734118201

WASHER

$5.99

$

In Stock, Qty 18

0

725 24 62-51

Husqvarna 725246251

SCREW

$7.99

$

Usually ships in 3-10 days

0

506 97 91-01

Husqvarna 506979101

Washer

$

$

Not available

725 64 53-01

Husqvarna 725645301

SCREW

Note: CORRECTION:

$6.99

$

In Stock, only 1 left!

0

506 53 56-03

Husqvarna 506535603

SPRING

$7.99

$

Usually ships in 3-10 days

0

506 92 46-03

Husqvarna 506924603

PIPE

$

$

Not available

506 98 07-01

Husqvarna 506980701

Bracket

$

$

Not available

506 96 66-01

Husqvarna 506966601

RETAINER

$6.99

$

Usually ships in 3-10 days

0

506 95 17-01

Husqvarna 506951701

LINK

$102.99

$

Usually ships in 3-10 days

0

506 88 97-01

Husqvarna 506889701

SPACER

$

$

Not available

506 78 99-01

Husqvarna 506789901

LINK

$102.99

$

Usually ships in 3-10 days

0

506 98 00-01

Husqvarna 506980001

SHAFT

$

$

Not available

724 64 51-01

Husqvarna 724645101

SCREW
(Superseded to 725645301)

$6.99

$

In Stock, only 1 left!

0

506 97 96-01

Husqvarna 506979601

WHEEL

$

$

Not available

725 24 95-71

Husqvarna 725249571

SCREW

$7.99

$

In Stock, Qty 12

0

735 31 17-00

Husqvarna 735311700

RETAINING RING SGA 15

$5.99

$

In Stock, Qty 12

0

506 87 32-01

Husqvarna 506873201

Rail

$

$

Not available

506 96 30-01

Husqvarna 506963001

DECK ROLLER, FRONT

$87.99

$

In Stock, Qty 19

0

734 11 64-01

Husqvarna 734116401

WASHER BRB 8.4X17

$6.49

$

In Stock, only 4 left!

0

725 24 57-51

Husqvarna 725245751

SCREW

$7.99

$

In Stock, only 1 left!

0

506 89 76-01

Husqvarna 506897601

NUT

$

$

Not available

734 11 77-71

Husqvarna 734117771

BUSHING

$6.49

$

In Stock, only 2 left!

0

506 94 13-03

Husqvarna 506941303

Rod

$

$

Not available

19

Husqvarna 581902101

GUIDE.ROPE.BLK.ZINC.CHROM

$4.99

$

In Stock, only 4 left!

0

44

Husqvarna 581708329

HOUSING.22+AWD.MC.HD.WO.668TRI

$

$

Not available

99

Husqvarna 585668701

COVER.ASSEMBLY.FRONT.22+AWD

$26.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532179617

BOLT.BLADE

$7.49

$

Usually ships in 3-10 days

0

30

Husqvarna 580943408

GBAG.B561029EM.GRY/SILV
(Superseded to 580943401)

$40.99

$

In Stock, Qty 20+

0

48

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 20+

0

3

Husqvarna 532430034

BRACKET.UPSTOP.RT

$6.49

$

In Stock, Qty 8

0

17

Husqvarna 581782101

BAFFLE.REAR.22+RGD.AWD.PLASTIC

$47.99

$

In Stock, Qty 10

0

42

Husqvarna 532193000

SPRING.TORSION

$7.49

$

In Stock, Qty 20+

0

96

Husqvarna 532197991

CLIP.CABLE.BLK

$7.49

$

In Stock, Qty 9

0

24

Husqvarna 532419948

SPRING.RH.GRAY

Note: RH

$6.49

$

In Stock, Qty 13

0

53

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 20+

0

22

Husqvarna 532141841

SCREW.PAN.HEAD.#10

$7.49

$

In Stock, only 4 left!

0

83

Husqvarna 532750097

TAPPING SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 20+

0

12

Husqvarna 532191938

KNOB, DEFLECTOR
(Superseded to 532189713)

$3.99

$

In Stock, Qty 20+

0

85

Husqvarna 532434530

BRACKET.SKIRT.22+.BZP

$6.49

$

In Stock, Qty 20+

0

51

Husqvarna 532430599

BAFFLE.FRONT.22.PLUS

$

$

Not available

56

Husqvarna 817411312

SCREW.HX.13X.750

$7.49

$

In Stock, Qty 20+

0

49

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$3.99

$

In Stock, Qty 20+

0

33

Husqvarna 532419927

DOOR.MULCH.22 PLUS.HUSQ.GREY
(Superseded to 532432642)

$10.99

$

Usually ships in 3-10 days

0

18

Husqvarna 581912601

T-KNOB.NEW ROPE GUIDE

$4.99

$

In Stock, Qty 15

0

20

Husqvarna 532444501

SKIRT.REAR.22PLUS.RGD.LW(2 2MC

$12.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532850999

SCREW

$7.49

$

In Stock, only 3 left!

0

2

Husqvarna 532427497

CABLE.MZR.50.SNAP-IN

$13.99

$

In Stock, Qty 20+

0

1

Husqvarna 580638706

HANDLE.UPPER.3.POS.BS.AW2.GREY

$

$

Not available

6

Husqvarna 532182398

KNOB.HANDLE.PLASTIC.STAR.BLACK

$7.49

$

In Stock, Qty 5

0

21

Husqvarna 532419949

SPRING.LH.BLACK

Note: LH

$6.49

$

In Stock, Qty 11

0

38

Husqvarna 532426129

DEFLECTOR.CLIPPING.22.BLACK

$10.99

$

In Stock, Qty 20+

0

52

Husqvarna 532404763

DANGER DECAL
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

116

Husqvarna 581745601

SPACER.AWD.B&S

$

$

Not available

45

Husqvarna 532175650

ROD.HINGE.21

$7.49

$

In Stock, Qty 20+

0

26

Husqvarna 532419945

SCREW,DOOR/HANDLE.PIVOT

$6.49

$

Usually ships in 3-10 days

0

32

Husqvarna 532441192

LATCH.DOOR.ZINC

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532431390

DOOR.REAR.ASM.22+.HUSQ.FG/RGD
(Superseded to 593304501)

$37.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 7

0

47

Husqvarna 580244001

BLADE.22+4N1.2PIN.5STAR.(P07)
(Superseded to 580244002)

$24.99

$

In Stock, Qty 20+

0

46

Husqvarna 581650901

ADAPTER.BLADE.25M.B&S.AWD

$18.99

$

In Stock, Qty 7

0

57

Husqvarna 532155377

NUT.FLANGE.5/16

$6.49

$

Usually ships in 3-10 days

0

115

Husqvarna 581330001

SCREW.SHOULDER.5/16X1.375

$6.49

$

In Stock, Qty 15

0

7

Husqvarna 532178848

SCREW

$7.49

$

In Stock, Qty 20+

0

11

Husqvarna 532425575

COTTER.HAIRPIN.DOOR/HANDLE.PIV

$6.49

$

In Stock, Qty 20+

0

84

Husqvarna 532428124

FASTENER.PUSH.O.250X0.783

$6.49

$

In Stock, only 2 left!

0

64

000000000

Note: B&S 128M02-0120-F1 FOR SERVICE & PARTS 1-800-233-3723

$

$

Not available

40

Husqvarna 585900803

BRACKET.ASM.HANDLE.RT.22+.GREY

Note: RH

$

$

Not available

59

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$3.99

$

In Stock, Qty 20+

0

36

Husqvarna 532175735

BRACKET.ASM.HINGE.21.FWGD.

$

$

Not available

34

Husqvarna 532438134

BRACKET.GRASSBAG.ATTACHING.BLK

$6.49

$

In Stock, Qty 11

0

39

Husqvarna 585900703

BRACKET.ASM.HANDLE.LT.22+.GREY

Note: LH

$27.99

$

Usually ships in 3-10 days

0

31

Husqvarna 585054702

FRAME.GBAG.22+.BLK

$18.99

$

Usually ships in 3-10 days

0

28

Husqvarna 872250505

BOLT
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 532437516

PLUG.PLASTIC.7/8".14-20.GAUGE

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 580849102

BAIL.OVER.MOLD.ERGO.MZR.ORANGE

$66.99

$

In Stock, only 4 left!

0

58

Husqvarna 532441197

HANDLE.LOWER.22+BT.2PC.GRY

$

$

Not available
