38472 (518 ZR) - Toro 18" Power Clear Snow Thrower (SN: 316000001 - 316999999) (2016) Engine Assembly No. 1 Parts Diagram

18" Power Clear Snow Thrower

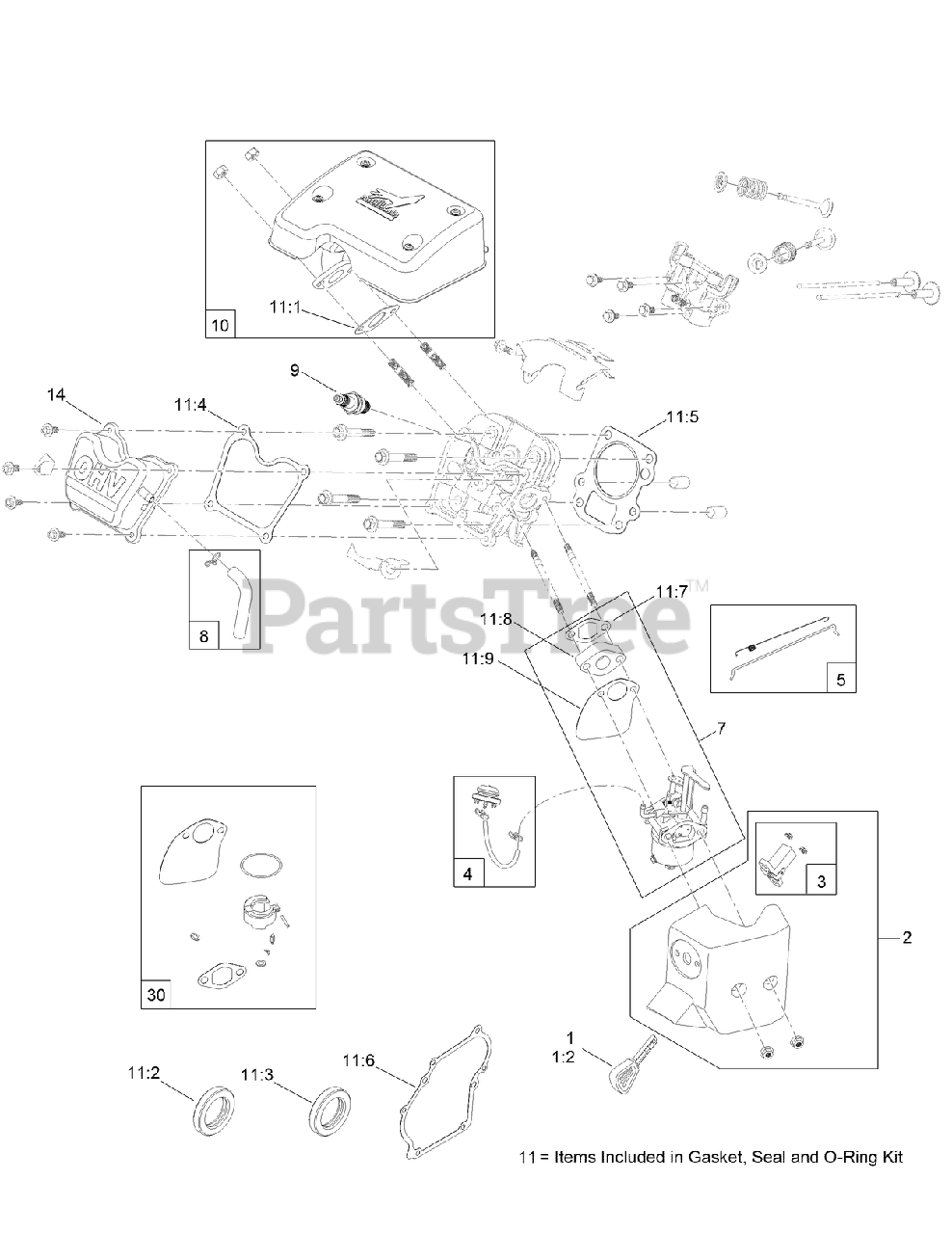

Engine Assembly No. 1 Parts Diagram

  • Title

1

Toro 119-1929

KEY AND LANYARD KIT

$12.99

$

In Stock, only 2 left!

0

1:2

Toro 117-7728

KEY

$4.99

$

Usually ships in 3-6 days

0

2

Toro 119-1982

HEATER BOX KIT

$50.99

$

Usually ships in 3-6 days

0

3

Toro 119-1932

SWITCH KIT

$15.99

$

Usually ships in 3-6 days

0

4

Toro 119-1981

PRIMER BULB KIT

$38.99

$

In Stock, only 2 left!

0

5

Toro 127-9074

GOVERNOR KIT

$29.99

$

Usually ships in 3-6 days

0

7

Toro 127-9053

See Supercession: 127-9352
(Superseded to 136-7931)

$95.99

$

In Stock, only 4 left!

0

8

Toro 119-1921

BREATHER TUBE KIT
(Superseded to 139-0630)

$3.99

$

In Stock, only 2 left!

0

9

Toro 119-1961

SPARK PLUG
(Superseded to 121-4199)

$9.49

$

In Stock, Qty 20+

0

10

Toro 119-1938

See Supercession: 133-9822
(Superseded to 133-9822)

$93.99

$

Usually ships in 3-6 days

0

11

Toro 127-9073

GASKET, SEAL AND O-RING KIT

$78.99

$

Usually ships in 3-6 days

0

11:1

Gasket-Exhaust

Note: Not serviced separately

$

$

Not available

11:2

Loose Parts Package

Note: Not serviced separately

$

$

Not available

11:3

Loose Parts Package

Note: Not serviced separately

$

$

Not available

11:4

Toro 121-0110

GASKET-COVER, VALVE

$13.99

$

In Stock, only 2 left!

0

11:5

GASKET-HEAD, CYLINDER

Note: Not serviced separately

$

$

Not available

11:6

GASKET-COVER, CRANKCASE

Note: Not serviced separately

$

$

Not available

11:7

GASKET-INSULATOR

Note: Not serviced separately

$

$

Not available

11:8

INSULATOR-CARBURETOR

Note: Not serviced separately

$

$

Not available

11:9

GASKET-CARBURETOR

Note: Not serviced separately

$

$

Not available

14

Toro 121-0466

VALVE COVER ASM

$22.99

$

Usually ships in 3-6 days

0

30

Toro 127-9158

CARBURETOR REPAIR KIT

$27.99

$

In Stock, only 2 left!

0
