38474 (518 ZR) - Toro 18" Power Clear Snow Thrower (SN: 416202224 - 999999999) Chute Assembly Parts Diagram

18" Power Clear Snow Thrower

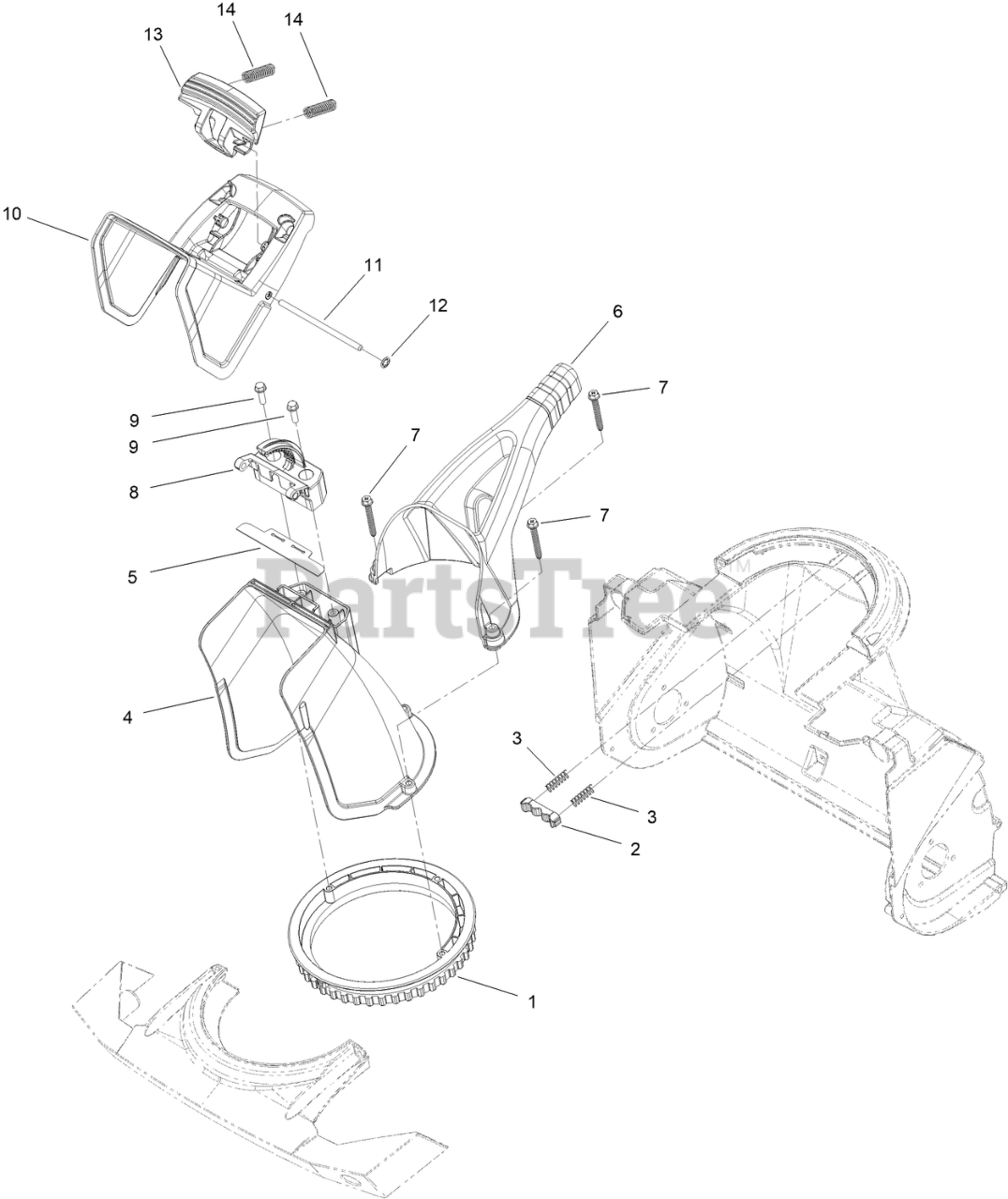

Chute Assembly Parts Diagram

  • Title

1

Toro 145-1666

RING-CHUTE

$11.99

$

Usually ships in 3-6 days

0

2

Toro 75-9160

DETENT-CHUTE

$7.49

$

In Stock, only 2 left!

0

3

Toro 75-9170

SPRING-COMPRESSION

$0.99

$

In Stock, Qty 18

0

4

Toro 108-4939

CHUTE

$21.99

$

In Stock, only 2 left!

0

5

Toro 114-3790

SEAL-DEFLECTOR

$3.49

$

In Stock, Qty 12

0

6

Toro 110-9366

HANDLE-CHUTE

$23.99

$

In Stock, only 3 left!

0

7

Toro 114-3751

SCREW-HWH, PLASTITE

$1.99

$

In Stock, Qty 14

0

8

Toro 108-4942

HINGE-RATCHET, DEFLECTOR

$15.99

$

In Stock, only 2 left!

0

9

Toro 137-3099

SCREW-PLASTITE, HWH

$1.49

$

Usually ships in 3-6 days

0

10

Toro 117-9121

DEFLECTOR-CHUTE, CE

$27.99

$

In Stock, Qty 5

0

11

Toro 136-8672

HINGE PIN-DEFLECTOR

$3.49

$

In Stock, Qty 20+

0

12

Toro 104-8310

RING-RETAINING

$0.99

$

In Stock, Qty 20+

0

13

Toro 108-4941

TRIGGER-DEFLECTOR

$18.99

$

In Stock, Qty 10

0

14

Toro 136-7136

SPRING-COMPRESSION

$1.49

$

In Stock, Qty 20+

0
