385 (212-385-100) - Cub Cadet 26" Front-Tine Tiller (1982) Handle, Wheel and Engine "U"-Channel Assemblies Parts Diagram

26" Front-Tine Tiller

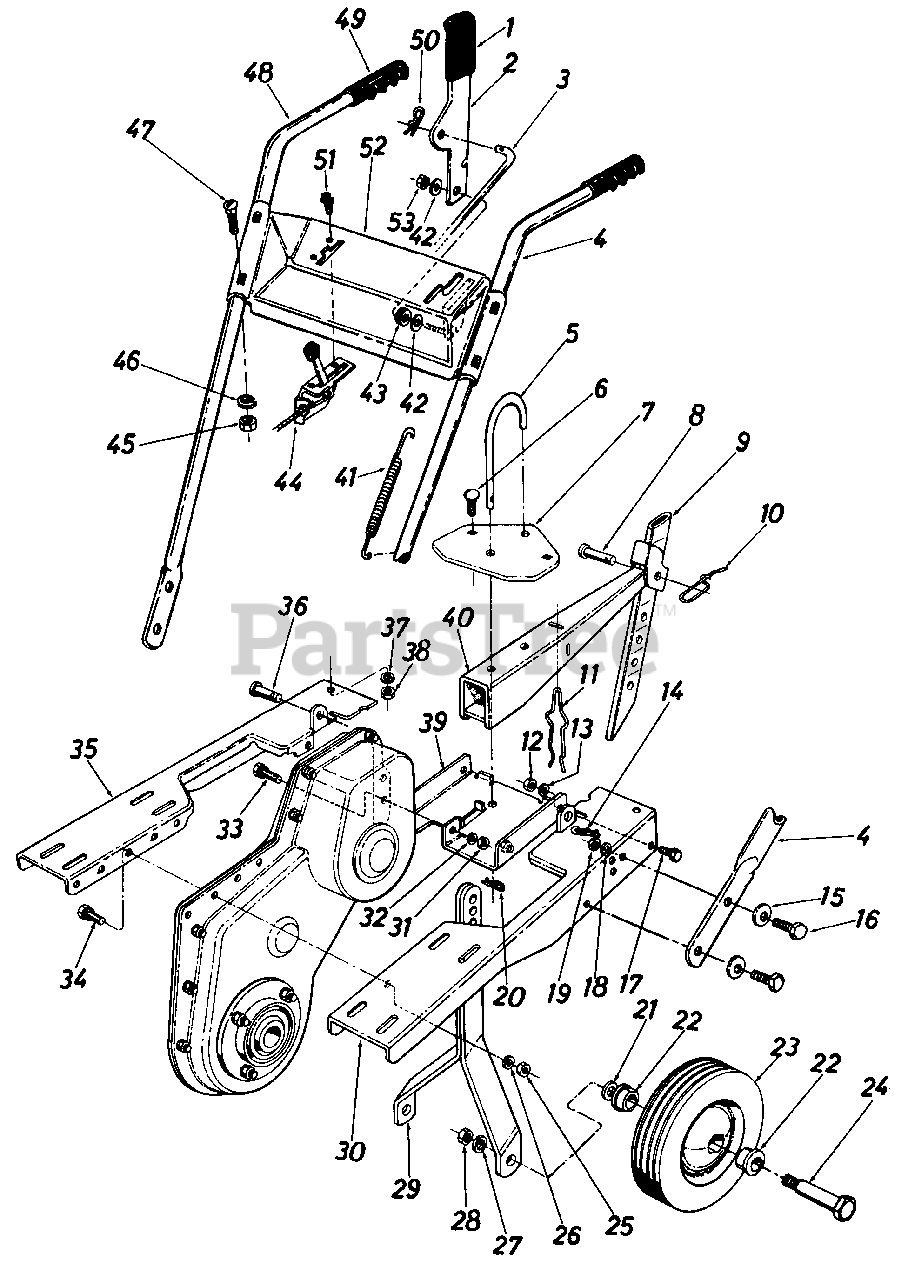

Handle, Wheel and Engine "U"-Channel Assemblies Parts Diagram

  • Title

1

Cub Cadet 720-0143

Grip

$

$

Not available

2

Cub Cadet 747-0442

Clutch Lever

Note: Code N

$

$

Currently unavailable

3

Cub Cadet 747-0443

Clutch Control Rod

Note: Code N

$

$

Currently unavailable

4

Cub Cadet 749-0519

Handle - L.H.

Note: Code N

$

$

Currently unavailable

5

Cub Cadet 04602

"U"-Clevis Pin .500" Dia.

$

$

Not available

6

Cub Cadet 710-0451

Carriage Bolt 5/16-18 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 04586

"U" Channel Plate

$

$

Currently unavailable

8

Cub Cadet 711-0231

Clevis Pin 1/2" Dia.
(Superseded to 911-0231)

$5.99

$

In Stock, Qty 6

0

9

Cub Cadet 04668

Depth Bar

$

$

Not available

10

Cub Cadet 732-0194

Spring Pin

$4.49

$

In Stock, only 1 left!

0

11

Cub Cadet 732-0290

Depth Bar Spring

$

$

Not available

12

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 714-0145

Int. Cotter Pin 1/2" Dia.

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 736-0105

Belleville Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 710-0253

Hex Bolt 3/8-16 x 1.00" Lg.
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 710-0118

Hex Sems Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

19

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

In Stock, only 2 left!

0

20

Cub Cadet 714-0149

Int. Cotter Pin 1/2" Dia.
(Superseded to 914-0149B)

$

$

Not available

21

Cub Cadet 736-0253

Belleville Wash.

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 741-0116

Flange Bearing

$

$

Not available

23

Cub Cadet 734-0736

Wheel Ass'y. Comp. 10 x 2.75

$

$

Not available

24

Cub Cadet 738-0318

Shoulder Bolt .625" Dia. x 2.75" Lg. (1/2-20 Thd.)

$

$

Not available

25

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 712-0239

Hex Cent. L-Nut 1/2-20 Thd.

$5.49

$

In Stock, Qty 20+

0

29

Cub Cadet 06813

Wheel Bracket Ass'y.

$

$

Not available

30

Cub Cadet 06792

Engine "U"-Channel Ass'y. - L H.

$

$

Currently unavailable

31

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 710-0322

Hex Sems Bolt 5/16-18 x 1.00" Lg.

$

$

Not available

34

Cub Cadet 710-0322

Hex Sems Bolt 5/16-18 x 1.00" Lg.

$

$

Not available

35

Cub Cadet 06794

Engine "U"-Channel Ass'y. - R.H.

$

$

Not available

36

Cub Cadet 711-0599

Clevis Pin
(Superseded to 711-0679A)

$13.99

$

In Stock, only 2 left!

0

37

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

39

Cub Cadet 06816

"U"-Channel Bracket Ass'y.

$

$

Currently unavailable

40

Cub Cadet 04589

Tailpiece Assembly

$

$

Not available

41

Cub Cadet 732-0191

Extension Spring

$

$

Not available

42

Cub Cadet 736-0300

Fl-Wash. .380" I.D.

$3.99

$

In Stock, Qty 20+

0

43

Cub Cadet 735-0126

Rubber Washer
(Superseded to 735-0126A)

$

$

Not available

44

Cub Cadet 746-0175

Throttle Control Ass'y. Comp.

$

$

Not available

45

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

46

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

47

Cub Cadet 710-0458

Carriage Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, only 4 left!

0

48

Cub Cadet 749-0518

Handle - R.H.

Note: Code N

$

$

Currently unavailable

49

Cub Cadet 720-0180

Grip - Handle
(Superseded to 720-04083)

$13.99

$

In Stock, only 3 left!

0

50

Cub Cadet 714-0145

Int. Cotter Pin 1/2" Dia.

$4.49

$

In Stock, Qty 20+

0

51

Cub Cadet 710-0160

Hex Wash. Hd. AB-Tap Scr. #8 x .62" Lg.

$

$

Currently unavailable

52

Cub Cadet 15280

Handle Panel

Note: Code N

$

$

Currently unavailable

53

Cub Cadet 712-0116

Hex Inst. L-Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 7
