385 (214-385-100) - Cub Cadet 26" Front-Tine Tiller (1984) Chain Case Assembly Parts Diagram

26" Front-Tine Tiller

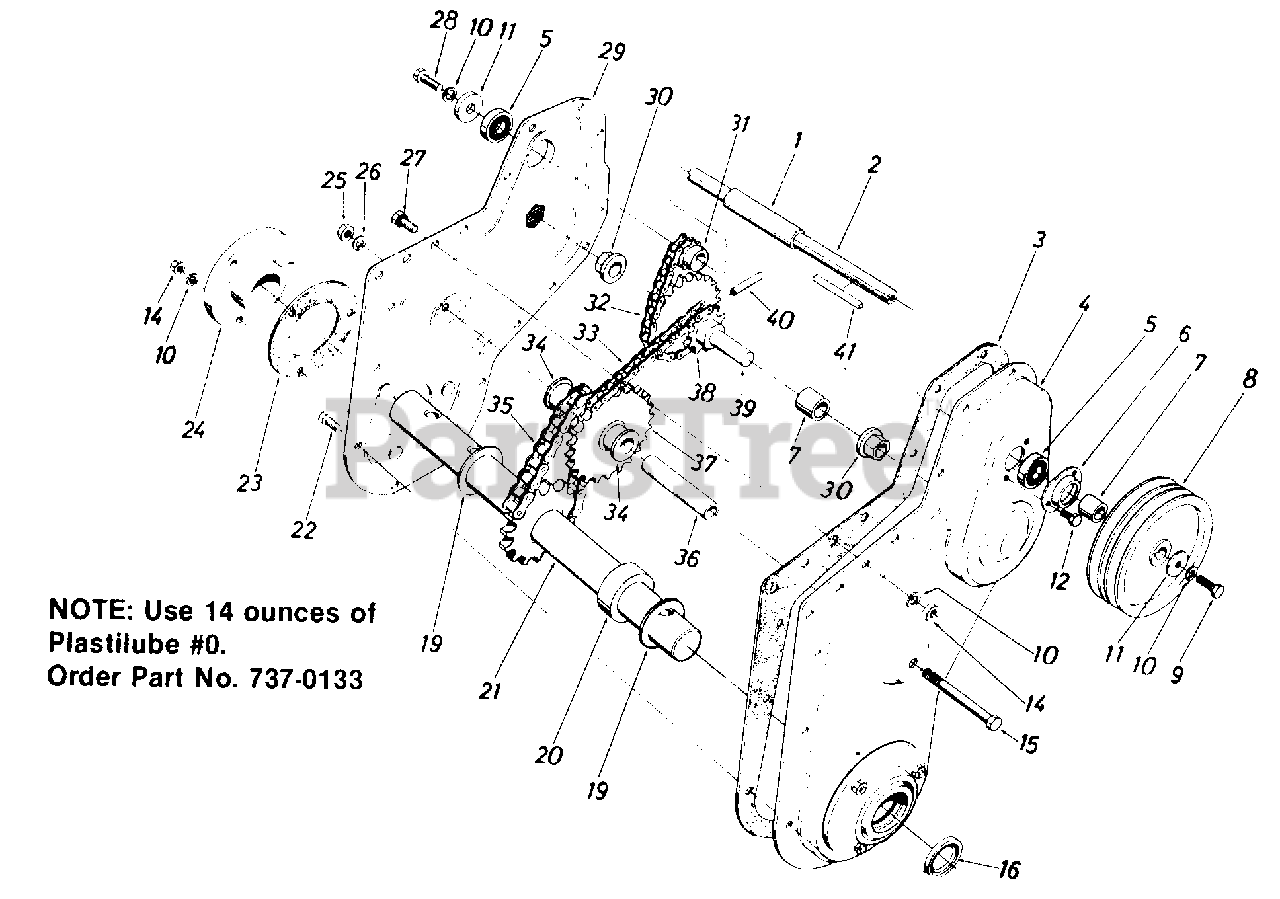

Chain Case Assembly Parts Diagram

  • Title

1

Cub Cadet 750-0315

Spacer .657 I.D. x .78 O.D. x 2.19

$

$

Not available

2

Cub Cadet 738-0182

Jack Shaft
(Superseded to 938-0182)

$

$

Not available

3

Cub Cadet 721-0132

Gasket for Housing
(Superseded to 921-0132)

$35.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 06926

Housing Half - L.H.

$

$

Not available

5

Cub Cadet 741-0155

Ball Bearing .625 I.D. x 1.375 O.D.
(Superseded to 941-0155)

$22.99

$

In Stock, Qty 20+

0

6

Cub Cadet 05034

Bearing Housing
(Superseded to 05034A)

$

$

Not available

7

Cub Cadet 750-0229

Spacer .625 I.D. x .88 O.D. x 1.035
(Superseded to 950-0229)

$

$

Not available

8

Cub Cadet 756-0262

Chain Case Pulley 6.00" Dia.

$

$

Currently unavailable

9

Cub Cadet 710-0643

Hex Bolt 5/16-18 x 1.00" Lg. Special

$6.49

$

In Stock, Qty 20+

0

10

Cub Cadet 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 736-0231

Fl-Wash. 5/16" I.D. x 1.125 O.D. x .125

$4.49

$

In Stock, only 4 left!

0

12

Cub Cadet 710-0599

Hex Self-Tap Scr. 1/4-20 x .50" Lg.

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 710-0644

Hex Bolt 3/8-16 x 3.25" Lg.
(Superseded to 710-3130)

$9.49

$

In Stock, Qty 20+

0

16

Cub Cadet 721-0102

Oil Seal 1" I.D. x 1.357 O.D.
(Superseded to 921-0102)

$19.99

$

In Stock, only 1 left!

0

19

Cub Cadet 736-0259

Fl-Wash. 1.0" I.D. x 1.62 O.D. x .090
(Superseded to 936-0259)

$

$

Not available

20

Cub Cadet 750-0314

Spacer 1.0" I.D. x 2.0" O.D. x .68

$

$

Not available

21

Cub Cadet 06800

Tine Shaft Ass'y.

$

$

Not available

22

Cub Cadet 710-0599

Hex Self-Tap Scr. 1/4-20 x .50" Lg.

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 721-0133

Gasket for Bearing Hsg.

$

$

Not available

24

Cub Cadet 741-0198

Bearing Housing Ass'y.

$

$

Not available

25

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 736-0169

L-Wash. 3/8" Scr.

$3.49

$

In Stock, Qty 20+

0

27

Cub Cadet 710-0322

Hex Sems Bolt 5/16-18 x 1.00" Lg.

$

$

Not available

28

Cub Cadet 710-0538

Hex Bolt 5/16-18 x .62" Lg. Special

$4.49

$

In Stock, Qty 9

0

29

Cub Cadet 06923

Housing Half - R.H.

$

$

Currently unavailable

30

Cub Cadet 748-0229

Hex Flanged Bearing .630 I.D.
(Superseded to 948-0229)

$10.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 713-0206

Sprocket 10 Teeth x .500 Pitch

$

$

Not available

32

Cub Cadet 713-0131

#41 Chain 1/2" Pitch x 34 Links - Endless

$

$

Not available

33

Cub Cadet 713-0186

#420 Chain 1/2" Pitch x 48 Links - Endless
(Superseded to 913-0186)

$

$

Not available

34

Cub Cadet 748-0855

Flange Bearing .626 I.D.

$8.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 713-0187

#50 Chain 5/8" Pitch x 28 Links - Endless

$

$

Not available

36

Cub Cadet 738-0320

Sprocket Shaft

$

$

Not available

37

Cub Cadet 713-0182

Sprocket Bearing Sleeve Ass'y.
(Superseded to 913-0182)

$

$

Not available

38

Cub Cadet 713-0181

Sprocket Sleeve Ass'y.

$

$

Not available

39

Cub Cadet 738-0308

Sprocket Shaft

$

$

Currently unavailable

40

Cub Cadet 715-0114

Spring Pin Spiral 1/4" Dia. x 1.5" Lg.

$8.49

$

In Stock, Qty 9

0

41

Cub Cadet 714-0133

Sq. Key 3/16 x 1.50" Lg.

$4.49

$

In Stock, Qty 12

0

Cub Cadet 737-0133

Plastilube #0 14 oz
(Superseded to 737-0300A)

$32.99

$

In Stock, Qty 20+

0
