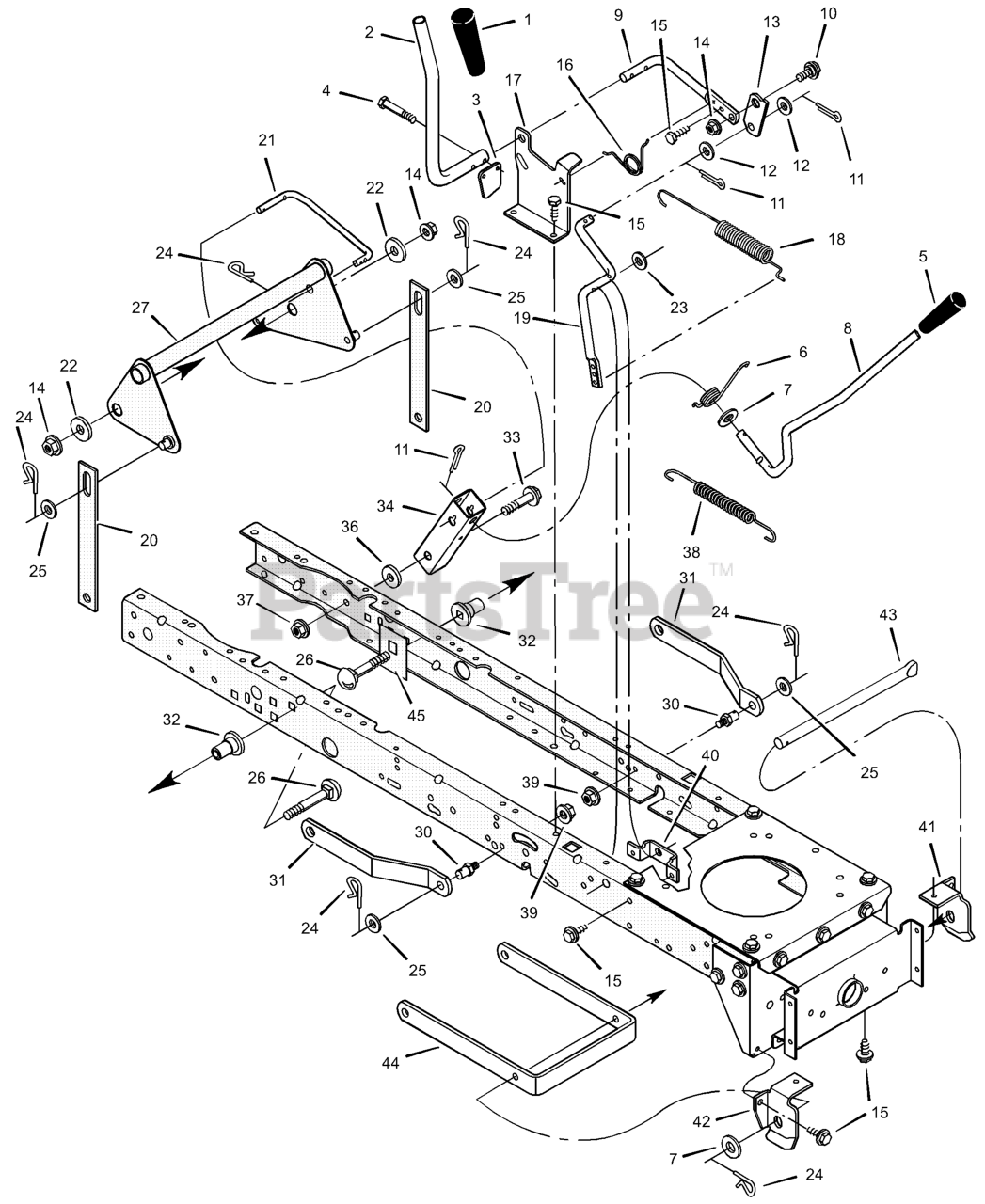

385008x51A - Murray 38" Lawn Tractor (2002) Mower Housing Suspension Parts Diagram

38" Lawn Tractor

Mower Housing Suspension Parts Diagram

  • Title
1

Murray 092698MA

Grip
(Superseded to 1753233YP)

$6.99

$

In Stock, Qty 20+

0

2

Murray 094157 Z

Handle, PTO

$

$

Currently unavailable

3

Murray 094022 Z

Pad, Switch

$

$

Currently unavailable

4

Murray 0025X3MA

Screw, Hex

$4.99

$

Usually ships in 2-12 days

0

5

Murray 092697MA

Grip
(Superseded to 1753233YP)

$6.99

$

In Stock, Qty 20+

0

6

$6.49

$

Usually ships in 2-12 days

0

7

$4.99

$

In Stock, only 2 left!

0

8

Murray 690533MA

Handle, Lift

$40.99

$

In Stock, only 1 left!

0

9

Murray 094017 Z

Lever, PTO

$

$

Currently unavailable

10

Murray 009X39MA

Bolt, Shoulder

$6.49

$

In Stock, Qty 7

0

11

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

12

$4.49

$

Usually ships in 2-12 days

0

13

Murray 094004 Z

Link, PTO

$

$

Currently unavailable

14

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 11

0

15

$

$

Not available

16

$5.49

$

Usually ships in 2-12 days

0

17

Murray 094018E700

Bracket, PTO

$

$

Currently unavailable

18

$10.99

$

Usually ships in 2-12 days

0

19

Murray 690394E700

Crank, PTO

$

$

Currently unavailable

20

Murray 690212E700

Link, Lift

$

$

Currently unavailable

21

Murray 690122E700

Link, Lift Handle

$

$

Currently unavailable

22

$6.49

$

Usually ships in 2-12 days

0

23

$4.49

$

Usually ships in 2-12 days

0

24

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

25

$5.49

$

In Stock, only 2 left!

0

26

Murray 002X85MA

Bolt, Carriage

$3.99

$

Usually ships in 2-12 days

0

27

Murray 1001111E700MA

Lever Assembly, Lift

$

$

Currently unavailable

30

Murray 094067MA

Pin
(Superseded to 704054)

$7.49

$

In Stock, Qty 11

0

31

Murray 094055E700

Bracket, Rear Suspension

$

$

Currently unavailable

32

Murray 690151MA

Spacer, Lifter

$6.99

$

Usually ships in 2-12 days

0

33

Murray 009X53MA

Bolt, Shoulder

$6.99

$

Usually ships in 2-12 days

0

34

Murray 094015E700

Bracket, Pivot

$

$

Currently unavailable

36

$3.99

$

Usually ships in 2-12 days

0

37

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 11

0

38

$15.99

$

Usually ships in 2-12 days

0

39

Murray 015X68MA

Nut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

40

Murray 094005E700

Bracket, PTO

$

$

Not available

41

Murray 094027E700

Hanger, Left Deck

$

$

Currently unavailable

42

Murray 094026E700

Hanger, Right Deck

$

$

Currently unavailable

43

Murray 094158ZMA

Rod, Hanger

$28.99

$

Usually ships in 2-12 days

0

44

Murray 690539E700

Bracket, Suspension

$

$

Currently unavailable

45

Murray 1001098E700

Plate, Stiffening

$

$

Currently unavailable
