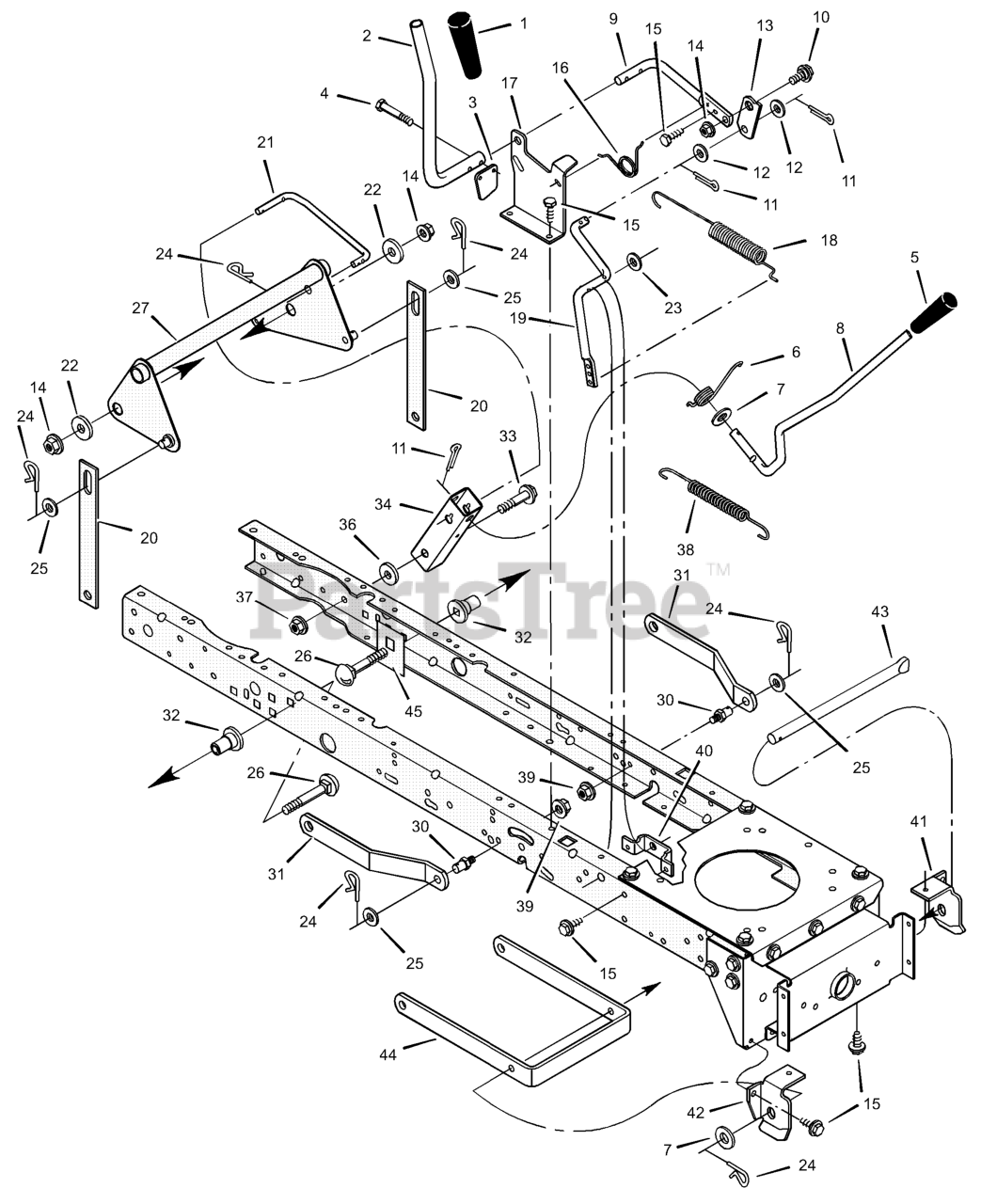

385009x98A - Murray 38" Lawn Tractor (2002) Mower Housing Suspension Parts Diagram

38" Lawn Tractor

Mower Housing Suspension Parts Diagram

  • Title

0010

Murray 20M314-0140-H1

* ENGINE, 14.5TP Snow Series

Note: (Engine Model: 20M314-0140-H1)

$

$

Currently unavailable

0010-10

Murray 797003

GUARD, Muffler

Note: (Used on 11.5TP Models)

$45.99

$

In Stock, only 1 left!

0

0010-10

Murray 796384

GUARD, Muffler

Note: (Use on 14.5TP Models)

$83.99

$

Usually ships in 2-12 days

0

0010-20

Murray 699234

SCREW

Note: (Qty 4 used on 14.5TP Models)

$3.99

$

In Stock, only 4 left!

0

0010-30

Murray 795027

CAP, Fuel

$10.99

$

In Stock, only 2 left!

0

7

Murray 17X103MA

Washer

$4.99

$

In Stock, Qty 7

0

8

Murray 690533MA

Handle, Lift

$40.99

$

In Stock, only 1 left!

0

9

Murray 094017 Z

Lever, PTO

$

$

Currently unavailable

10

Murray 009X39MA

Bolt, Shoulder

$6.49

$

In Stock, Qty 10

0

0100

Murray 1922755SM

WASHER, 3/8
(Superseded to 704128)

Note: (Use on 14.5TP Models)

$4.99

$

In Stock, Qty 10

0

11

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

0105

Murray 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

Note: (Use on 14.5TP Models)

$3.49

$

In Stock, Qty 11

0

12

Murray 017X57MA

Washer

$4.49

$

Usually ships in 2-12 days

0

13

Murray 094004 Z

Link, PTO

$

$

Currently unavailable

0110

Murray 2860768YP

CAPSCREW, Hex Head, 3/8-24 x 1-3/4
(Superseded to 703132)

Note: (Use on 14.5TP Models)

$3.99

$

Usually ships in 2-12 days

0

14

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

15

Murray 26X249MA

Screw

$

$

Not available

16

Murray 166X39MA

Spring

$5.49

$

Usually ships in 2-12 days

0

17

Murray 094018E700

Bracket, PTO

$

$

Currently unavailable

18

Murray 165X118MA

Spring

$10.99

$

Usually ships in 2-12 days

0

19

Murray 690394E700

Crank, PTO

$

$

Currently unavailable

20

Murray 690212E700

Link, Lift

$

$

Currently unavailable

0170

Murray 1739846YP

BRACKET, Idler

$8.99

$

Usually ships in 2-12 days

0

21

Murray 690122E700

Link, Lift Handle

$

$

Currently unavailable

0171

Murray 1931335SM

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 16

0

22

Murray 17X168ZMA

Washer

$6.49

$

Usually ships in 2-12 days

0

0172

Murray 1960684SM

NUT, Hex KEPS, 5/16-18
(Superseded to 703222)

$5.99

$

In Stock, only 2 left!

0

23

Murray 017X57MA

Washer

$4.49

$

Usually ships in 2-12 days

0

0180

Murray 1501065MA

BUSHING, Idler Bracket

$5.49

$

In Stock, Qty 6

0

24

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0190

Murray 165X164MA

SPRING, Extension, Idler

$7.49

$

In Stock, Qty 6

0

25

Murray 017X91MA

Washer

$5.49

$

In Stock, only 2 left!

0

0200

Murray 1502120MA

IDLER, Plastic Ball Bearing

$21.99

$

In Stock, only 1 left!

0

26

Murray 002X85MA

Bolt, Carriage

$3.99

$

Usually ships in 2-12 days

0

27

Murray 1001111E700MA

Lever Assembly, Lift

$

$

Currently unavailable

30

Murray 094067MA

Pin
(Superseded to 704054)

$7.49

$

In Stock, Qty 11

0

36

Murray 17X191MA

Washer

$3.99

$

Usually ships in 2-12 days

0

37

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

42

Murray 094026E700

Hanger, Right Deck

$

$

Currently unavailable

43

Murray 094158ZMA

Rod, Hanger

$28.99

$

In Stock, only 1 left!

0

44

Murray 690539E700

Bracket, Suspension

$

$

Currently unavailable

45

Murray 1001098E700

Plate, Stiffening

$

$

Currently unavailable
