385047x51A - Murray 38" Lawn Tractor (2007) Engine Mount Parts Diagram

38" Lawn Tractor

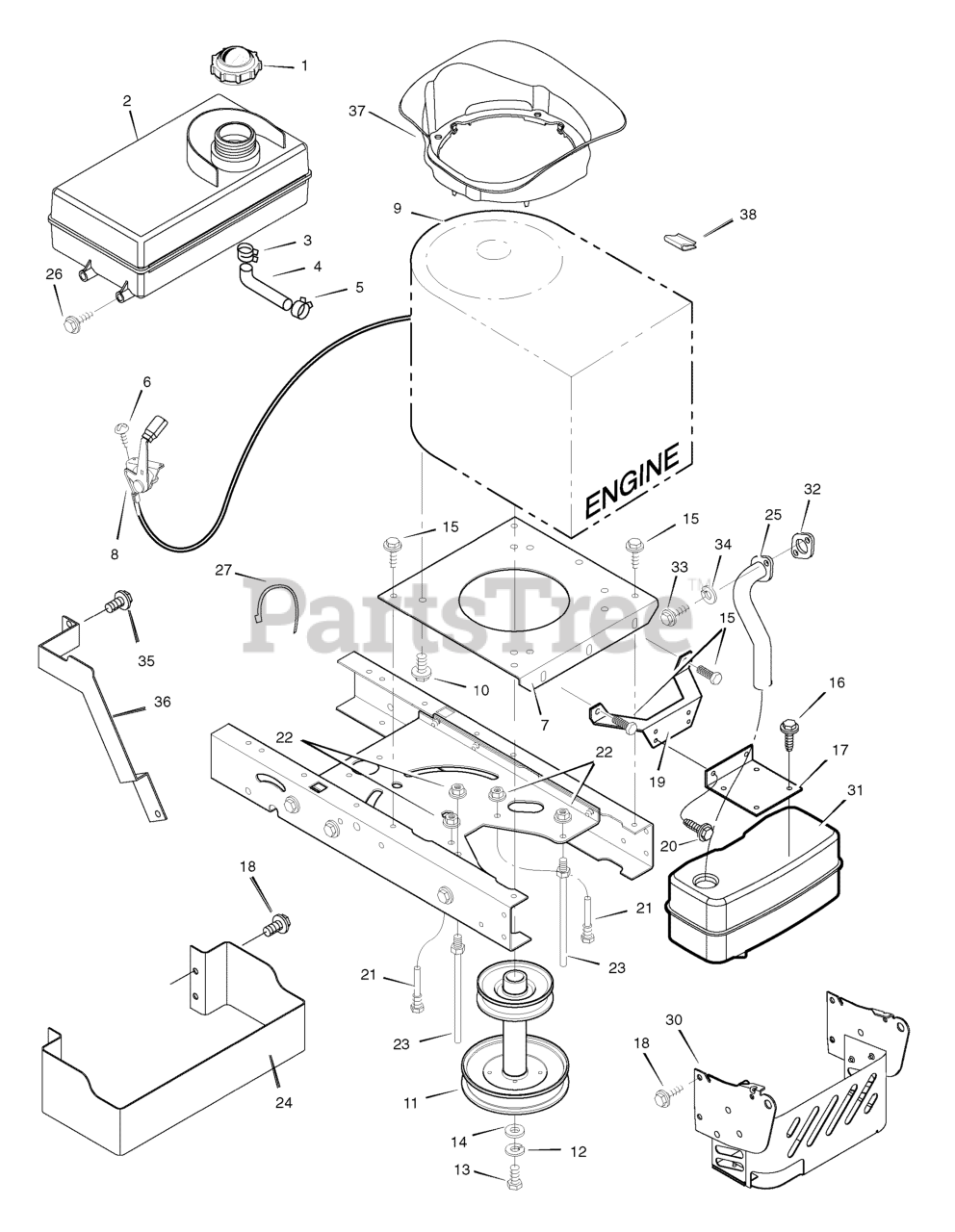

Engine Mount Parts Diagram

  • Title

1

Murray 092317MA

Fuel Cap

Note: (Included with Ref. No. 2)

$10.99

$

In Stock, Qty 12

0

2

Murray 7601092MA

TANK, Fuel 1.4 Gal.

$78.99

$

In Stock, only 2 left!

0

3

Murray 095197MA

Hose Clamp
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

4

Murray 7601033MA

Fuel Line (Must cut to length)

$22.99

$

In Stock, only 1 left!

0

5

Murray 095197MA

Hose Clamp
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

6

Murray 26X201MA

SCREW

$4.49

$

In Stock, only 2 left!

0

7

Murray 094006E701MA

PLATE, Engine

$114.99

$

Usually ships in 2-12 days

0

8

Murray 092371MA

THROTTLE CONTROL

$37.99

$

Usually ships in 2-12 days

0

9

Engine, Briggs & Stratton *

Note: (Model: 2178070142B1)

$

$

Not available

10

Murray 0025X7MA

BOLT, Engine Mount
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

11

Murray 690439MA

STACK PULLEY ASSEMBLY

$64.99

$

In Stock, Qty 6

0

12

Murray 019X35MA

LOCKWASHER

$4.99

$

In Stock, only 2 left!

0

13

Murray 01X140MA

BOLT, Hex

$5.49

$

In Stock, only 1 left!

0

14

Murray 17X170MA

WASHER

$

$

Not available

15

Murray 26X249MA

SCREW

$

$

Not available

16

Murray 26X229MA

SCREW

$4.49

$

In Stock, only 1 left!

0

17

Murray 690538E701MA

BRACKET, Muffler

$11.99

$

Usually ships in 2-12 days

0

18

Murray 26X277MA

SCREW

$4.99

$

Usually ships in 2-12 days

0

19

Murray 690537E701MA

BRACKET, Muffler Mount

$76.99

$

Usually ships in 2-12 days

0

20

Murray 26X213MA

SCREW

$4.49

$

In Stock, only 1 left!

0

21

Murray 094384MA

GUIDE, Belt

$4.49

$

Usually ships in 2-12 days

0

22

Murray 015X79MA

NUT, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

23

Murray 094066MA

GUIDE, Belt

$14.99

$

Usually ships in 2-12 days

0

24

Murray 1740502E701MA

GUARD, Heat Shield
(Superseded to 1740502AMA)

$24.99

$

Usually ships in 2-12 days

0

25

Murray 1001747MA

EXHAUST TUBE, Single

$34.99

$

Usually ships in 2-12 days

0

26

Murray 26X229MA

SCREW

$4.49

$

In Stock, only 1 left!

0

27

Murray 032618MA

TIE, Strap, 5.38 Long

$3.99

$

Usually ships in 2-12 days

0

30

Murray 1740501E701MA

SHIELD, Heat
(Superseded to 1740501AYP)

$125.99

$

Usually ships in 2-12 days

0

31

Murray 094654MA

MUFFLER

$

$

Not available

32

Murray 692236

GASKET, Exhaust

$5.49

$

In Stock, Qty 20+

0

33

Murray 06X103MA

SCREW

$6.49

$

In Stock, only 2 left!

0

34

Murray 018X15MA

WASHER

$3.99

$

In Stock, only 1 left!

0

35

Murray 06X104MA

BOLT, Washer Hex Head

$4.49

$

Usually ships in 2-12 days

0

36

Murray 1740504E701MA

GUARD, Exhaust Pipe
(Superseded to 1740504AMA)

$25.99

$

Usually ships in 2-12 days

0

37

Murray 1740503MA

PLENUM, X1 M28/31

$39.99

$

Usually ships in 2-12 days

0

38

Murray 055939MA

CLIP, Wire Adhesive

$4.99

$

Usually ships in 2-12 days

0
