38510 (624) - Toro 24" Power Shift Snow Thrower (SN: 009000001 - 009999999) (1989) SNOW CAB ASSEMBLY NO. 66-6200 (OPTIONAL) Parts Diagram

24" Power Shift Snow Thrower

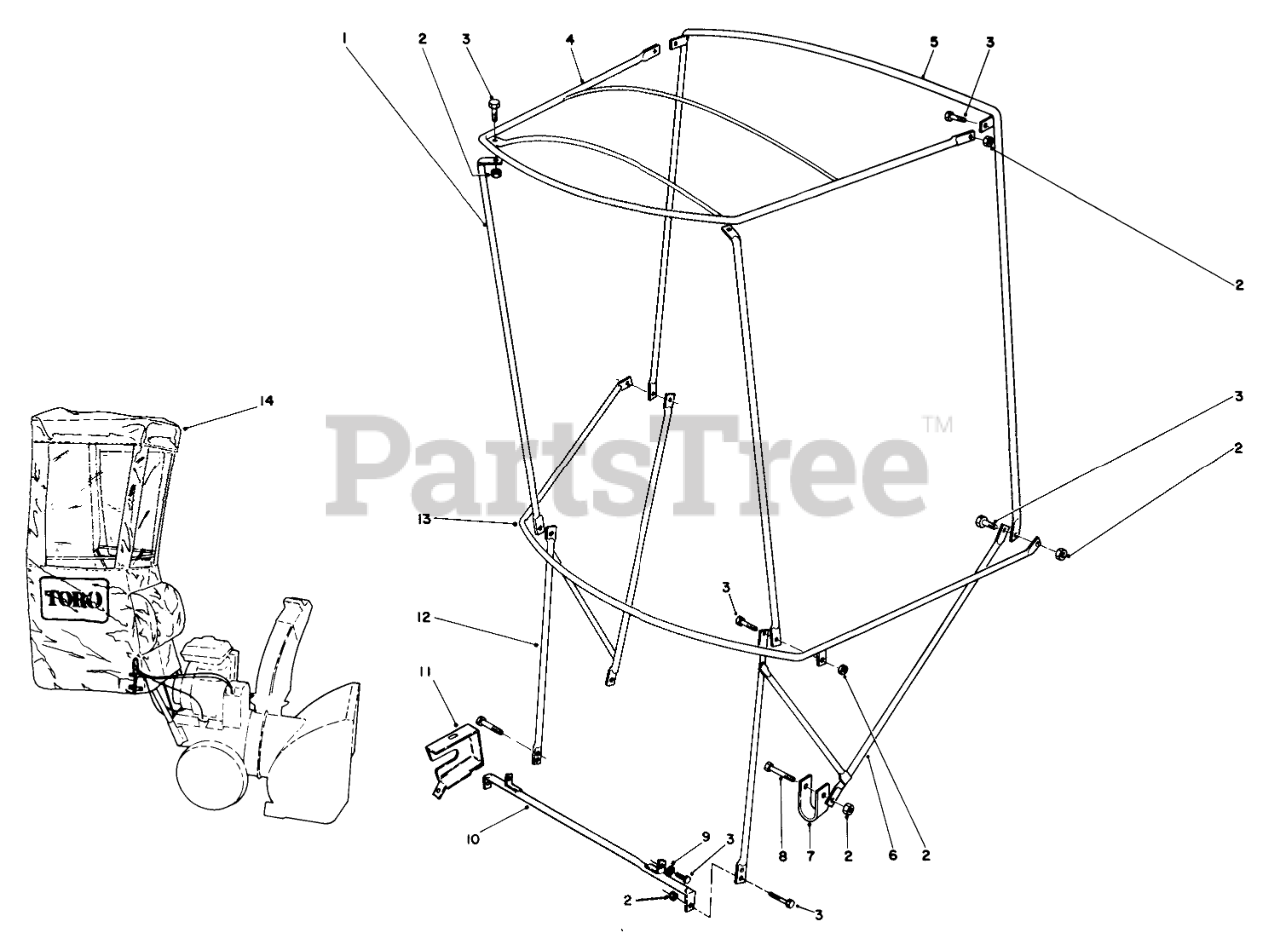

SNOW CAB ASSEMBLY NO. 66-6200 (OPTIONAL) Parts Diagram

  • Title

1

Toro 12-8040

POST

$

$

Not available

2

Toro 32153-4

NUT-HEX, SIDE DEFORM

$0.99

$

Usually ships in 3-6 days

0

3

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 12-8010

FRAME-TOP

$

$

Not available

5

Toro 12-8030

BOW-VERTICAL, REAR

$

$

Not available

6

Toro 66-6230

Bracket-LH

$

$

Not available

7

Toro 66-6240

CLAMP

$

$

Not available

8

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 3256-58

WASHER-FLAT
(Superseded to 3256-55)

$5.49

$

In Stock, only 2 left!

0

10

Toro 66-6210

Bracket-Base

$

$

Not available

11

Toro 63-3330

COVER-LOCK, LEVER

$

$

Not available

12

Toro 66-6220

BRACKET-RH

$171.99

$

Usually ships in 3-6 days

0

13

Toro 12-8020

BOW-CURVED

$

$

Not available

14

Cover-Vinyl

Note: Not serviced separately

$

$

Not available
