38516 (CCR 2450) - Toro 24" GTS Snow Thrower (SN: 220000001 - 220999999) (2002) Upper Shroud And Control Panel Assembly Parts Diagram

24" GTS Snow Thrower

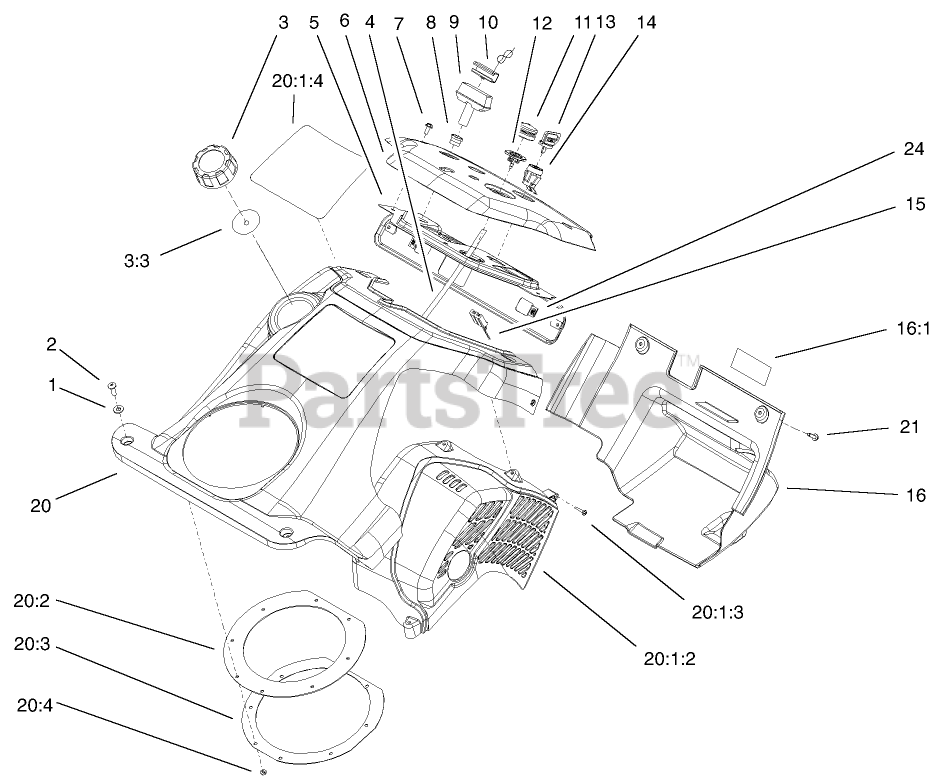

Upper Shroud And Control Panel Assembly Parts Diagram

  • Title

1

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

2

Toro 3250-32

SCREW-PPH

$0.99

$

In Stock, Qty 14

0

3

Toro 55-3573

See Supercession: 104-4133
(Superseded to 104-4133)

$15.99

$

In Stock, Qty 6

0

3:3

Toro 56-6110

See Supercession: 55-3570
(Superseded to 55-3570)

$15.99

$

In Stock, only 2 left!

0

4

Toro 98-1372

HOSE-PRIMER

$5.99

$

In Stock, Qty 20+

0

5

Toro 105-1999-03

PANEL-SUPPORT, CONTROL

$59.99

$

Usually ships in 3-6 days

0

6

Toro 105-3521

PANEL-CONTROL

$131.99

$

Usually ships in 3-6 days

0

6

Toro 105-3522

DISCONTINUED

$

$

Not available

6

Toro 105-3523

PANEL-CONTROL

$

$

Not available

6

Toro 105-3524

PANEL-CONTROL

$

$

Not available

7

Toro 32144-112

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

8

Toro 55-9410

GUIDE-ROPE, STARTER

$18.99

$

Usually ships in 3-6 days

0

9

Toro 612825

See Supercession: 81-1630
(Superseded to 81-1630)

$

$

Not available

10

Toro 612824

CLIP-STARTER

$4.49

$

In Stock, Qty 9

0

11

Toro 66-7460

BULB-PRIMER

$7.49

$

In Stock, Qty 20+

0

12

Toro 44-2750

BODY-PRIMER

$10.99

$

In Stock, Qty 20+

0

13

Toro 63-8360

KEY-IGNITION

$6.49

$

In Stock, Qty 20+

0

14

Toro 40-5940

SWITCH

$17.99

$

In Stock, only 2 left!

0

15

Toro 218-532

CONNECTOR-BODY

$16.99

$

Usually ships in 3-6 days

0

16

Toro 105-1964

See Supercession: 108-7343
(Superseded to 108-7343)

$

$

Not available

16

Toro 105-1995

See Supercession: 108-7338
(Superseded to 108-7338)

$

$

Not available

16

Toro 105-1957

See Supercession: 108-7338
(Superseded to 108-7338)

$

$

Not available

16:1

Toro 61-4790

DECAL

$

$

Not available

20

Toro 105-1989

See Supercession: 108-5096
(Superseded to 108-5096)

$403.99

$

Usually ships in 3-6 days

0

20

Toro 105-1988

See Supercession: 110-2187
(Superseded to 110-2187)

$

$

Not available

20:1

Upper Shroud ASM R, 2450 (only on: 38515, 38535)

Note: Not serviced separately

$

$

Not available

20:1

Upper Shroud ASM E, 2450 (only on: 38516, 38536)

Note: Not serviced separately

$

$

Not available

20:1:2

Toro 105-1956

See Supercession: 108-7333
(Superseded to 108-7333)

$

$

Not available

20:1:3

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

20:1:4

Toro 105-3509

DISCONTINUED

$

$

Not available

20:1:4

Toro 105-3508

DECAL-UPPER SHROUD R, 2450

$

$

Not available

20:2

Toro 55-9260

See Supercession: 105-3543
(Superseded to 105-3543)

$18.99

$

In Stock, only 4 left!

0

20:3

Toro 55-9540-03

RETAINER-SEAL, CHUTE

$24.99

$

In Stock, only 3 left!

0

20:4

Toro 3290-474

PALNUT

$0.99

$

In Stock, only 1 left!

0

21

Toro 32144-112

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

24

Toro 100-9889

NUT-SPEED

$7.99

$

Usually ships in 3-6 days

0
