38516x53A - Murray 38" Lawn Tractor (2000) Chassis & Hood Assembly Parts Diagram

38" Lawn Tractor

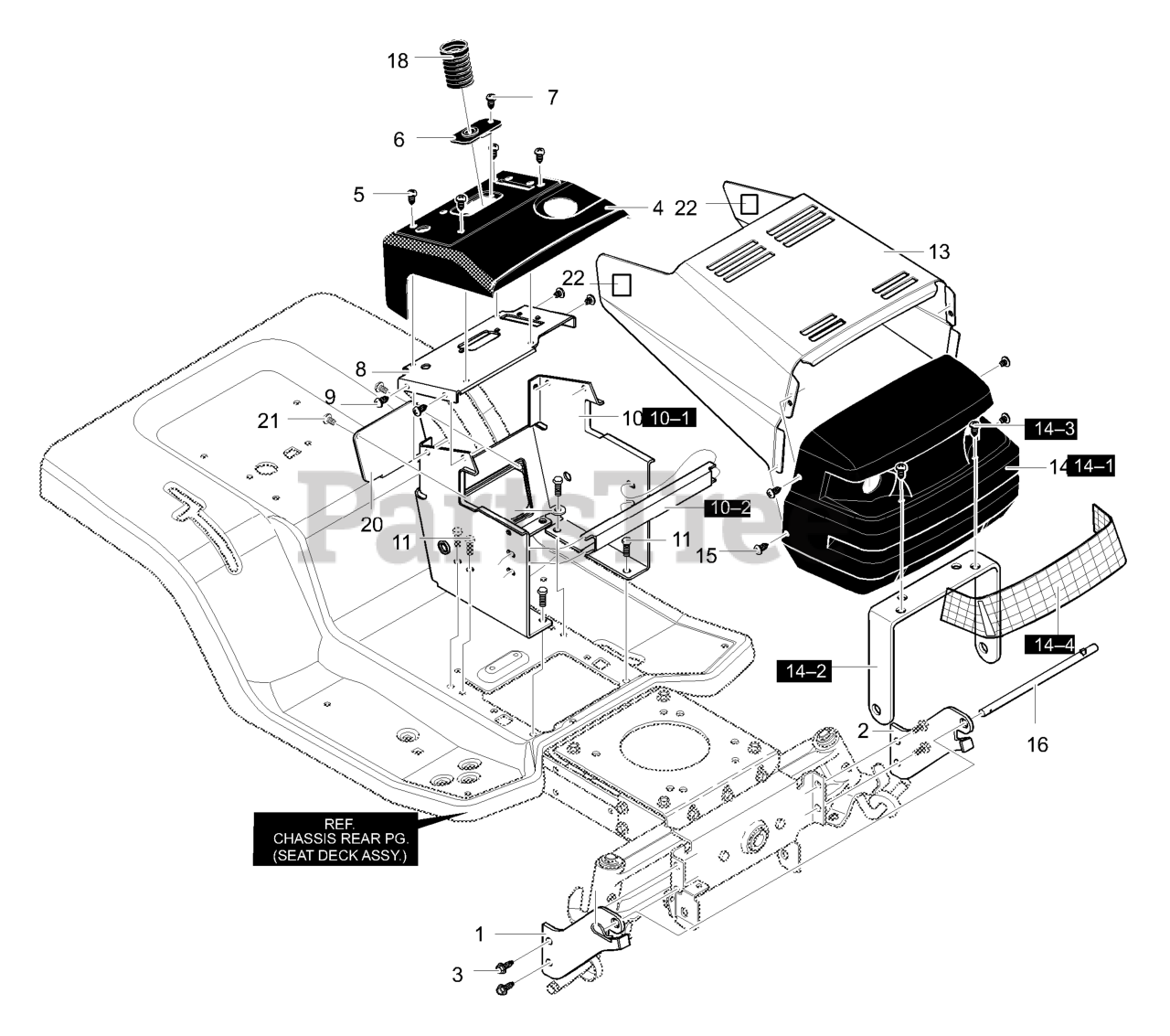

Chassis & Hood Assembly Parts Diagram

  • Title

1

Murray 690543-853

BRACKET, RIGHT GRILLE

$

$

Currently unavailable

2

Murray 690544-853

BRACKET, LEFT GRILLE

$

$

Currently unavailable

3

Murray 711606MA

SCREW

$7.99

$

In Stock, only 2 left!

0

4

Murray 94842

DASH

$

$

Currently unavailable

5

Murray 711629

SCREW

$

$

Not available

6

Murray 094214MA

BEARING

$4.99

$

Usually ships in 2-12 days

0

7

Murray 711762

SCREW

$

$

Currently unavailable

8

Murray 94211-819

PLATE, DASH PANEL

$

$

Currently unavailable

9

Murray 711629

SCREW

$

$

Not available

19

Murray 712063

WASHER

$9.49

$

Usually ships in 2-12 days

0

10

Murray 690104-819

LOWER CONSOLE SUPPORT

$

$

Currently unavailable

11

Murray 711606MA

SCREW

$7.99

$

In Stock, only 2 left!

0

13

Murray 94972-819

HOOD

$

$

Currently unavailable

14

Murray 092367MA

ASSEMBLY, GRILLE

$302.99

$

Usually ships in 2-12 days

0

15

Murray 711679

SCREW

$23.99

$

Usually ships in 2-12 days

0

16

Murray 690093

ROD, HOOD PIVOT

$

$

Not available

17

Murray 711676

PIN, HAIR

$

$

Currently unavailable

18

Murray 054789MA

BELLOWS, STEERING

$9.99

$

Usually ships in 2-12 days

0

20

Murray 93007-819

ACCESS PANEL

$

$

Currently unavailable

21

Murray 711629

SCREW

$

$

Not available

22

Murray 318197

PAD, ADHESIVE

$1.99

$

Usually ships in 2-12 days

0

--

Murray F-000800J

BOOK, INSTRUCTION

$

$

Currently unavailable
