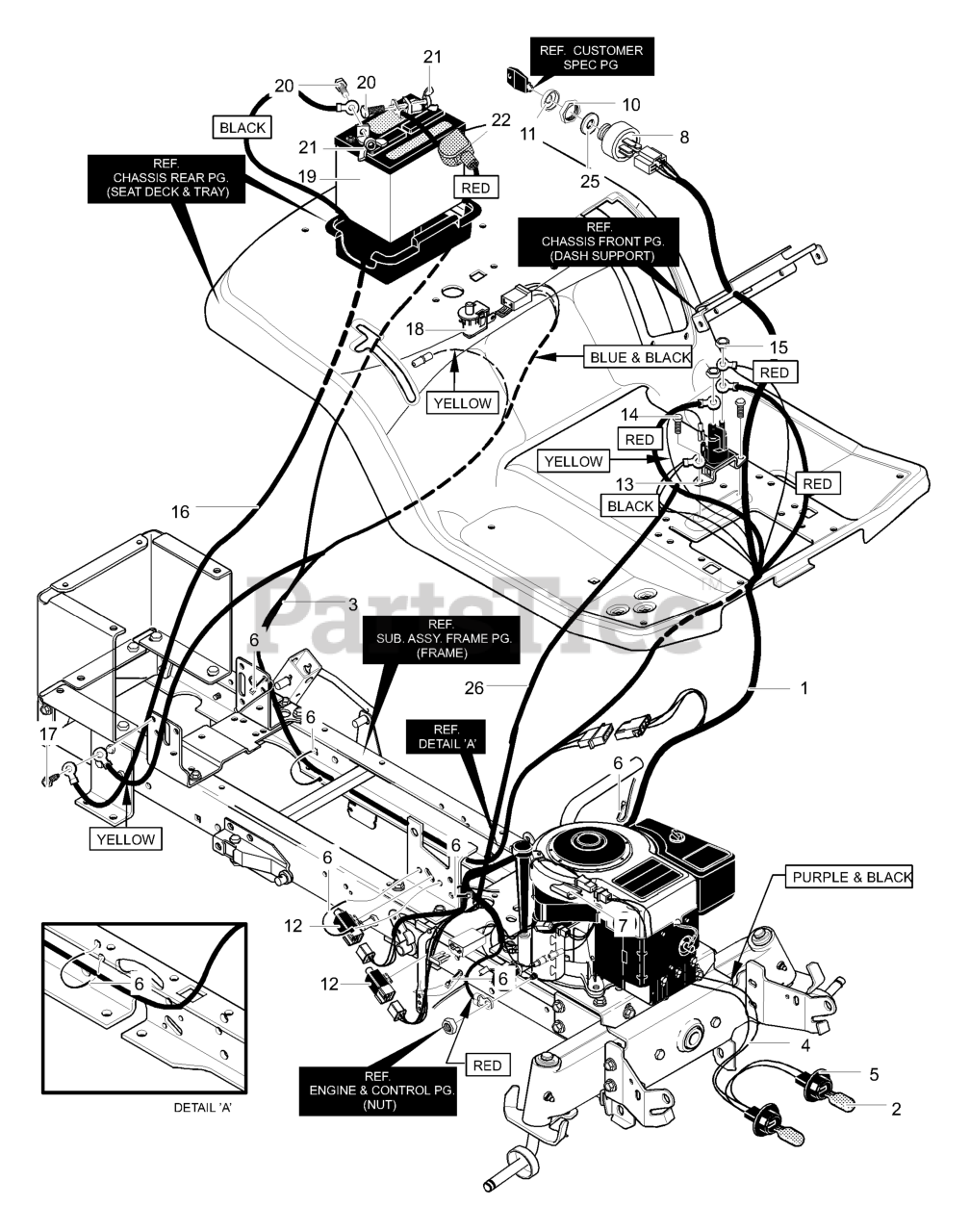

38516x53A - Murray 38" Lawn Tractor (2000) Electrical Assembly Parts Diagram

38" Lawn Tractor

Electrical Assembly Parts Diagram

  • Title

1

Murray 250X86MA

HARNESS
(Superseded to 776170MA)

$185.99

$

Usually ships in 2-12 days

0

2

Murray 090084MA

BULB, LIGHT
(Superseded to 1677371SM)

$30.99

$

In Stock, only 1 left!

0

3

Murray 340530

WIRE HARNESS, REAR

$

$

Currently unavailable

4

Murray 340513

WIRE HARNESS, HEADLIGHTS

$

$

Currently unavailable

5

Murray 092372

SOCKET, LAMP

$7.99

$

In Stock, Qty 11

0

6

Murray 57444

TIE, CABLE

$

$

Not available

6

Murray 57444

TIE, CABLE

$

$

Not available

7

Murray 055939MA

WIRE CLIP, ADHESIVE

$4.99

$

Usually ships in 2-12 days

0

8

Murray 092377MA

SWITCH, IGNITION

$24.99

$

In Stock, only 1 left!

0

10

Murray 091489MA

NUT
(Superseded to 847144)

$10.99

$

Usually ships in 2-12 days

0

11

Murray 091488

BOOT, SWITCH
(Superseded to 091488MA)

$4.99

$

In Stock, only 4 left!

0

12

Murray 094136MA

SWITCH, LIMIT

$12.99

$

In Stock, Qty 5

0

13

Murray 094613

SOLENOID

$27.99

$

In Stock, Qty 6

0

14

Murray 711619

SCREW

$1.99

$

Usually ships in 2-12 days

0

15

Murray 711632

NUT

$

$

Currently unavailable

16

Murray 710228

WIRE, GROUND

$47.99

$

In Stock, only 3 left!

0

17

Murray 711760

SCREW

$

$

Currently unavailable

18

Murray 094159MA

SWITCH, SEAT
(Superseded to 7023354YP)

$12.99

$

Usually ships in 2-12 days

0

19

Murray 092739

BATTERY

$

$

Currently unavailable

20

Murray 711680

BOLT
(Superseded to 711682)

$7.49

$

In Stock, only 1 left!

0

21

Murray 711636

WINGNUT

$

$

Not available

22

Murray 335417

BOOT, BATTERY

$5.49

$

Usually ships in 2-12 days

0

25

Murray 313683

WASHER
(Superseded to 313683MA)

$4.49

$

Usually ships in 2-12 days

0

26

Murray 711579

WIRE, SOLENOID

$

$

Currently unavailable
