38518 (CCR 3650) - Toro 20" GTS Snow Thrower (SN: 260010001 - 260999999) (2006) SHROUD AND CONTROL PANEL ASSEMBLY Parts Diagram

20" GTS Snow Thrower

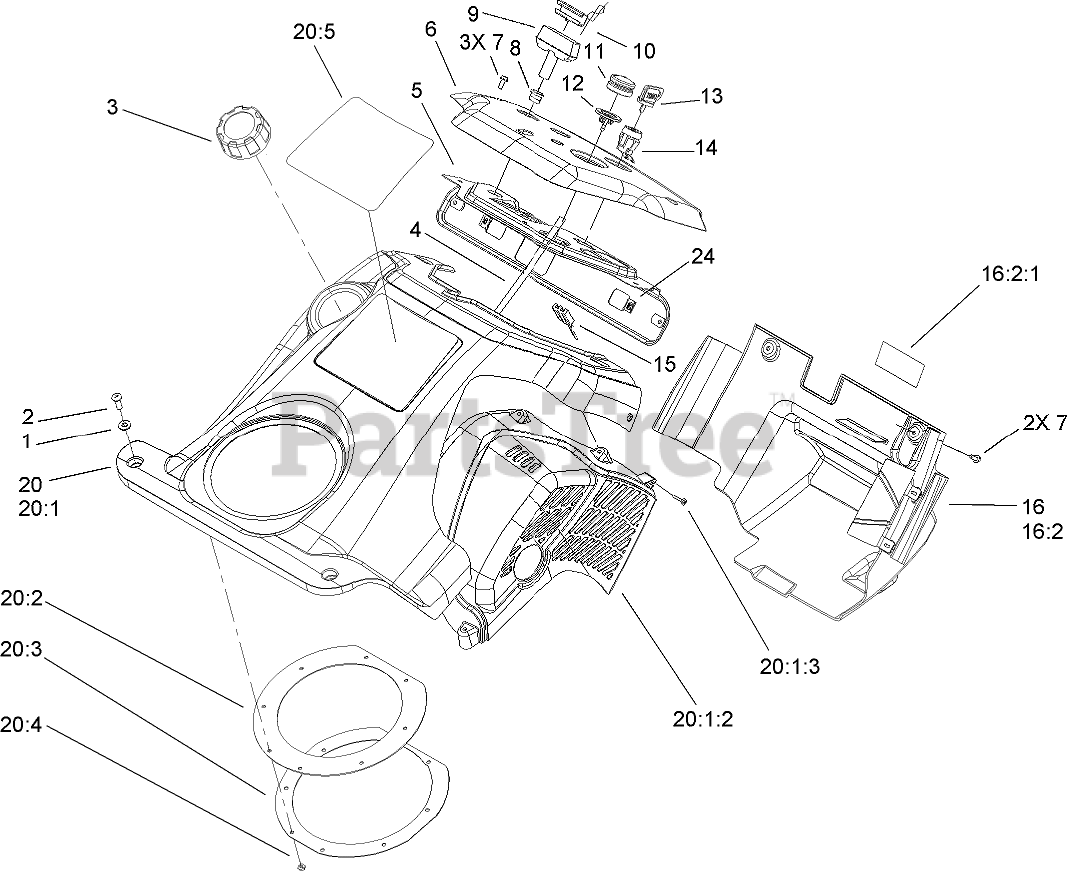

SHROUD AND CONTROL PANEL ASSEMBLY Parts Diagram

  • Title

1

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 19

0

2

Toro 3250-32

SCREW-PPH

$0.99

$

In Stock, Qty 14

0

3

Toro 104-4133

GAS CAP ASM

$15.99

$

In Stock, Qty 6

0

4

Toro 98-1372

HOSE-PRIMER

$5.99

$

In Stock, Qty 20+

0

5

Toro 105-1999-03

PANEL-SUPPORT, CONTROL

$59.99

$

Usually ships in 3-6 days

0

6

Toro 105-1954

PANEL-CONTROL

$

$

Not available

7

Toro 32144-112

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

8

Toro 55-9410

GUIDE-ROPE, STARTER

$18.99

$

Usually ships in 3-6 days

0

9

Toro 612825

HANDLE-START
(Superseded to 81-1630)

$

$

Not available

10

Toro 612824

CLIP-STARTER

$4.49

$

In Stock, Qty 9

0

11

Toro 66-7460

BULB-PRIMER

$7.49

$

In Stock, Qty 20+

0

12

Toro 44-2750

BODY-PRIMER

$10.99

$

In Stock, Qty 20+

0

13

Toro 63-8360

KEY-IGNITION

$6.49

$

In Stock, Qty 20+

0

14

Toro 40-5940

SWITCH

$17.99

$

In Stock, only 3 left!

0

15

Toro 218-532

CONNECTOR-BODY

$16.99

$

Usually ships in 3-6 days

0

16

Toro 108-7339

LOWER SHROUD AND BAFFLE ASM

$

$

Not available

16:2

SHROUD-LOWER

Note: Not serviced separately

$

$

Not available

16:2:1

Toro 61-4790

DECAL

$

$

Not available

20

Toro 108-7348

UPPER SHROUD ASM
(Superseded to 110-3401)

$

$

Not available

20:1

SHROUD-UPPER

Note: Not serviced separately

$

$

Not available

20:1:2

Toro 108-7333

SHIELD-HEAT

$

$

Not available

20:1:3

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

20:2

Toro 105-3543

Seal-Chute

$18.99

$

In Stock, only 4 left!

0

20:3

Toro 55-9540-03

RETAINER-SEAL, CHUTE

$24.99

$

In Stock, only 3 left!

0

20:4

Toro 3290-474

PALNUT

$0.99

$

In Stock, only 1 left!

0

20:5

Toro 108-5090

DECAL

$

$

Not available

24

Toro 100-9889

NUT-SPEED

$7.99

$

Usually ships in 3-6 days

0
