38518x58C - Murray 38" Lawn Tractor (2001) Steering Parts Diagram

38" Lawn Tractor

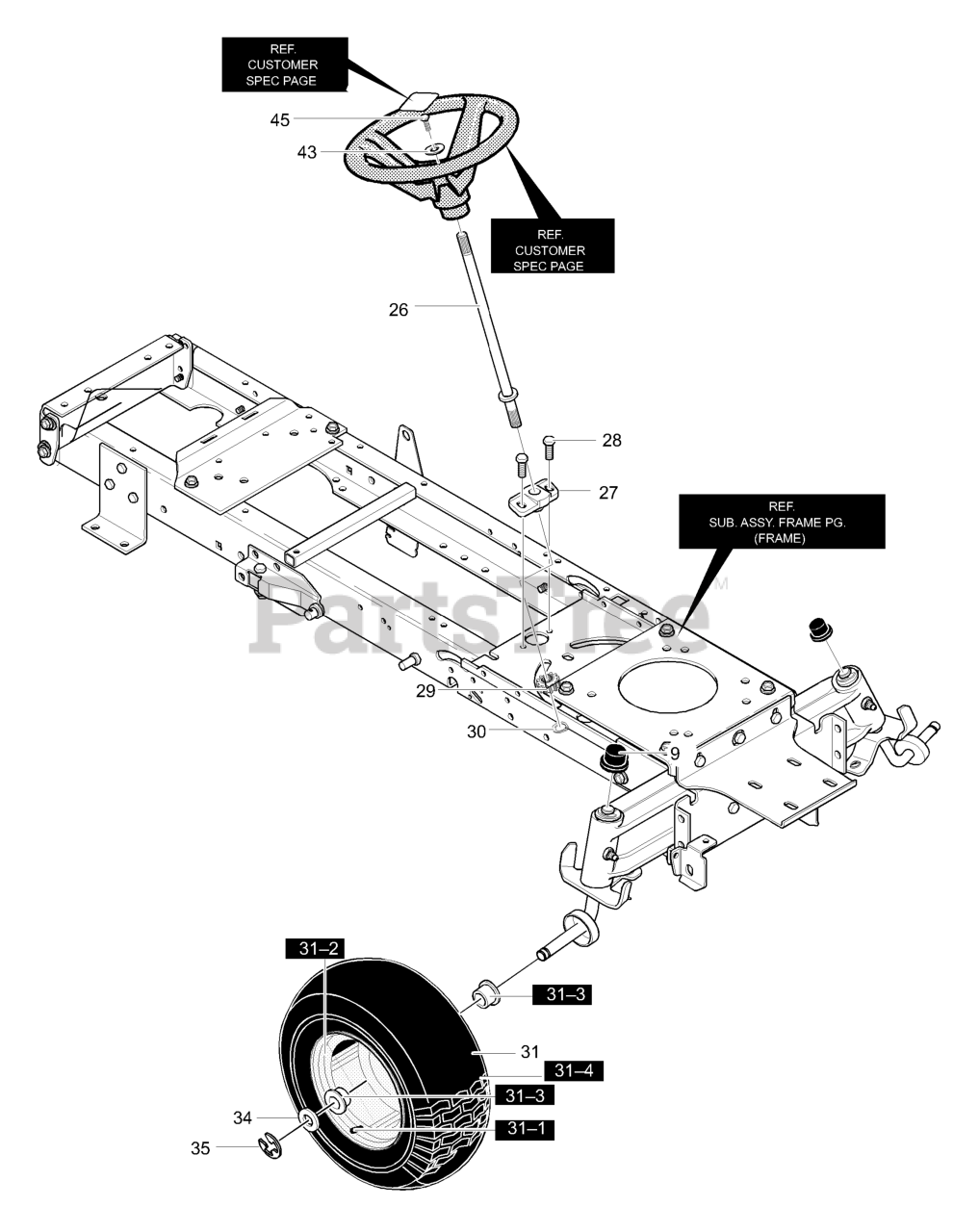

Steering Parts Diagram

  • Title

9

Murray 094618MA

Dust Hub Cap

$5.99

$

In Stock, Qty 20+

0

26

Murray 094520

Shaft, Steering

$64.99

$

Usually ships in 2-12 days

0

27

Murray 094124MA

Bearing-Lower

$15.99

$

In Stock, Qty 5

0

28

Murray 711606MA

Screw, 5/16-18 x 0.75

$7.99

$

In Stock, only 2 left!

0

29

Murray 094122

Gear, Pinion

$

$

Not available

30

Murray 710102

Retaining Ring

$16.99

$

Usually ships in 2-12 days

0

31

Murray 692641

Tire & Rim

$

$

Currently unavailable

31-1

Murray 338512

Valve Stem

$

$

Not available

31-2

Murray 338517MA

Rim

$96.99

$

In Stock, only 1 left!

0

31-3

Murray 338513

Bearing

$

$

Not available

31-4

Murray 338514

Tire

$

$

Currently unavailable

34

Murray 711758

Flatwasher

$27.99

$

In Stock, only 1 left!

0

35

Murray 0011X3MA

E-Ring

$5.99

$

In Stock, Qty 17

0

43

Murray 711663MA

Flat washer

$3.49

$

Usually ships in 2-12 days

0

45

Murray 711719

Screw 1/4-20x.75

$1.49

$

Usually ships in 2-12 days

0

--

Murray 094618MA

Hub Cap

$5.99

$

In Stock, Qty 20+

0
