38519x58B - Murray 38" Lawn Tractor (2000) Motion Drive Parts Diagram

38" Lawn Tractor

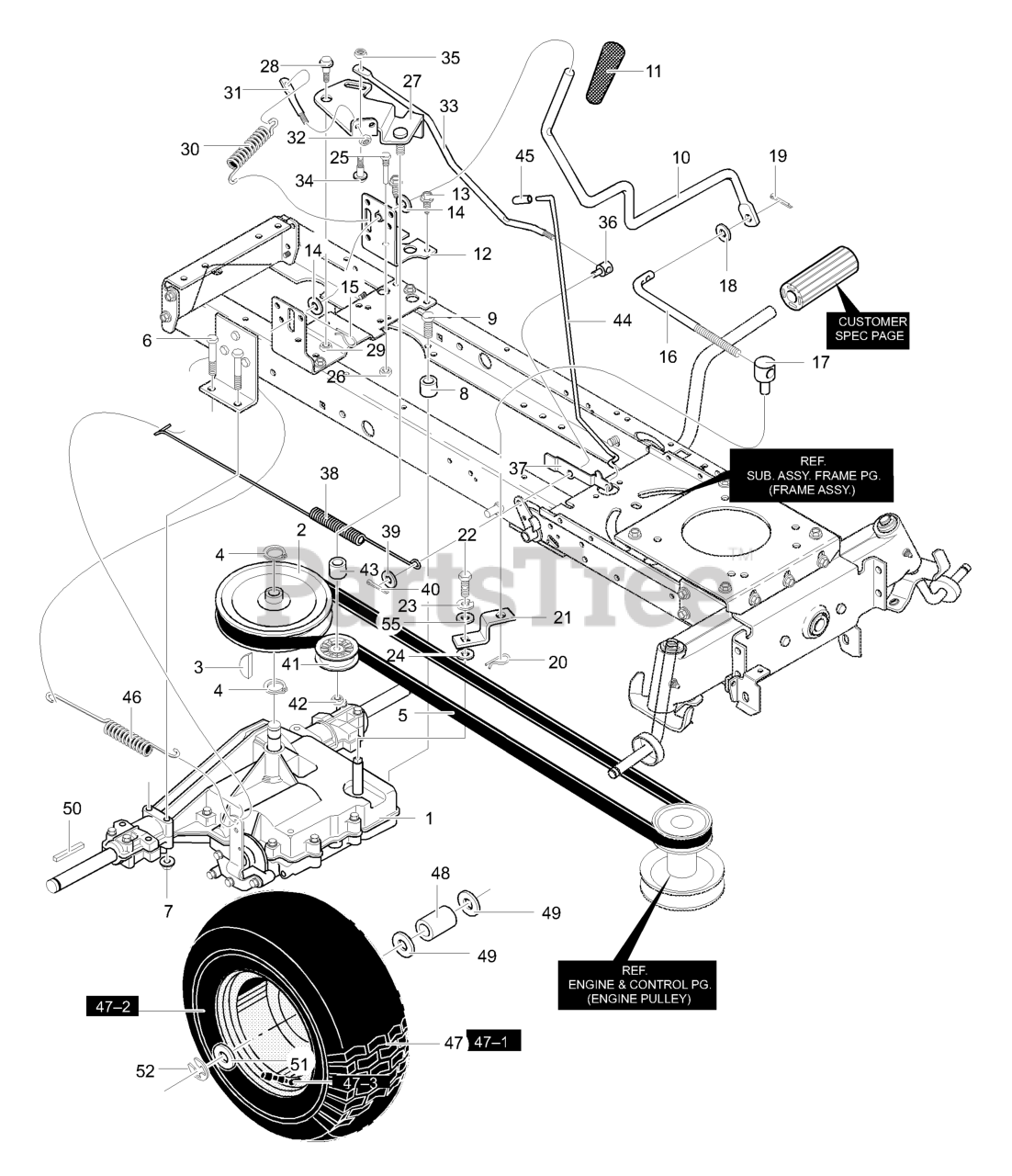

Motion Drive Parts Diagram

  • Title

1

Transaxle, MST205 **

$

$

Not available

2

Murray 095094MA

Pulley, 8.81 Dia

$55.99

$

Usually ships in 2-12 days

0

3

Murray 020697MA

Woodruff Key #9

$3.99

$

In Stock, only 1 left!

0

4

Murray 0011X7MA

Ring-Snap

$3.99

$

In Stock, Qty 7

0

5

Murray 710341

Belt, V

$

$

Currently unavailable

6

Murray 711669

Screw, 5/16-18 x 2.50

$1.99

$

Usually ships in 2-12 days

0

7

Murray 711634MA

Nut, 5/16-18 Wdfllk

$3.99

$

Usually ships in 2-12 days

0

8

Murray 094132MA

Spacer, Transaxle

$16.99

$

In Stock, only 1 left!

0

9

Murray 711605

Screw, 5/16-18 x 2.00

$30.99

$

Usually ships in 2-12 days

0

10

Murray 690157

Shifter Lever

$

$

Currently unavailable

11

Murray 94929

Grip
(Superseded to 691693)

$3.99

$

In Stock, only 2 left!

0

12

Murray 94034-821

Bracket, Shift Pivot

$

$

Currently unavailable

13

Murray 711606MA

Screw, 5/16-18 x 0.75

$7.99

$

In Stock, only 2 left!

0

14

Murray 711615MA

Flat washer

$1.99

$

Usually ships in 2-12 days

0

15

Murray 711676

Hair Pin

$

$

Currently unavailable

16

Murray 95289

Link, Shift

$

$

Not available

17

Murray 711591

Adjusting Nut

$335.99

$

Usually ships in 2-12 days

0

18

Murray 711623

Flat washer

$1.99

$

Usually ships in 2-12 days

0

19

Murray 071081

Cotter Pin

$3.49

$

Usually ships in 2-12 days

0

20

Murray 711682MA

Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

21

Murray 95286

Yoke-Shift

$3.99

$

Usually ships in 2-12 days

0

22

Murray 01X145MA

Screw, 1/4-28x.75

$4.49

$

Usually ships in 2-12 days

0

23

Murray 710249

Washer

$

$

Currently unavailable

24

Murray 17X148MA

Washer, .38 SQ

$3.99

$

Usually ships in 2-12 days

0

25

Murray 711745

Screw Guide

$

$

Currently unavailable

26

Murray 710026

Nut, 5/16-18 Hexwdfllk

$

$

Not available

27

Murray 690173ZMA

ARM, Idler

$28.99

$

Usually ships in 2-12 days

0

28

Murray 711613MA

Bolt, HHSH 3/8-16

$1.99

$

Usually ships in 2-12 days

0

29

Murray 711622

Nut, 3/8-16 Hwdfllk Mack

$

$

Currently unavailable

30

Murray 710334

Spring, Extension

$87.99

$

In Stock, only 1 left!

0

31

Murray 95288

Stud-Spring

$1.99

$

Usually ships in 2-12 days

0

32

Murray 710026

Nut, 5/16-18 Hexwdfllk Whiz

$

$

Not available

33

Murray 95287

Rod, Clutch Switch

$

$

Not available

34

Murray 711646

Bolt, HHSH 1/4-20x.5

$1.49

$

Usually ships in 2-12 days

0

35

Murray 711643

Nut, 1/4-20 Wdfllk

$1.49

$

Usually ships in 2-12 days

0

36

Murray 711596

Nut, Adjusting

$

$

Currently unavailable

37

Murray 95290

Latch, Park Brake

$3.99

$

Usually ships in 2-12 days

0

38

Murray 710333

Extension Spring

$67.99

$

Usually ships in 2-12 days

0

39

Murray 711623

Flat washer

$1.99

$

Usually ships in 2-12 days

0

40

Murray 071081

Cotter Pin

$3.49

$

Usually ships in 2-12 days

0

41

Murray 690409MA

Idler Pulley

$19.99

$

In Stock, only 4 left!

0

42

Murray 711920MA

Nut, 3/8-16 Hwdfllk Mack

$4.49

$

Usually ships in 2-12 days

0

43

Murray 690369MA

Spacer 1/2 to 17MM

$5.99

$

In Stock, only 4 left!

0

44

Murray 690046MA

Park Brake Rod

$8.99

$

Usually ships in 2-12 days

0

45

Murray 091079MA

Grip

$3.49

$

Usually ships in 2-12 days

0

46

Murray 710353

Spring, Tension

$8.99

$

Usually ships in 2-12 days

0

47

Murray 338169

Tire & Rim

$95.99

$

Usually ships in 2-12 days

0

47-1

Murray 338512

Valve Stem

$

$

Not available

47-2

Murray 338524

Rim

$

$

Currently unavailable

47-3

Murray 338548

Tire

$

$

Currently unavailable

48

Murray 95274MA

Spacer .87x1.78

$46.99

$

Usually ships in 2-12 days

0

49

Murray 711648MA

Flat washer

$1.99

$

Usually ships in 2-12 days

0

50

Murray 021553MA

Square Key

$4.99

$

In Stock, Qty 6

0

51

Murray 711758

Flat washer

$26.99

$

In Stock, only 1 left!

0

52

Murray 0011X3MA

E Ring

$5.49

$

In Stock, Qty 17

0

55

Murray 710657

Flat washer

$65.99

$

Usually ships in 2-12 days

0

--

Murray 094618MA

Hubcap

$5.99

$

In Stock, Qty 20+

0
