38519x58C - Murray 38" Lawn Tractor (2001) Electrical Assembly Parts Diagram

38" Lawn Tractor

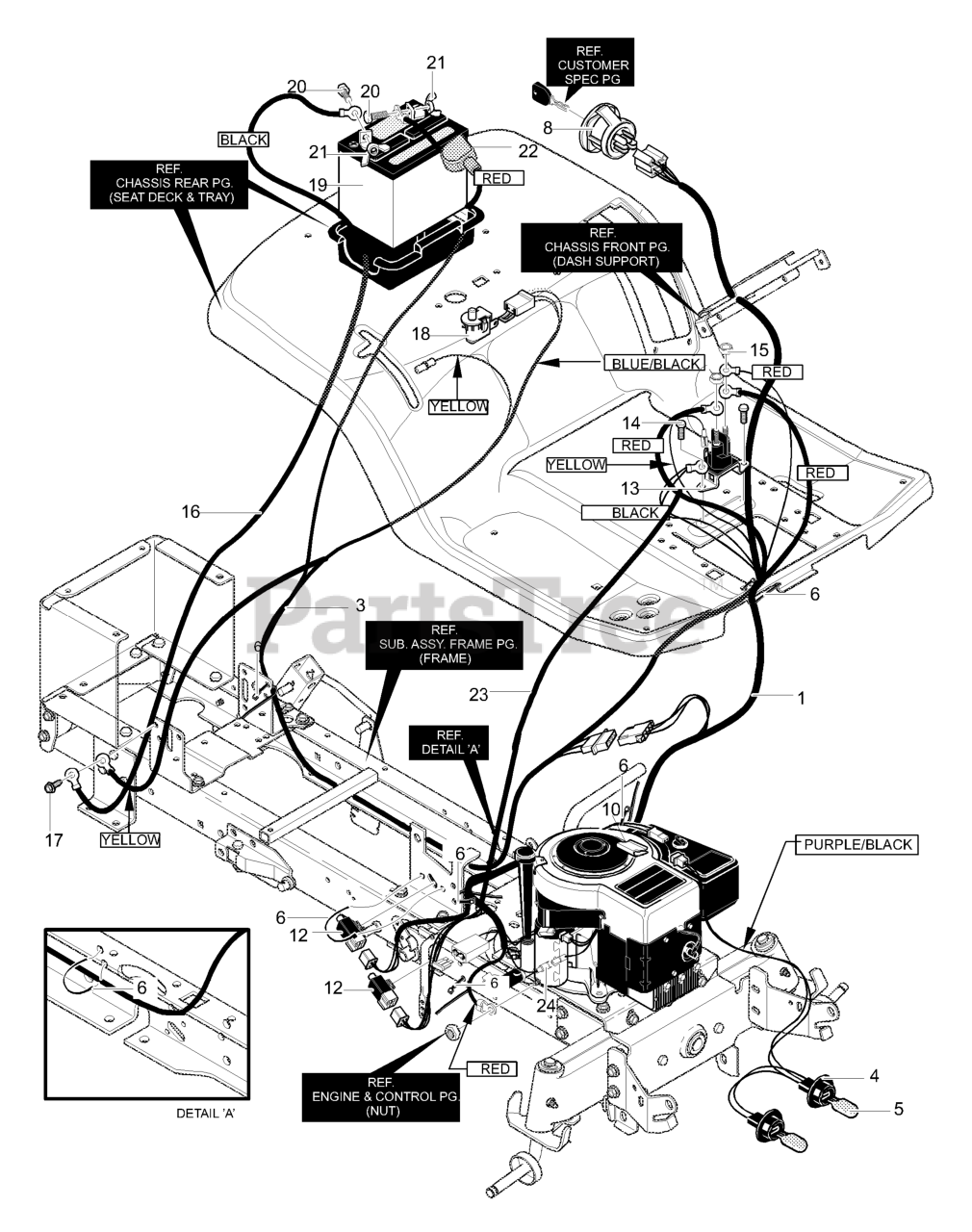

Electrical Assembly Parts Diagram

  • Title

1

Murray 95201

Wire Harness

$37.99

$

Usually ships in 2-12 days

0

3

Murray 340530

Wire Harness, Rear

$

$

Currently unavailable

4

Murray 94103

Wire Harness for Headlights

$

$

Currently unavailable

5

Murray 52572

Bulb, Headlamp
(Superseded to 52572GS)

$

$

Not available

6

Murray 57444

Cable Tie

$

$

Not available

8

Murray 094762

Switch, Ignition

$25.99

$

Usually ships in 2-12 days

0

10

Murray 055939MA

Wire Clip, Adhesive

$4.99

$

Usually ships in 2-12 days

0

12

Murray 094136MA

Switch, Limit

$13.99

$

In Stock, only 4 left!

0

13

Murray 094613

Solenoid

$25.99

$

In Stock, Qty 10

0

14

Murray 711619

Screw 1/4x.50

$1.99

$

Usually ships in 2-12 days

0

15

Murray 711632

Nut, 1/4-20

$

$

Currently unavailable

16

Murray 710228

Ground Wire

$52.99

$

In Stock, only 1 left!

0

17

Murray 711760

Screw, 1/4x.75

$

$

Currently unavailable

18

Murray 094159MA

Seat Switch
(Superseded to 7023354YP)

$12.99

$

In Stock, Qty 20+

0

19

Murray 092739

Battery 5 Plate

$

$

Currently unavailable

20

Murray 711680

Bolt, 1/4-20x.63
(Superseded to 711682)

$7.49

$

In Stock, only 1 left!

0

21

Murray 711636

Wing Nut

$

$

Not available

22

Murray 335417

Battery Boot

$

$

Not available

23

Murray 711579

Wire, Lead Solenoid to Starter

$

$

Currently unavailable

24

Murray 94348

Harness Adapter

$

$

Currently unavailable

--

Murray 302031MA

15 Amp Fuse

$6.99

$

Usually ships in 2-12 days

0
