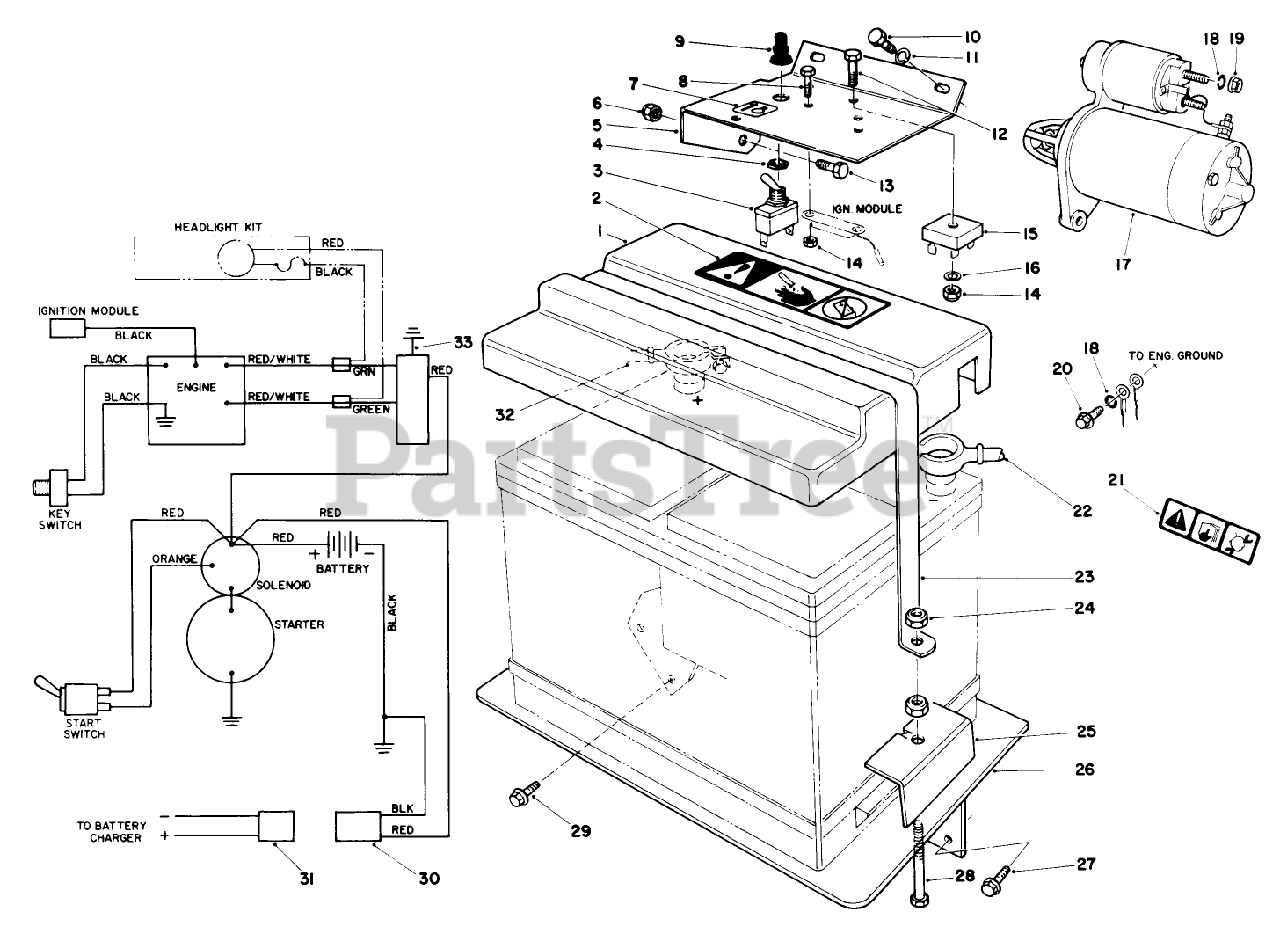

38525 (724) - Toro 24" Power Shift Snow Thrower (SN: 009000001 - 009999999) (1989) 12 Volt Starter Motor Kit No. 68-7250 (optional) Parts Diagram

24" Power Shift Snow Thrower

12 Volt Starter Motor Kit No. 68-7250 (optional) Parts Diagram

  • Title
1

Toro 22-8900

BATTERY COVER

$

$

Not available

2

Toro 66-7640

DECAL-CAUTION

$43.99

$

Usually ships in 3-6 days

0

3

Toro 6-1659

SWITCH & BOOT ASM

$89.99

$

Usually ships in 3-6 days

0

4

Toro 218-498

NUT-LOCK

$0.99

$

In Stock, only 1 left!

0

5

Toro 68-9360

DISCONTINUED

$

$

Not available

6

Toro 81-0130

NUT-FLANGE, NI

$1.99

$

Usually ships in 3-6 days

0

7

Toro 68-9490

DISCONTINUED

$

$

Not available

8

Toro 32105-8

SCREW-SHH

$2.49

$

Usually ships in 3-6 days

0

9

Toro 218-473

BOOT-SWITCH

$20.99

$

Usually ships in 3-6 days

0

10

Toro 46-0050

DISCONTINUED

$

$

Not available

11

Toro 48-8020

WASHER-SPRING

$1.99

$

Usually ships in 3-6 days

0

12

$2.99

$

In Stock, only 1 left!

0

13

Toro 46-0051

DISCONTINUED

$

$

Not available

14

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 13

0

15

Toro 37-7600

RECTIFIER-BRIDGE

$28.99

$

Usually ships in 3-6 days

0

16

Toro 3256-51

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

17

Toro 68-9330

DISCONTINUED

$

$

Not available

18

Toro 68-9420

See Supercession: 3253-4
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

19

Toro 68-9400

NUT-FLANGE

$2.99

$

In Stock, only 1 left!

0

20

Toro 68-9410

SCREW-HHF

$9.49

$

Usually ships in 3-6 days

0

21

Toro 63-3470

DECAL - ADJ WARNING

$

$

Not available

22

Toro 68-9350

DISCONTINUED

$

$

Not available

23

Toro 22-8850

See Supercession: 22-8850-03
(Superseded to 22-8850-03)

$109.99

$

Usually ships in 3-6 days

0

24

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

25

Toro 22-8870

DISCONTINUED

$

$

Not available

26

Toro 66-7600

DISCONTINUED

$

$

Not available

27

Toro 3234-17

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

28

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.99

$

In Stock, Qty 20+

0

29

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

30

Toro 68-9380

DISCONTINUED

$

$

Not available

31

Toro 29-7820

DISCONTINUED

$

$

Not available

32

Toro 68-9320

DISCONTINUED

$

$

Not available

33

Toro 68-9450

DISCONTINUED

$

$

Not available

Toro 26-7140

DISCONTINUED

$

$

Not available

Toro 26-3870

BATTERY CHARGER

$

$

Not available

Toro 68-9370

DISCONTINUED

$

$

Not available

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 9

0
