38540 (824) - Toro 24" Power Shift Snow Thrower (SN: 059000001 - 059999999) (1995) ENGINE ASSEMBLY Parts Diagram

24" Power Shift Snow Thrower

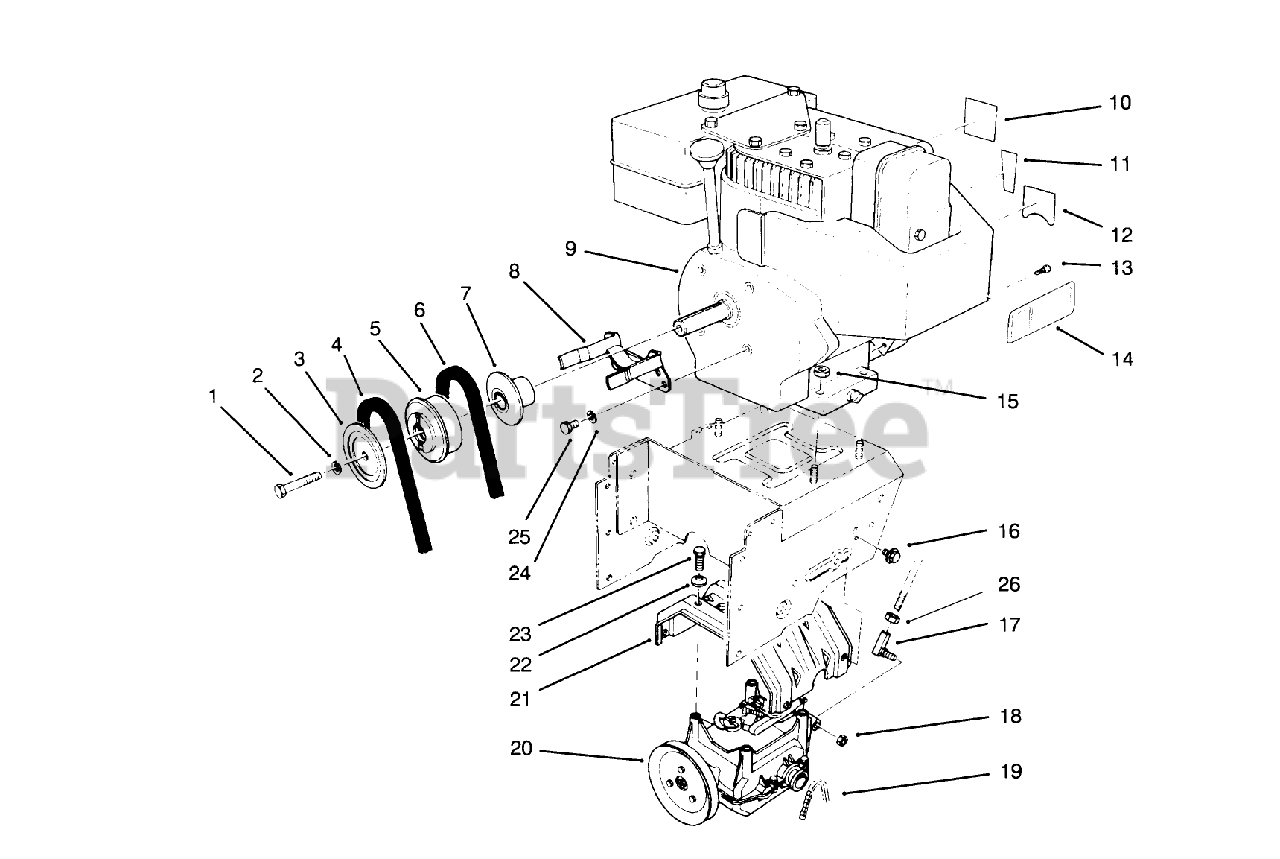

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 3212-8

SCREW-HH

$6.49

$

In Stock, Qty 5

0

2

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

3

Toro 62-0940

SHEAVE-HALF, IMPELLER

$18.99

$

In Stock, only 1 left!

0

4

Toro 63-2961

V-BELT

$26.99

$

In Stock, only 1 left!

0

5

Toro 63-0930

LH CASTOR ARM ASM

$

$

Not available

6

Toro 63-2951

V-BELT-TRACTION

$22.99

$

In Stock, Qty 7

0

7

Toro 62-0920

SHEAVE-HALF, TRACTION

$

$

Not available

8

Toro 68-7510

Guide-Belt
(Superseded to 68-7510-03)

$

$

Not available

9

Engine

Note: Obtain from your local Tecumseh dealer.

$

$

Not available

10

Toro 62-5760

DECAL-PRIMER
(Superseded to 94-2572)

$

$

Not available

11

Toro 63-3190

DECAL-THROTTLE

$4.99

$

Usually ships in 3-6 days

0

12

Toro 63-2400

DECAL-CHOKE

$4.99

$

Usually ships in 3-6 days

0

Toro 63-2410

DECAL-CHOKE

Note: Not illustrated

$6.49

$

Usually ships in 3-6 days

0

13

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

14

Toro 66-6840

DECAL-WARNING, HOT SURFACE

$80.99

$

Usually ships in 3-6 days

0

Toro 63-2310

DECAL-HOT SURFACE, WARNING
(Superseded to 94-2576)

Note: Not illustrated

$13.99

$

Usually ships in 3-6 days

0

15

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

16

Toro 3234-7

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

17

Toro 63-2640

JOINT-BALL

$

$

Not available

18

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

19

Toro 63-2940

CHAIN

$66.99

$

Usually ships in 3-6 days

0

20

Toro 66-8030

TRACTION GEARCASE ASM

$1930.99

$

Usually ships in 3-6 days

0

21

Toro 63-2990

Frame-Transmission
(Superseded to 63-2990-03)

$

$

Not available

22

Toro 3290-461

WASHER-SPRING

$5.49

$

In Stock, only 3 left!

0

23

Toro 11-0590

SCREW-HWHTF
(Superseded to 32144-102)

$3.49

$

In Stock, Qty 5

0

24

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

25

Toro 3210-1

SCREW-HH

$6.99

$

In Stock, only 2 left!

0

26

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

0
