38540 - Gravely Pro-Master Zero-Turn Mower, Gear Drive, 17hp Kohler (SN: 000101 & Above) TRANSMISSION Parts Diagram

Pro-Master Zero-Turn Mower, Gear Drive, 17hp Kohler

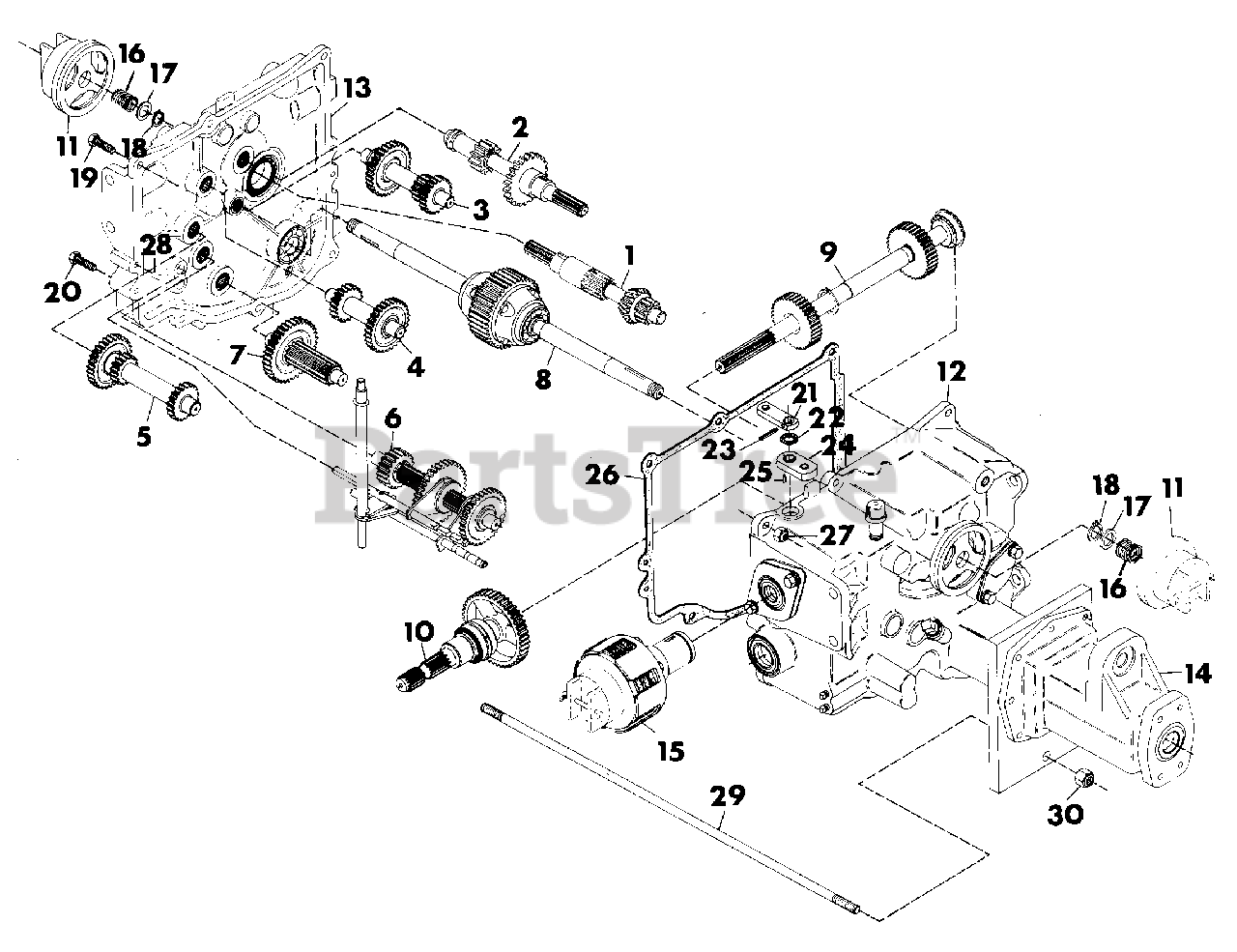

TRANSMISSION Parts Diagram

  • Title

1

NUMBER 1 SHAFT - FORWARD CLUTCH

$

$

Not available

2

NUMBER 2 SHAFT - REVERSE CLUTCH

$

$

Not available

3

NUMBER 3 SHAFT - 3RD AND 4TH GEAR

$

$

Not available

4

NUMBER 4 SHAFT - IDLER

$

$

Not available

5

NUMBER 5 SHAFT - 1ST AND 2ND GEAR

$

$

Not available

6

NUMBER 6 SHAFT - BRAKE/SLIDING GEAR

$

$

Not available

7

NUMBER 7 SHAFT - PINION/FINAL DRIVE

$

$

Not available

8

NUMBER 8 SHAFT - DIFFERENTIAL ASM.

$

$

Not available

9

NUMBER 9 SHAFT - PTO CLUTCH SHAFT

$

$

Not available

10

NUMBER 10 SHAFT - PTO DRIVE ASM.

$

$

Not available

11

NUMBER 11 - FWD-REV CLUTCH ASM.

$

$

Not available

12

NUMBER 12 - TRANSMISSION CASE ASM.

$

$

Not available

13

NUMBER 13 - TRANSMISSION COVER ASM.

$

$

Not available

14

NUMBER 14 - AXLE HOUSING

$

$

Not available

15

NUMBER 15 - PTO CLUTCH ASSEMBLY

$

$

Not available

16

Gravely 020444

SG-COMP .085X.80X1.00 WLD36
(Superseded to 08329100)

$14.99

$

In Stock, Qty 5

0

17

Gravely 011223

WSHR-HDND-THRST .758X1.23X.031
(Superseded to 06413400)

$3.49

$

In Stock, only 2 left!

0

18

Gravely 011135

SNAP RING, .750 X .042 EXT
(Superseded to 05700135)

$2.99

$

In Stock, only 2 left!

0

19

Gravely 180126

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 15

0

20

Gravely 180132

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

21

Gravely 017945

ARM,SHIFTER
(Superseded to 08702900)

$26.99

$

Usually ships in 4-12 days

0

22

Gravely 021141

WSHR-FELT .437X1.000X.031
(Superseded to 05615600)

$3.99

$

In Stock, Qty 7

0

23

Gravely 421202

PIN-ROLL .187X1.000
(Superseded to 05808800)

$2.99

$

Usually ships in 4-12 days

0

24

Gravely 017944

ARM,SHIFTER
(Superseded to 08702800)

$40.99

$

Usually ships in 4-12 days

0

25

Gravely 271089

KEY-WDRF .13X.38 HRD
(Superseded to 06609200)

$2.99

$

Usually ships in 4-12 days

0

26

Gravely 018027

GSKT,TRANS COVER
(Superseded to 08721800)

$32.99

$

In Stock, only 4 left!

0

27

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

28

Gravely 018089

PIN-DWL .38X.625
(Superseded to 05807600)

$

$

Not available

29

Gravely 035507

ROD,STRUT
(Superseded to 09027600)

$5.99

$

Usually ships in 4-12 days

0

30

Gravely 435507

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0
