38540 - Gravely Pro-Master Zero-Turn Mower, Gear Drive, 17hp Kohler (SN: 000101 & Above) TRANSMISSION CONTROLS Parts Diagram

Pro-Master Zero-Turn Mower, Gear Drive, 17hp Kohler

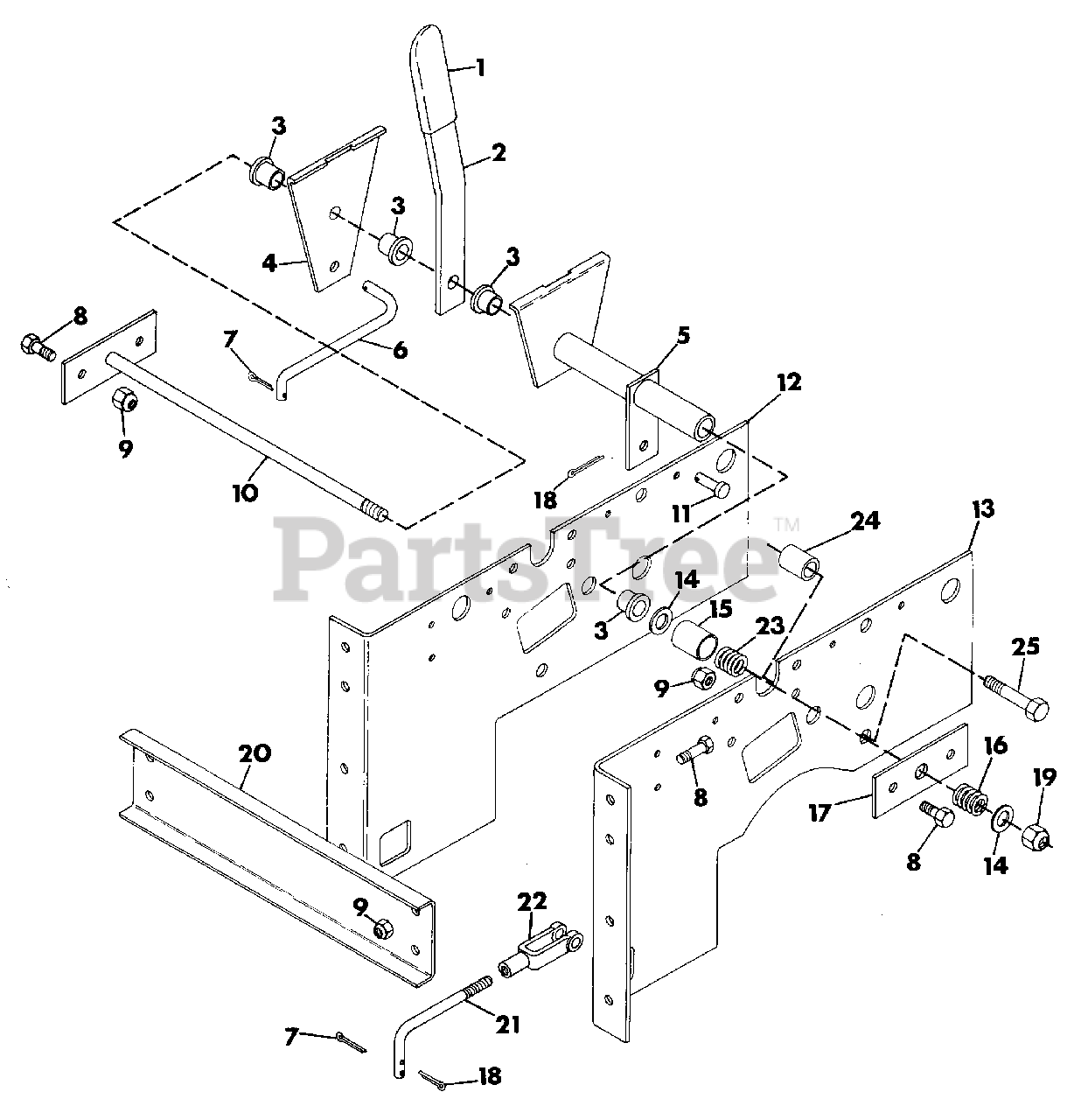

TRANSMISSION CONTROLS Parts Diagram

  • Title

1

Gravely 027158

GRIP,HANDLE
(Superseded to 07522100)

$

$

Not available

2

Gravely 035456

LVR,SHIFTER
(Superseded to 21240700)

$

$

Not available

3

Gravely 021504

BSHG-FLG .502X.628X.375 BR
(Superseded to 05519600)

$

$

Not available

4

Gravely 035461

WLDMT,SHIFT LEVER R.H.
(Superseded to 08916600)

$

$

Not available

5

Gravely 035460

WLDMT,SHIFT LEVER L.H.
(Superseded to 08916500)

$

$

Not available

6

Gravely 035457

ROD,GEAR SHIFT
(Superseded to 20624500)

$5.99

$

Usually ships in 4-12 days

0

7

Gravely 011860

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 180121

BLT-HEX .38-16X.875 GR5 YWZC
(Superseded to 05932600)

$2.99

$

Usually ships in 4-12 days

0

9

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

10

Gravely 035462

WLDMT,CROSS SHAFT
(Superseded to 08916700)

$

$

Not available

11

Gravely 138078

PIN-CLEV .375X.948 YWZC
(Superseded to 06811900)

$5.49

$

In Stock, only 1 left!

0

12

Gravely 035430

BRKT,CONTROL MOUNT R
(Superseded to 08915000)

$

$

Not available

13

Gravely 035431

BRKT,CONTROL MOUNT L.H.
(Superseded to 21240000)

$

$

Not available

14

Gravely 120396

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 035489

BUSH.,S.760X1.00X1.90 ST
(Superseded to 08911900)

$

$

Not available

16

Gravely 011779

SG-COMP .125X.78X1.00 YWZ
(Superseded to 08327000)

$16.99

$

In Stock, only 3 left!

0

17

Gravely 035502

PLT,CROSS SHAFT
(Superseded to 08918800)

$

$

Not available

18

Gravely 121222

PIN-CTR .09X.75 EXTPRSQCT YWZ
(Superseded to 06706900)

$0.99

$

In Stock, only 2 left!

0

19

Gravely 435507

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

20

Gravely 035469

BRKT,HYDRAULIC TANK
(Superseded to 08917200)

$

$

Not available

21

Gravely 035477

ROD,GEAR SHIFT
(Superseded to 20624600)

$3.49

$

Usually ships in 4-12 days

0

22

Gravely 018380

CLEVIS, .38-24 ADJ.
(Superseded to 08800400)

$11.99

$

Usually ships in 4-12 days

0

23

Gravely 018372

SG-COMP .085X.50X2.75 WLD34
(Superseded to 08328000)

$

$

Not available

24

Gravely 034720

BUSH.,S.510X.750X1.00 ST
(Superseded to 08910800)

$

$

Not available

25

Gravely 180181

BLT-HEX .50-13X2.00 GR5 YWZC
(Superseded to 05901929)

$3.49

$

In Stock, only 2 left!

0
