38543 (824) - Toro 24" Power Shift Snow Thrower (SN: 008000001 - 008999999) (1988) ELECTRIC STARTER MOTOR KIT NO. 33329C (OPTIONAL) Parts Diagram

24" Power Shift Snow Thrower

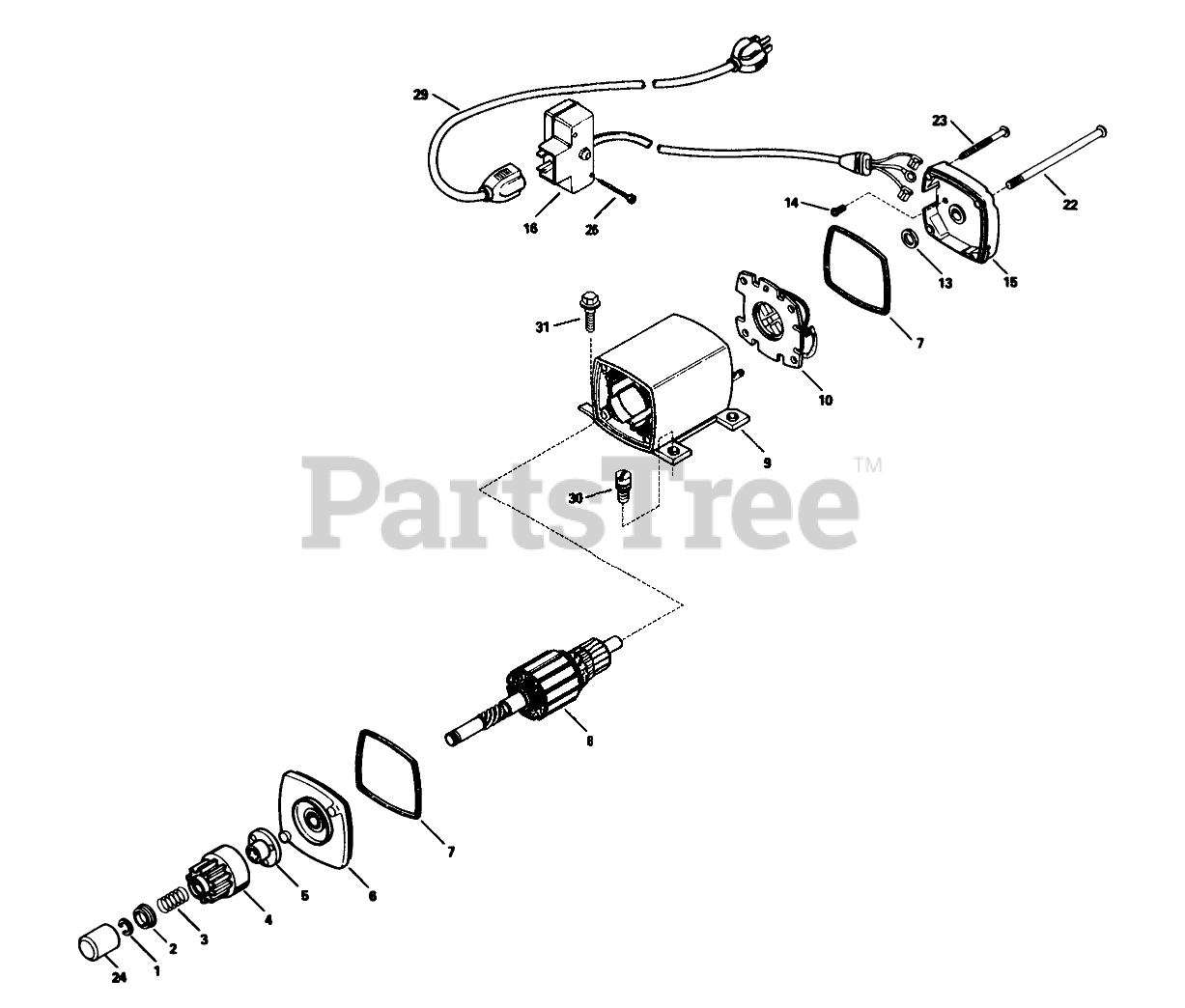

ELECTRIC STARTER MOTOR KIT NO. 33329C (OPTIONAL) Parts Diagram

  • Title

1

Tecumseh 33842

Ring-Retainer

$3.99

$

In Stock, Qty 6

0

2

Tecumseh 33430

Retainer-Spring
(Superseded to 33843)

$7.99

$

In Stock, only 1 left!

0

3

Tecumseh 33431

Spring-Anti Drift

$3.99

$

Usually ships in 3-12 days

0

4

Tecumseh 33432

Gear

$40.99

$

Usually ships in 3-12 days

0

5

Tecumseh 33433

Nut-Engaging
(Superseded to 33433A)

$19.99

$

Usually ships in 3-12 days

0

6

Tecumseh 35449

Drive End Cap Assembly (Incl. Ref. #7)

$36.99

$

Usually ships in 3-12 days

0

7

Tecumseh 35450

O-Ring

$3.99

$

Usually ships in 3-12 days

0

8

Tecumseh 33541A

Armature

$

$

Not available

9

Tecumseh 35451

Housing Assy.
(Superseded to 33329E)

$

$

Not available

10

Tecumseh 35452

Card ASM
(Superseded to 35452A)

$58.99

$

In Stock, only 1 left!

0

13

Tecumseh 590500

Washer-Thrust

$1.99

$

In Stock, only 2 left!

0

14

Tecumseh 33441

Screw-Ground

$

$

Not available

15

Tecumseh 35453

Commutator End Cap Assy. (Incl. Ref. #7)

$41.99

$

Usually ships in 3-12 days

0

16

Tecumseh 35454

Switch Box ASM

$

$

Not available

22

Tecumseh 35455

Bolt-Case

$

$

Not available

23

Tecumseh 35456

Screw-Ground

$1.99

$

In Stock, only 3 left!

0

24

Tecumseh 33451

Cover-Dust

$3.49

$

In Stock, Qty 5

0

26

Tecumseh 650819

Screw

$1.99

$

In Stock, only 3 left!

0

29

Tecumseh 32450A

Cord-Extension
(Superseded to 32450B)

$

$

Not available

30

Tecumseh 30063

Screw

$1.99

$

In Stock, Qty 20+

0

31

Tecumseh 650820

Screw (1/4-20x1/2)

$3.99

$

In Stock, Qty 20+

0
