38543 (824) - Toro 24" Power Shift Snow Thrower (SN: 230000001 - 230999999) (2003) LOWER TRACTION ASSEMBLY Parts Diagram

24" Power Shift Snow Thrower

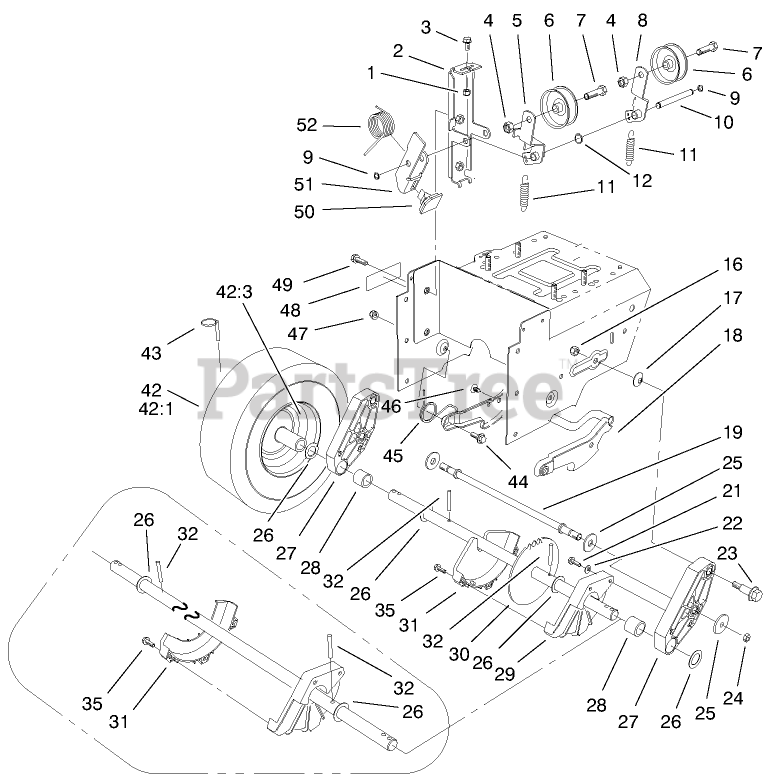

LOWER TRACTION ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

2

Toro 63-2850

IDLER ARM BRACKET ASM

$

$

Not available

3

Toro 3234-13

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

4

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

5

Toro 93-8046

IMPELLER IDLER ARM ASM

$

$

Not available

6

Toro 3-4244

PULLEY-IDLER

$27.99

$

In Stock, only 3 left!

0

7

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

8

Toro 93-8045

TRACTION IDLER ARM ASM

$153.99

$

In Stock, only 1 left!

0

9

Toro 32120-46

RING-RETAINING

$2.49

$

Usually ships in 3-6 days

0

10

Toro 62-0970

PIN-IDLER

$

$

Not available

11

Toro 63-2870

SPRING-EXTENSION

$8.99

$

In Stock, only 2 left!

0

12

Toro 3256-38

WASHER-FLAT

$0.99

$

In Stock, only 4 left!

0

16

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

17

Toro 3290-461

WASHER-SPRING

$5.49

$

In Stock, only 3 left!

0

18

Toro 62-0470-03

LATCH ASM

$160.99

$

Usually ships in 3-6 days

0

19

Toro 66-7720

ROD-LATCH

$62.99

$

Usually ships in 3-6 days

0

21

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

22

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 62-1330

BOLT-SHOULDER

$11.99

$

In Stock, only 3 left!

0

24

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

25

Toro 63-3340

WASHER-SUPPORT

$4.49

$

Usually ships in 3-6 days

0

26

Toro 252-80

WASHER-THRUST

$8.99

$

Usually ships in 3-6 days

0

27

Toro 66-7740

PIVOT ARM ASM

$79.99

$

Usually ships in 3-6 days

0

28

Toro 63-2250

BUSHING-AXLE

$12.99

$

In Stock, only 2 left!

0

29

Toro 62-1010

GUARD-CHAIN, LH

$

$

Not available

30

Toro 63-2111

AXLE ASM

$

$

Not available

31

Toro 62-1000

GUARD-CHAIN, RH

$

$

Not available

32

Toro 32121-9

PIN-ROLL, SLOTTED

$3.49

$

In Stock, Qty 11

0

35

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

42

WHEEL AND TIRE ASM

$

$

Not available

42:1

Toro 231-120

TIRE

$264.99

$

Usually ships in 3-6 days

0

42:3

Toro 241-128

WHEEL

$185.99

$

Usually ships in 3-6 days

0

42:2

Toro 232-46

TUBE-INNER

Note: Not illustrated

$37.99

$

Usually ships in 3-6 days

0

43

Toro 3290-243

PIN-LYNCH

$28.99

$

Usually ships in 3-6 days

0

44

Toro 5-2490

SCREW-SHOULDER

$9.49

$

Usually ships in 3-6 days

0

45

Toro 63-2740

SPRING-LATCH, TORSION

$16.99

$

Usually ships in 3-6 days

0

46

Toro 3290-476

FASTENER-PANEL

$2.49

$

Usually ships in 3-6 days

0

47

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

49

Toro 3234-7

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

50

Toro 66-8060

PAD-BRAKE

$18.99

$

In Stock, Qty 20+

0

51

Toro 63-2810

ARM-BRAKE

$41.99

$

Usually ships in 3-6 days

0

52

Toro 63-2880

SPRING-TORSION

$

$

Not available
