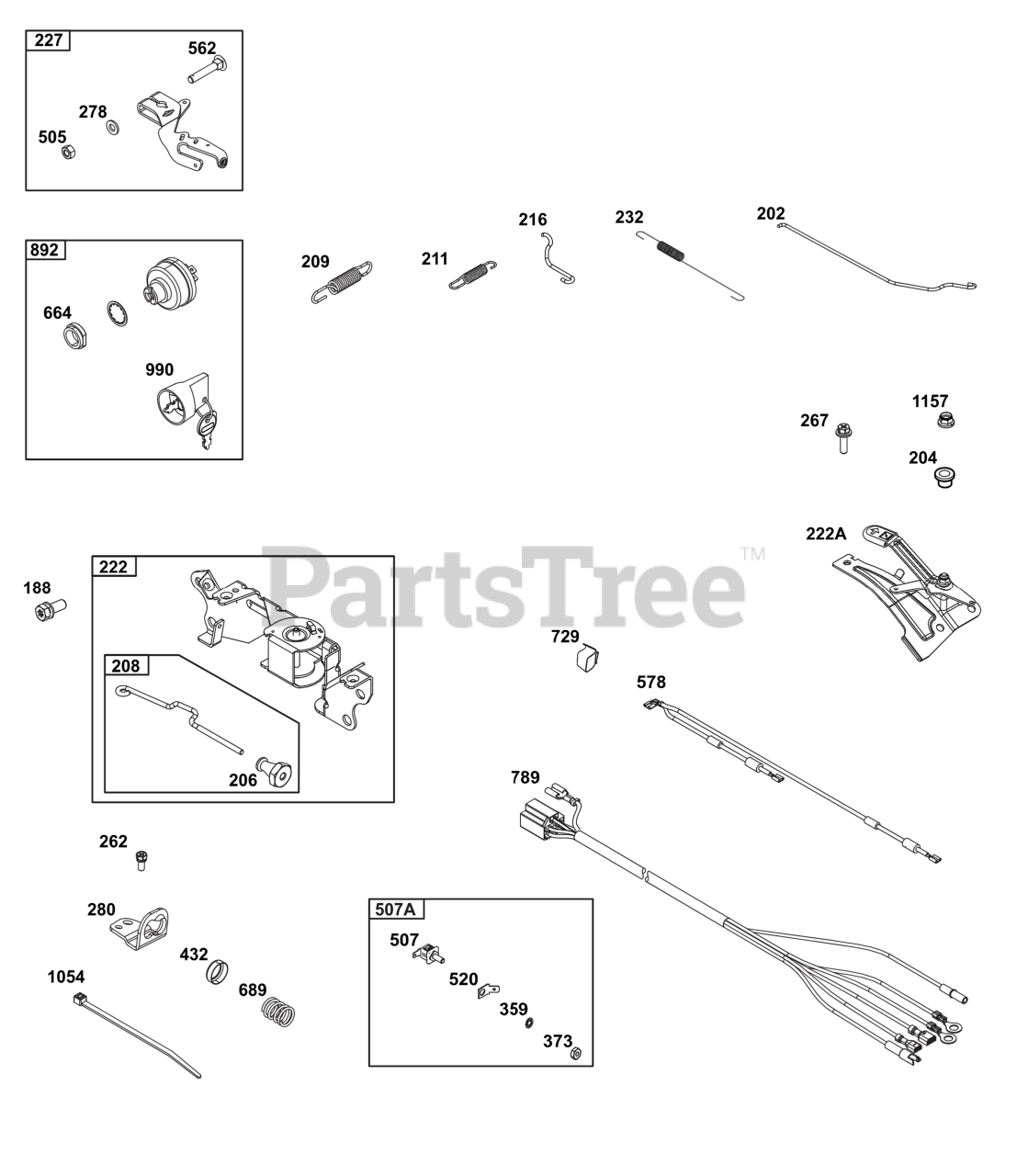

385447-0216-B5 - Briggs & Stratton Horizontal Engine Controls Group Parts Diagram

Horizontal Engine

Controls Group Parts Diagram

  • Title

188

Briggs & Stratton 692062

SCREW

Note: (Control Bracket)

$3.49

$

In Stock, only 3 left!

0

202

Briggs & Stratton 691536

LINK, Mechanical Governor

$9.49

$

Usually ships in 2-12 days

0

204

Briggs & Stratton 692884

BUSHING, Lever

$6.99

$

Usually ships in 2-12 days

0

206

Briggs & Stratton 691244

NUT, Governor Adjusting

$14.99

$

Usually ships in 2-12 days

0

208

Briggs & Stratton 808453

ROD, Governor Control

$14.99

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 690709

SPRING, Governor

$7.49

$

Usually ships in 2-12 days

0

211

Briggs & Stratton 691504

SPRING, Governed Idle

$4.49

$

Usually ships in 2-12 days

0

216

Briggs & Stratton 691542

LINK, Choke

$6.49

$

Usually ships in 2-12 days

0

222

Briggs & Stratton 808454

BRACKET, Control

$38.99

$

Usually ships in 2-12 days

0

222A

Briggs & Stratton 808753

CRANK, Bell

$38.99

$

In Stock, only 1 left!

0

227

Briggs & Stratton 845484

LEVER, Governor Control

$26.99

$

Usually ships in 2-12 days

0

232

Briggs & Stratton 691538

SPRING/LINK, Governor

$9.49

$

Usually ships in 2-12 days

0

262

Briggs & Stratton 841552

SCREW

$3.49

$

In Stock, only 1 left!

0

267

Briggs & Stratton 841552

SCREW

$3.49

$

In Stock, only 1 left!

0

278

Briggs & Stratton 842122

WASHER

Note: (Governor Control Lever)

$5.49

$

In Stock, only 1 left!

0

280

Briggs & Stratton 691526

BRACKET, Fixed Speed

$9.99

$

Usually ships in 2-12 days

0

359

Briggs & Stratton 691077

WASHER

Note: (Ground Terminal)

$3.49

$

Usually ships in 2-12 days

0

373

Briggs & Stratton 690713

NUT
(Superseded to 806447)

Note: (Ground Terminal)

$

$

Not available

432

Briggs & Stratton 691509

CAP, Spring

$5.99

$

In Stock, only 1 left!

0

505

Briggs & Stratton 844752

NUT

Note: (Governor Control Lever)

$3.49

$

Usually ships in 2-12 days

0

507

Briggs & Stratton 691972

INSULATOR

$8.49

$

In Stock, Qty 6

0

507A

Briggs & Stratton 848341

CONNECTOR, Terminal

$9.99

$

Usually ships in 2-12 days

0

520

Briggs & Stratton 691084

TERMINAL, Ground

$6.49

$

In Stock, only 2 left!

0

562

Briggs & Stratton 690239

BOLT

Note: (Governor Control Lever)

$5.49

$

Usually ships in 2-12 days

0

578

WIRE ASSEMBLY

Note: (Part information located in Flywheel, Ignition, and Starter Group.)

$

$

Not available

664

Briggs & Stratton 691087

NUT

$4.49

$

Usually ships in 2-12 days

0

689

Briggs & Stratton 691272

SPRING, Friction

$13.99

$

In Stock, only 1 left!

0

729

Briggs & Stratton 593826

CLIP, Wire

$5.99

$

Usually ships in 2-12 days

0

789

Briggs & Stratton 691996

HARNESS, Wiring

$44.99

$

Usually ships in 2-12 days

0

892

Briggs & Stratton 995012

IGNITION SWITCH KIT

$38.99

$

Usually ships in 2-12 days

0

990

Briggs & Stratton 691959

SET, Key

$7.99

$

In Stock, Qty 9

0

1054

Briggs & Stratton 280275

TIE, Cable

$4.49

$

Usually ships in 2-12 days

0

1157

Briggs & Stratton 690713

NUT
(Superseded to 806447)

$

$

Not available
