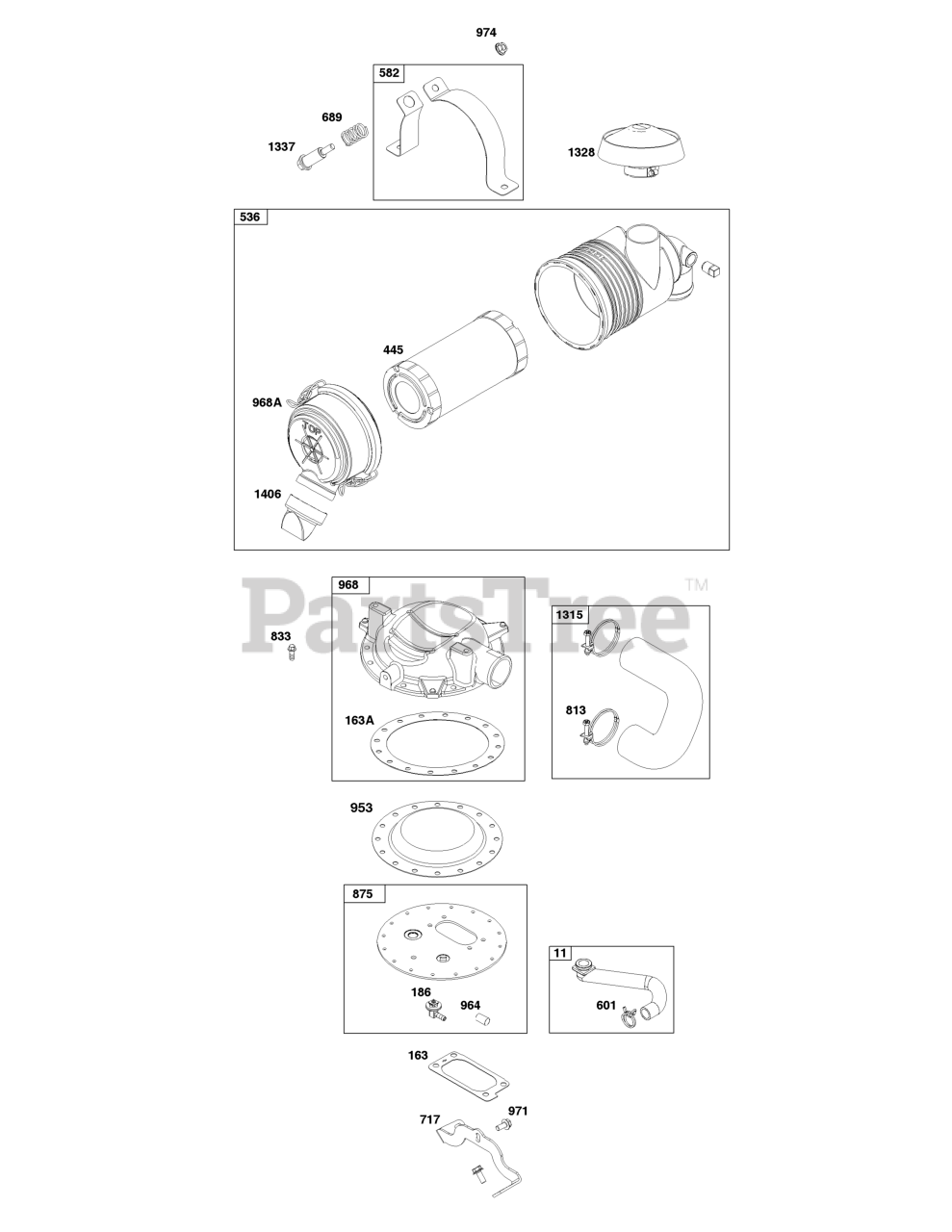

385447-0341-B5 - Briggs & Stratton Horizontal Engine Air Cleaner Group Parts Diagram

Horizontal Engine

Air Cleaner Group Parts Diagram

  • Title

11

Briggs & Stratton 806379

TUBE, Breather

$15.99

$

In Stock, only 1 left!

0

163

Briggs & Stratton 692087

GASKET, Air Cleaner

Note: (Air Cleaner)

$5.49

$

In Stock, Qty 7

0

163A

Briggs & Stratton 841823

GASKET, Air Cleaner

Note: (Air Cleaner)

$6.99

$

Usually ships in 2-12 days

0

186

Briggs & Stratton 845141

CONNECTOR, Hose

$10.99

$

In Stock, Qty 5

0

445

Briggs & Stratton 820263

FILTER, A/C Cartridge

$27.99

$

In Stock, only 2 left!

0

536

Briggs & Stratton 825118

CLEANER, Air

$193.99

$

Usually ships in 2-12 days

0

582

Briggs & Stratton 843114

CLAMP, Air Cleaner

$47.99

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 691145

CLAMP, Hose

$3.99

$

Usually ships in 2-12 days

0

689

Briggs & Stratton 843113

SPRING, Friction

$10.99

$

Usually ships in 2-12 days

0

717

Briggs & Stratton 843332

BRACKET, Air Cleaner

$35.99

$

In Stock, only 1 left!

0

813

Briggs & Stratton 807377

CLAMP

$6.49

$

Usually ships in 2-12 days

0

833

Briggs & Stratton 847281

SCREW

Note: (Air Cleaner Mounting Strap/Stud) (M6x14mm)

$3.99

$

Usually ships in 2-12 days

0

875

Briggs & Stratton 843109

BASE, Air Cleaner

$74.99

$

Usually ships in 2-12 days

0

953

Briggs & Stratton 845030

SCREEN, Air Cleaner

$78.99

$

Usually ships in 2-12 days

0

964

Briggs & Stratton 807468

CAP, Carburetor

$9.99

$

Usually ships in 2-12 days

0

968

Briggs & Stratton 841822

COVER, Air Cleaner

$49.99

$

Usually ships in 2-12 days

0

968A

Briggs & Stratton 842620

COVER, Air Cleaner

$83.99

$

Usually ships in 2-12 days

0

971

Briggs & Stratton 807084

SCREW

Note: (Air Cleaner Base to Carburetor/Throttle Body) (M6x14mm)

$3.49

$

In Stock, Qty 17

0

974

Briggs & Stratton 848316

BRACKET, Muffler

Note: (Air Cleaner Clamp)

$103.99

$

Usually ships in 2-12 days

0

1315

Briggs & Stratton 843111

HOSE, Air Cleaner

$69.99

$

Usually ships in 2-12 days

0

1328

Briggs & Stratton 716244

CAP, A/C Rain

$60.99

$

In Stock, only 1 left!

0

1337

Briggs & Stratton 843112

SCREW

Note: (Air Cleaner Clamp)

$8.99

$

Usually ships in 2-12 days

0

1406

Briggs & Stratton 842623

VALVE, Debris

$20.99

$

In Stock, only 1 left!

0
