385447-0341-B5 - Briggs & Stratton Horizontal Engine Carburetor and Fuel Supply Group Parts Diagram

Horizontal Engine

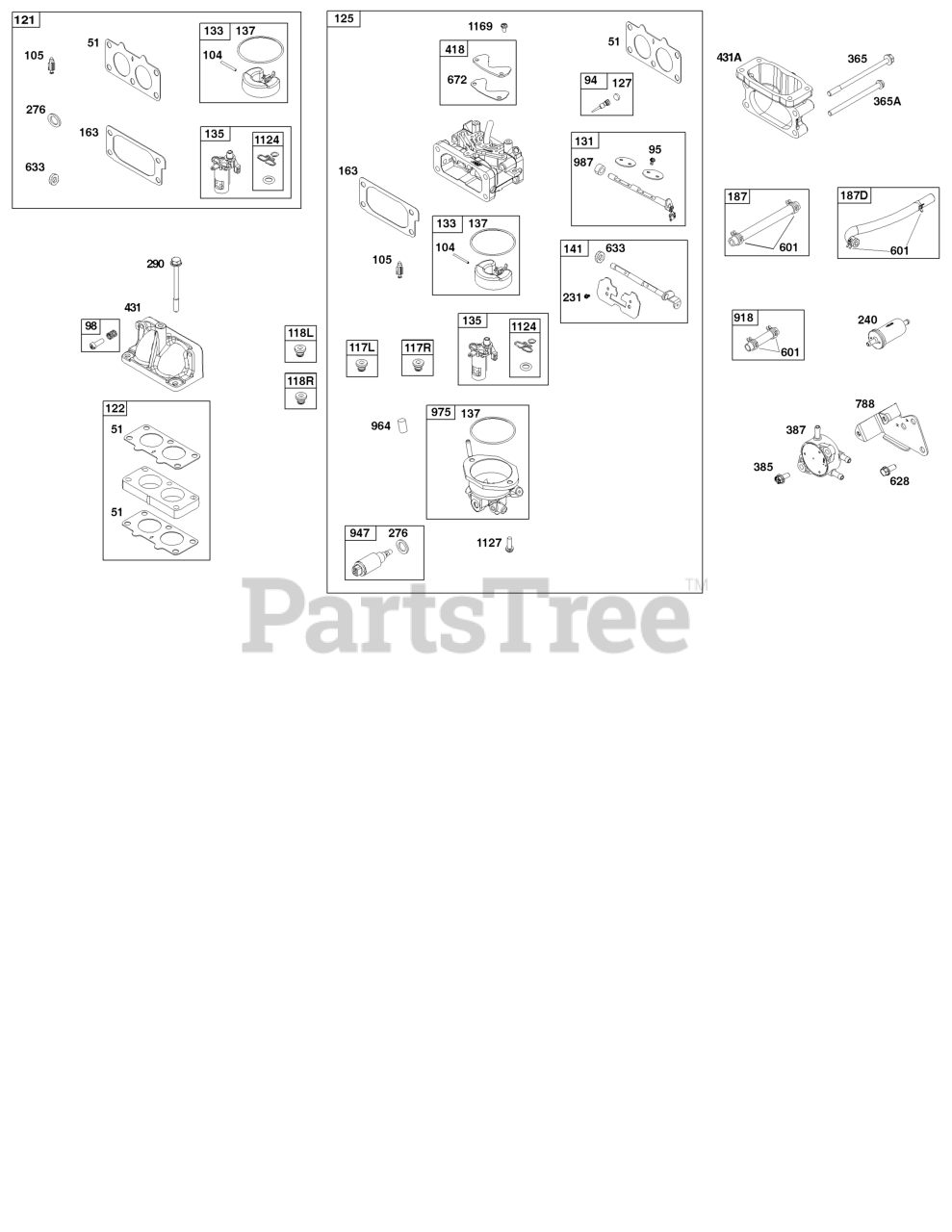

Carburetor and Fuel Supply Group Parts Diagram

  • Title

51

Briggs & Stratton 690950

GASKET, Intake

$2.99

$

In Stock, Qty 19

0

94

Briggs & Stratton 844593

KIT, Idle Mixture

$38.99

$

In Stock, only 1 left!

0

95

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve)

$5.99

$

In Stock, only 1 left!

0

98

Briggs & Stratton 843545

KIT, Idle Speed

$6.49

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 844598

PIN, Float Hinge

$8.49

$

Usually ships in 2-12 days

0

105

Briggs & Stratton 698537

VALVE, Float Needle

$15.99

$

In Stock, only 1 left!

0

117L

Briggs & Stratton 843099

JET, Main

Note: (Left Jet)

$15.99

$

In Stock, only 4 left!

0

117R

Briggs & Stratton 699457

JET, Main

Note: (Right Jet)

$15.99

$

In Stock, only 2 left!

0

118L

Briggs & Stratton 699820

JET, Main

Note: (Left Jet)(High Altitude) (5000 Feet)

$16.99

$

Usually ships in 2-12 days

0

118R

Briggs & Stratton 699758

JET, Main

Note: (Right Jet)(High Altitude) (5000 Feet)

$

$

Currently unavailable

121

Briggs & Stratton 843103

KIT, Carburetor Overhaul

Note: (Service Kits may include extra parts not specific to this engine.)

$128.99

$

In Stock, only 1 left!

0

122

Briggs & Stratton 690870

SPACER, Carburetor

$14.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 845316

CARBURETOR

$384.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 844590

PLUG, Welch

$10.99

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 845240

KIT, Throttle Shaft

$

$

Not available

133

Briggs & Stratton 845291

FLOAT, Carburetor

$29.99

$

Usually ships in 2-12 days

0

135

Briggs & Stratton 842677

TUBE, Fuel Transfer

$36.99

$

Usually ships in 2-12 days

0

137

Briggs & Stratton 841651

GASKET, Float Bowl

$7.49

$

In Stock, only 2 left!

0

141

Briggs & Stratton 843100

KIT, Choke Shaft

$41.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 692087

GASKET, Air Cleaner

Note: (Air Cleaner)

$5.49

$

In Stock, Qty 7

0

187

Briggs & Stratton 791766

LINE, Fuel

Note: (Straight) (15 Inches Long)(Cut to Required Length)

$7.99

$

In Stock, Qty 20+

0

187D

Briggs & Stratton 791744

LINE, Fuel

Note: (Formed)(14 Inches Long)(Cut To Required Length)

$14.99

$

In Stock, only 2 left!

0

231

Briggs & Stratton 690718

SCREW

Note: (Choke Valve)

$5.99

$

In Stock, only 1 left!

0

240

Briggs & Stratton 845125

FILTER, Fuel

$7.49

$

In Stock, Qty 20+

0

276

Briggs & Stratton 695410

WASHER, Sealing

$6.99

$

In Stock, only 3 left!

0

290

Briggs & Stratton 691537

SCREW

Note: (M6x70mm)

$5.99

$

Usually ships in 2-12 days

0

365

Briggs & Stratton 847021

SCREW

Note: (M6x100mm)

$3.99

$

Usually ships in 2-12 days

0

365A

Briggs & Stratton 690866

SCREW

Note: (Carburetor/Throttle Body) (M6x85mm)

$9.49

$

Usually ships in 2-12 days

0

385

Briggs & Stratton 807084

SCREW

Note: (Fuel Pump) (M6x14mm)

$3.49

$

In Stock, Qty 13

0

387

Briggs & Stratton 808656

PUMP, Fuel
(Superseded to 597338)

$27.99

$

Usually ships in 2-12 days

0

418

Briggs & Stratton 844589

PLATE, Carburetor Cover

$16.99

$

Usually ships in 2-12 days

0

431

Briggs & Stratton 808659

MANIFOLD, Intake

$70.99

$

Usually ships in 2-12 days

0

431A

Briggs & Stratton 691534

MANIFOLD, Intake

$70.99

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 691038

CLAMP, Hose

$3.99

$

In Stock, Qty 7

0

628

Briggs & Stratton 806660

SCREW

Note: (Fuel Pump Bracket)

$3.99

$

In Stock, only 1 left!

0

633

Briggs & Stratton 690722

SEAL, Choke/Throttle Shaft

$15.99

$

In Stock, only 1 left!

0

672

Briggs & Stratton 843102

GASKET, Carburetor Plate

$12.99

$

Usually ships in 2-12 days

0

788

Briggs & Stratton 691559

BRACKET, Fuel Pump

$24.99

$

In Stock, only 2 left!

0

918

Briggs & Stratton 791880

HOSE, Vacuum

Note: (6.35mm(0.25) ID x 60mm(2.36") Lg) (Straight)(Cut To Required Length)

$11.99

$

In Stock, only 1 left!

0

947

Briggs & Stratton 845654

SOLENOID, Fuel

$97.99

$

Usually ships in 2-12 days

0

964

Briggs & Stratton 807468

CAP, Carburetor

$9.99

$

Usually ships in 2-12 days

0

975

Briggs & Stratton 844591

BOWL, Float

$98.99

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 691000

SEAL, Throttle Shaft

$6.99

$

Usually ships in 2-12 days

0

1124

Briggs & Stratton 842678

SEAL, O-Ring

Note: (Fuel Transfer Tube)

$17.99

$

In Stock, Qty 6

0

1127

Briggs & Stratton 841621

SCREW

Note: (Float Bowl to Carburetor Body)

$3.99

$

Usually ships in 2-12 days

0

1169

Briggs & Stratton 690990

SCREW

Note: (Carburetor Cover Plate)

$3.99

$

Usually ships in 2-12 days
