38545 (828) - Toro 28" Power Shift Snow Thrower (SN: 009000001 - 009999999) (1989) Engine Assembly Parts Diagram

28" Power Shift Snow Thrower

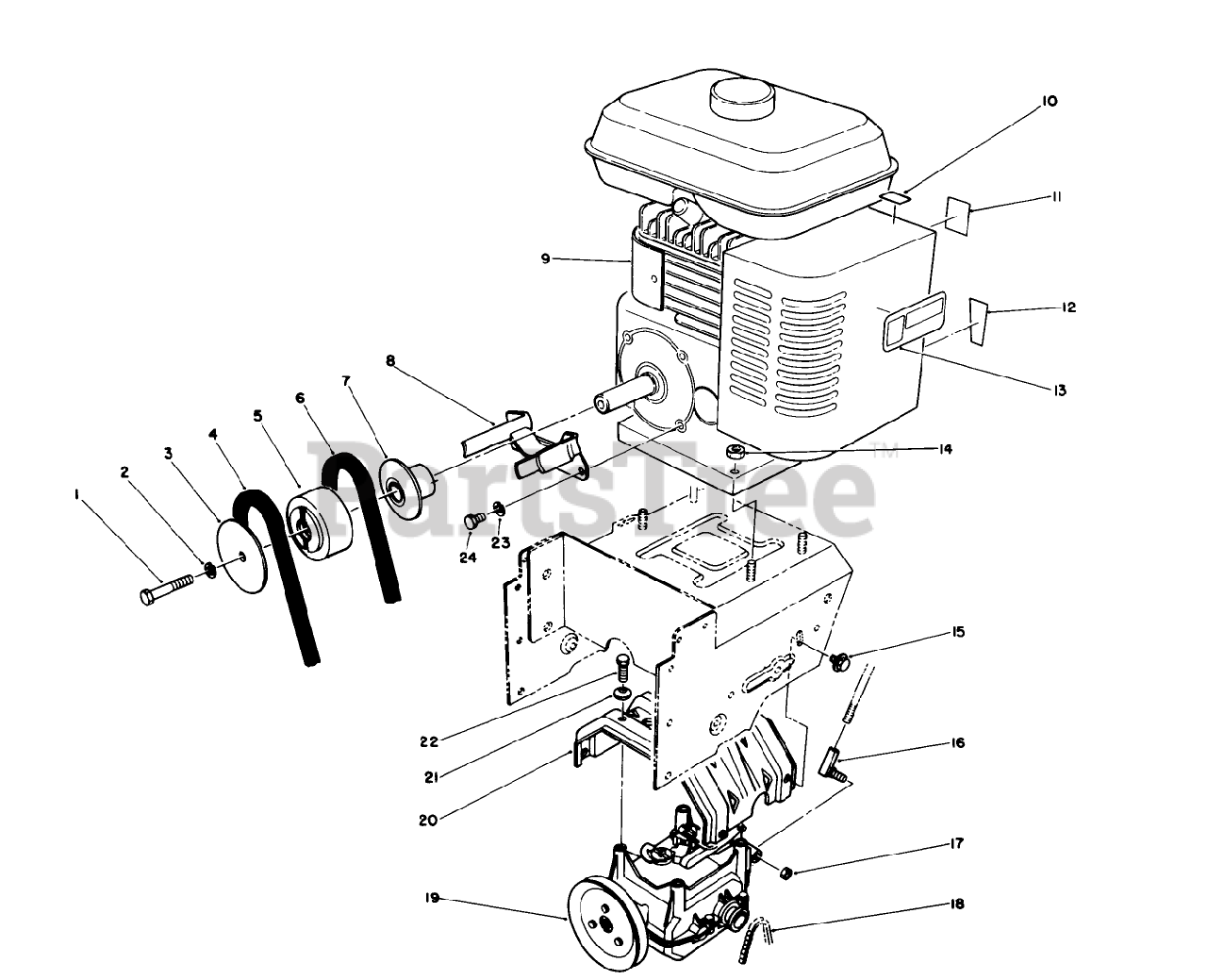

Engine Assembly Parts Diagram

  • Title

1

Toro 3211-9

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

2

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 8

0

3

Toro 62-0910

SHEAVE-HALF,IMPELLER

$

$

Not available

4

Toro 63-2963

V-BELT

$60.99

$

Usually ships in 3-6 days

0

5

Toro 62-0900

DISCONTINUED

$

$

Not available

6

Toro 63-2952

SEE SB SNOW #54

$

$

Not available

7

Toro 62-0890

DISCONTINUED

$

$

Not available

8

Toro 68-7490

DISCONTINUED

$

$

Not available

9

Toro 63-3010

DISCONTINUED

$

$

Not available

Toro 68-8290

DISCONTINUED

$

$

Not available

10

Toro 63-2470

DISCONTINUED

$

$

Not available

Toro 68-8540

DISCONTINUED

$

$

Not available

11

Toro 63-3490

DISCONTINUED

$

$

Not available

12

Toro 63-3190

DECAL-THROTTLE

$

$

Not available

13

Toro 63-2310

See Supercession: 94-2576
(Superseded to 94-2576)

$

$

Not available

14

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

15

Toro 3234-7

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

16

Toro 63-2640

DISCONTINUED

$

$

Not available

17

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

18

Toro 63-2930

DISCONTINUED

$

$

Not available

19

Toro 66-8030

TRACTION GEARCASE ASM

$2552.99

$

Usually ships in 3-6 days

0

20

Toro 63-2990

See Supercession: 63-2990-03
(Superseded to 63-2990-03)

$

$

Not available

21

Toro 3290-461

WASHER-SPRING

$5.49

$

In Stock, only 2 left!

0

22

Toro 11-0590

See Supercession: 32144-102
(Superseded to 32144-102)

$3.99

$

In Stock, Qty 5

0

23

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

24

Toro 3210-1

SCREW-HH

$8.49

$

In Stock, only 2 left!

0
