38559 (1028) - Toro 28" Power Shift Snow Thrower (SN: 099000001 - 099999999) (1999) Tecumseh Carburetor No. 640169 Parts Diagram

28" Power Shift Snow Thrower

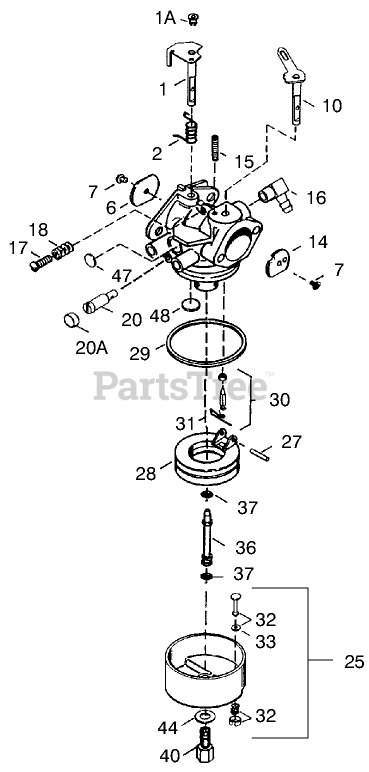

Tecumseh Carburetor No. 640169 Parts Diagram

  • Title

1

Toro 632777

Throttle Shaft and Lever ASM

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Currently unavailable

1A

Toro 36288

Bushing

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Currently unavailable

2

Toro 631970

Spring-Return, Throttle

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Currently unavailable

6

Toro 640109

Shutter-Throttle

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Currently unavailable

7

Toro 650506

Screw-Shutter

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Currently unavailable

10

Toro 632778

Choke Shaft and Lever ASM

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Currently unavailable

14

Toro 631753

Choke Shutter

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Currently unavailable

15

Toro 630735

Spring-Positioning, Choke

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Currently unavailable

16

Toro 632527

Fitting-Fuel

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Currently unavailable

17

Toro 651025

Screw-Throttle Crack and Idle Speed

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Currently unavailable

18

Toro 683766

Spring-Tension

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Currently unavailable

20

Toro 640027

Screw-Restrictor, Idle

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Currently unavailable

20A

Toro 640053

Cap-Screw, Idle Restrictor

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Currently unavailable

25

Toro 632594A

Float Bowl ASM (Incl. Ref. #32 and 33)

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Currently unavailable

27

Toro 631024

Shaft-Float

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Currently unavailable

28

Toro 632019

Float

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Currently unavailable

29

Toro 631028

O Ring-Bowl, Float

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Currently unavailable

30

Toro 631021

Inlet Needle, Seat Clip Assy. (Incl. No. 13)

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Currently unavailable

31

Toro 631022

Clip-Spring

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Currently unavailable

32

Toro 27136A

Bowl Drain ASM

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Currently unavailable

33

Toro 27554

Gasket-Plunger, Drain

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Currently unavailable

36

Toro 640013

Tube-Nozzle, Main

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Currently unavailable

37

Toro 632547

O-Ring

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Currently unavailable

40

Toro 640170

Nut-Bowl, High Speed

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Currently unavailable

44

Toro 27110

Washer-Bowl Nut

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Currently unavailable

47

Toro 630748

Plug-Welch, Idle Mixture Well

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Currently unavailable

48

Toro 631027

Plug-Welch, Atmospheric Vent

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Currently unavailable
