38560 (1028) - Toro 28" Power Shift Snow Thrower (SN: 200000001 - 200999999) (2000) Engine Tecumseh Ohsk100-221607a (only On: 38559)(continued) Parts Diagram

28" Power Shift Snow Thrower

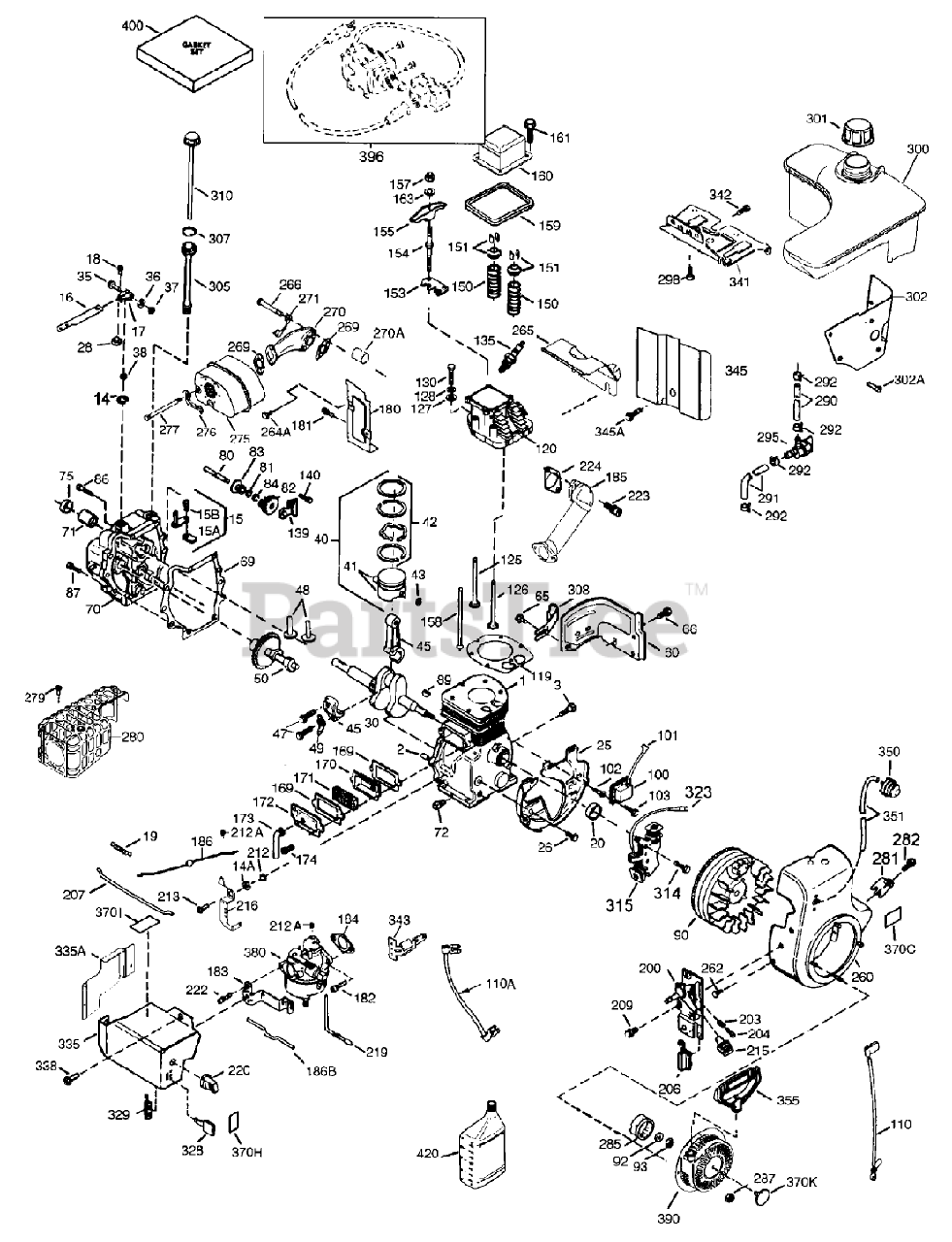

Engine Tecumseh Ohsk100-221607a (only On: 38559)(continued) Parts Diagram

  • Title

1

Toro 37251

Cylinder (Incl. Ref.# 2, 20, and 72)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

2

Toro 27652

Pin-Dowel

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

3

Toro 650820

Screw (1/4-20x1/2)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

14

Toro 28277

Washer-Flat

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

14A

Toro 651057

Washer

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

15

Toro 30699C

Rod, Governor (Incl. Nos.62 63)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

15A

Toro 30700

Yoke-Governor

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

15B

Toro 650494

Screw (6-40x5/16)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

16

Toro 37255

Governor Lever

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

17

Toro 29916

Clamp-Lever, Governor

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

18

Toro 651028

Screw (T-15, 8-32x7/16)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

19

Toro 36281

Spring-Extension
(Superseded to 700777)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

20

Toro 35319

Seal-Oil

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

25

Toro 36460

Baffle-Housing, Blower
(Superseded to 702114)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

26

Toro 650561

Screw (1/4-20x19/32)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

28

Toro 30322

Nut-Lock

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

30

Toro 37272

Crankshaft

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

35

Toro 29826

Screw

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

36

Toro 29918

Washer-Lock

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

37

Toro 29216

Nut-Lock

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

38

Toro 29642

Ring-Retaining

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

40

Toro 40011

TANK PAD

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

40

Toro 40012

Piston- Pin and Ring Set (.010 O S)
(Superseded to 42329)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

41

Toro 40009

Piston and Pin ASM (STD) (Includes 43)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

41

Toro 40010

J-BOLT

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

42

Toro 40013

BUSHING TRANS 7/8 BORE

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

42

Toro 40014

BUSHING - ENG 1" BORE

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

43

Toro 27888

See Supercession: 702895
(Superseded to 702895)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

45

Toro 36897

Connecting Rod Asm (Includes 47, 49)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

47

Toro 651033

Bolt-Rod, Connecting

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

48

Toro 35313

Lifter-Valve

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

49

Toro 36896

Dipper-Oil

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

50

Toro 35682A

Camshaft

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

60

Toro 35316A

Extension-Housing, Blower

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

65

Toro 30200

Screw (10-24 x 9/16)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

66

Toro 30063

Screw

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

69

Toro 35262A

Gasket-Cover, Cylinder

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

70

Toro 37273

Cover-Cylinder (Incl. Ref. #14, 15, 38, 71, 75)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

71

Toro 35377

2025A77 WIZARD ROTA

Note: Obtain parts from www.tecumsehpower.com

$3.23

$

Usually ships in 3-6 days

0

72

Toro 27642

Plug-Drain, Oil (SQH 1/4-18)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

75

Toro 35319

Seal-Oil

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

80

Toro 31845

Shaft-Governor
(Superseded to 704636)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

81

Toro 30590A

Washer-Flat

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

82

Toro 35378

Gear Assy., Governor (Incl. Ref. #45)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

83

Toro 30588A

Spool-Governor

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

84

Toro 29193

Ring-Retaining

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

86

Toro 650833

Screw (1/4-20x1-3/16)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

87

Toro 650832

Screw (1/4-20x1-11/16)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

89

Toro 32589

Key-Flywheel

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

90

Toro 611093

Flywheel ASM

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

92

Toro 650880

Washer-Belleville

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

93

Toro 650881

Nut-Flywheel

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

100

Toro 35135

Solid State ASM

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

101

Toro 610118

Cover-Spark Plug

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

102

Toro 651024

Stud-Mounting, Solid State

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

103

Toro 651007

Screw (T-15, 10-24 x 15/16)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

110

Toro 35187

Wire-Ground
(Superseded to 702568)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

110A

Toro 37047

Wire-Ground

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

119

Toro 37256

Gasket-Head, Cylinder

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

120

Toro 37258

Cylinder Head

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

125

Toro 36934

Valve-Exhaust (STD)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

125

Toro 36936

Valve-Exhaust (1/32)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

126

Toro 36935

Valve-Intake (STD)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

126

Toro 36937

Intake Valve (1/32)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

127

Toro 650691

Washer-Flat

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

128

Toro 650690

Washer-Belleville

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

130

Toro 650697A

Screw (5/16-18 X 2-1/2)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

135

Toro 34645

Spark Plug-Resistor (R N 4C)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

139

Toro 33369

Bracket-Gear, Governor

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

140

Toro 650836

Screw (10-24x1/2)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

150

Toro 33507

Spring-Valve
(Superseded to 704725)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

151

Toro 33508

Keeper-Spring, Valve

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

153

Toro 35949

Guide-Rod, Push

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

154

Toro 650945

Stud-Arm, Rocker

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

155

Toro 35950

Arm-Rocker

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

157

Toro 650947

Nut-Jam

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

158

Toro 35466

Rod-Push

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

159

Toro 35952

Gasket-Cover, Rocker Arm

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

160

Toro 35953A

Cover-Arm, Rocker

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

161

Toro 30063

Screw

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

163

Toro 650890

Washer

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

169

Toro 27896A

Gasket-Cover, Valve

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

170

Toro 28423

Body-Breather
(Superseded to 704585)

Note: Obtain parts from www.tecumsehpower.com

$37.99

$

Usually ships in 3-6 days

0

171

Toro 28424

Element-Breather

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

172

Toro 28425

Cover-Valve

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

173

Toro 35350

Tube-Breather

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

174

Toro 650128

Screw

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

180

Toro 35954

Extension-Housing, Blower

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

181

Toro 30200

Screw (10-24 x 9/16)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

182

Toro 650517

Screw (T-30, 1/4-20 X 27-32)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

183

Toro 34583A

Bracket-Choke

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

184

Toro 33263

Gasket-Carburetor To Intake Pipe

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

185

Toro 37085

Pipe-Intake

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

186

Toro 37261

Link-Governor

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

186B

Toro 36653

Spring-Choke

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

200

Toro 35702

Bracket-Control (Incl. Ref. #203, 204 and 206)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

203

Toro 31342

Spring-Compression

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

204

Toro 651029

Screw (T-10, 5-40x7/16)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

206

Toro 610973

Terminal

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

207

Toro 37262

55106 TWO WHEEL TRA

Note: Obtain parts from www.tecumsehpower.com

$3.23

$

Usually ships in 3-6 days

0

209

Toro 650821

Screw (10-32 x 1/2)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

212

Toro 30773A

Bushing

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

212A

Toro 36288

Bushing

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

213

Toro 651056

Screw (10-24 X 29/32)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

215

Toro 35440

Knob-Control

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

216

Toro 37260

Lever-Bellcrank

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

219

Toro 35689

Rod-Choke

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

220

Toro 35438

Knob-Control
(Superseded to 742440)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

222

Toro 28820

Screw (10-32 x 1/2)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

223

Toro 650971

Screw (T-30, 5/16-18 X 7/8)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

224

Toro 33515A

Gasket-Pipe

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

260

Toro 37092

Blower Housing

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

262

Toro 29747B

Screw

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

264A

Toro 650378

Screw (T-30, 5/16-18x1-3/32)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

265

Toro 37086

Cover-Head, Cylinder

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

266

Toro 650876

Screw (5/16-18 X 1-9/32)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

269

Toro 35762

Gasket-Manifold, Exhaust

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

270

Toro 37263

55107 SNWTHWR ATTCH

Note: Obtain parts from www.tecumsehpower.com

$3.23

$

Usually ships in 3-6 days

0

270A

Toro 35829A

Liner-Port, Exhaust

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

271

Toro 35293

Plate-Locking

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

275

Toro 37264

Muffler

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

276

Toro 36348

Locking Plate

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

277

Toro 650877

Screw (5/16-18 X 4-1/2)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

279

Toro 651011

Screw

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

280

Toro 37265

Cylinder (Incl. 2, 20 150)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

281

Toro 33013

Screw

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

282

Toro 650760

Screw (8-32 x 3/8)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

285

Toro 35985B

Cup-Starter

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

287

Toro 29752

Nut and Lock Washer (1/4-28)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

290

Toro 30962

Line-Fuel

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

291

Toro 29774

Line-Fuel (8.62)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

292

Toro 26460

Clamp-Line, Fuel

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

295

Toro 35857

Valve-Shut Off, Fuel

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

298

Toro 650665

Screw (1/4-15x7/8)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

300

Toro 37099

Fuel Tank (Incl. 292 and 301)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

301

Toro 36246

Cap-Fuel

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

302

Toro 37098

Extension-Tank, Fuel

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

302A

Toro 650821

Screw (10-32 x 1/2)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

305

Toro 35574

Tube-Fill, Oil

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

307

Toro 35499

O-Ring

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

308

Toro 35539

Clip-Tube, Fill

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

310

Toro 35700

Dipstick

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

314

Toro 650873

Screw (1/4-20 x 3/4)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

315

Toro 611111

Coil-Alternator, 18 Watt (Includes 323)
(Superseded to 611113)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

323

Toro 611118

Terminal

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

328

Toro 35062

Key-Ignition

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

329

Toro 610973

Terminal

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

335

Toro 37096

Spring
(Superseded to 146322)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

335A

Toro 37087

Cover-Carburetor
(Superseded to 704890)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

338

Toro 650821

Screw (10-32 x 1/2)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

341

Toro 37093

Bracket-Tank, Fuel
(Superseded to 704891)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

342

Toro 792028

Screw (5/16-18 X 7/8)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

343

Toro 35079

Bracket-Switch, Key

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

345

Toro 37097

Baffle-Heat
(Superseded to 742513)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

345A

Toro 650821

Screw (10-32 x 1/2)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

350

Toro 570682A

Primer ASM

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

351

Toro 32180C

Line-Primer

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

355

Toro 590574

Handle-Starter, Mitten Grip

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

370C

Toro 36501

Decal-Primer, International Symbol

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

370H

Toro 37226

Decal-Choke

Note: Obtain parts from www.tecumsehpower.com

$3.23

$

Usually ships in 3-6 days

0

370I

Toro 37119

Decal-Warning (Bilingual)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

370K

Toro 36695

Decal-Tecumseh Logo for Top of Recoil Starter
(Superseded to 704857)

Note: Obtain parts from www.tecumsehpower.com

$

$

Not available

380

Toro 640169

Carburetor (Incl. Ref.# 184)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

390

Toro 590749

Starter-Rewind

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

396

Toro 33329E

Starter-Electric (110 Volt)

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

400

Toro 37257

Gasket Set

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable

420

Toro 730226A

Oil-Engine, S A E 5W30

Note: Obtain parts from www.tecumsehpower.com

$

$

Currently unavailable
