38560x81A - Yard King 38" Lawn Tractor (2000) Engine Mount Parts Diagram

38" Lawn Tractor

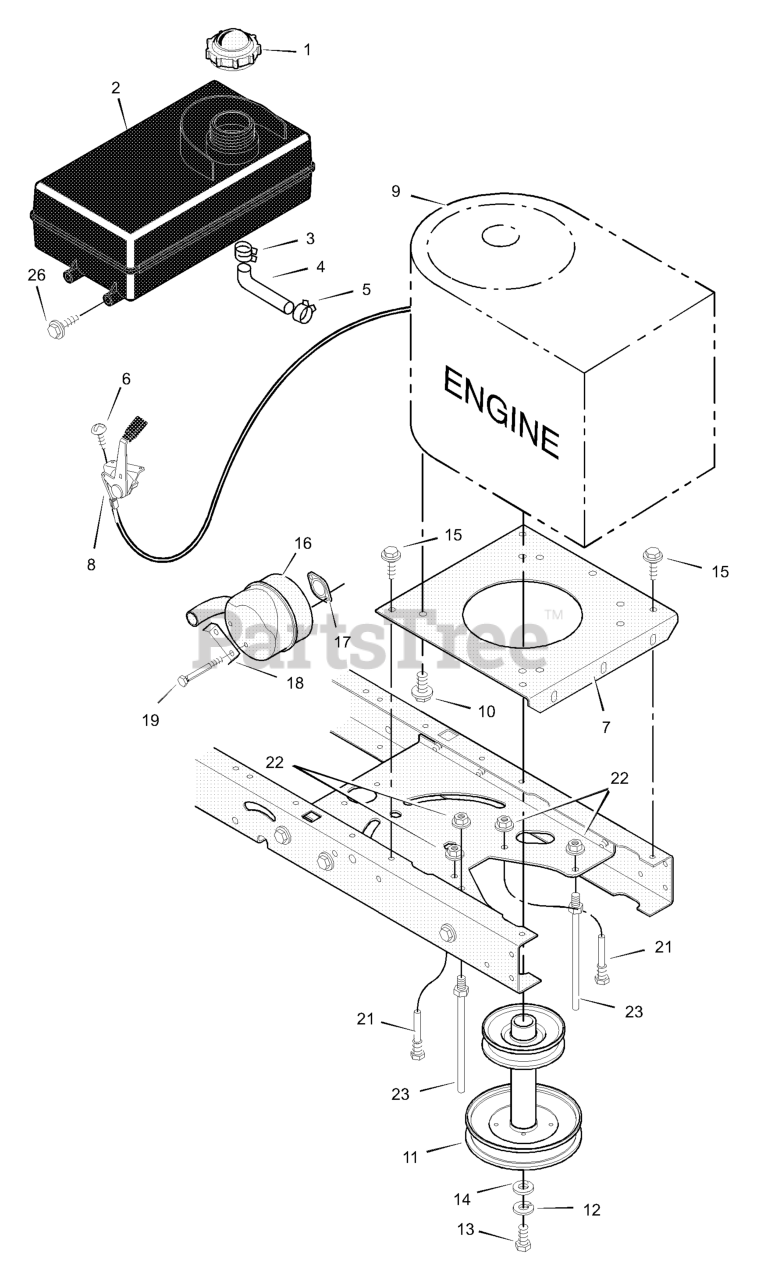

Engine Mount Parts Diagram

  • Title
1

Murray 092317MA

Fuel Cap

$10.99

$

In Stock, Qty 12

0

2

Murray 7601092MA

TANK, Fuel 1.4 Gal.

$78.99

$

In Stock, only 3 left!

0

3

Murray 095197MA

Hose Clamp
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

4

Murray 023717

Fuel Line

$7.99

$

In Stock, Qty 20+

0

5

Murray 095197MA

Hose Clamp
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

6

$4.49

$

In Stock, only 2 left!

0

7

Murray 094006E700

Plate, Engine

$

$

Currently unavailable

8

Murray 091989

Throttle Control

$

$

Not available

9

Engine *

$

$

Not available

10

Murray 0025X7MA

Bolt, Engine Mount
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

11

Murray 690440 Z

Stack Pulley Assembly

$

$

Currently unavailable

12

Murray 019X35MA

Lockwasher

$4.99

$

In Stock, only 2 left!

0

13

Murray 01X140MA

Bolt, Hex

$5.49

$

In Stock, only 1 left!

0

14

$

$

Not available

15

$

$

Not available

16

Murray 094120MA

Muffler

$55.99

$

Usually ships in 2-12 days

0

17

Murray 692236

GASKET, Exhaust

$5.49

$

In Stock, Qty 20+

0

18

Murray 092378MA

Lock, Screw

$5.49

$

In Stock, Qty 10

0

19

$10.99

$

In Stock, only 4 left!

0

21

Murray 093349MA

Guide, Belt

$4.49

$

Usually ships in 2-12 days

0

22

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

23

Murray 094066MA

Guide, Belt

$14.99

$

Usually ships in 2-12 days

0

26

$4.49

$

Usually ships in 2-12 days

0
