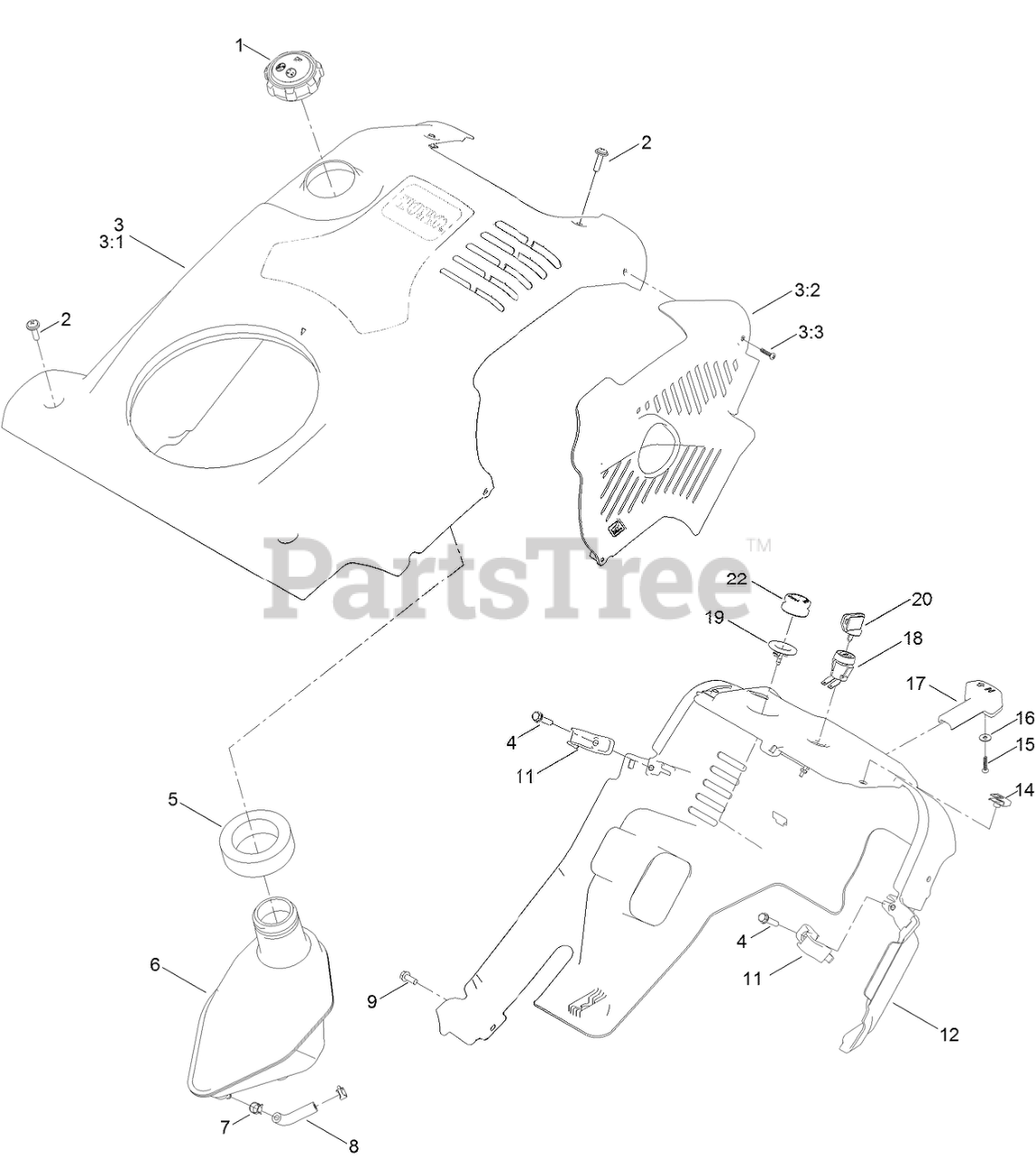

38563 (CCR 6053 R) - Toro 21" Quick Clear Snow Thrower (SN: 405012000 - 406349999) Shroud Assembly Parts Diagram

21" Quick Clear Snow Thrower

Shroud Assembly Parts Diagram

  • Title

1

Toro 138-3624

CAP-GAS

$11.99

$

In Stock, only 2 left!

0

2

Toro 137-3013

SCREW-PPH, SEMS

$2.99

$

In Stock, Qty 20+

0

3

Toro 133-5542

SHROUD ASM

$101.99

$

Usually ships in 3-6 days

0

3:1

Toro 133-5543

SHROUD

$

$

Currently unavailable

3:2

Toro 117-6035

BAFFLE-EXHAUST

$20.99

$

Usually ships in 3-6 days

0

3:3

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

4

Toro 137-3100

SCREW-PLASTITE, HWH
(Superseded to 137-3101)

$1.49

$

In Stock, Qty 15

0

5

Toro 114-3773

SEAL-TANK

$3.99

$

In Stock, only 2 left!

0

6

Toro 120-9848

TANK-FUEL, GAS

$71.99

$

In Stock, only 2 left!

0

7

Toro 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

0

8

Toro 109-0660

HOSE-FUEL

$4.49

$

In Stock, only 2 left!

0

9

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

11

Toro 108-4947

CLIP-SHROUD

$3.99

$

In Stock, only 2 left!

0

12

Toro 117-6036

SHROUD-LOWER

$77.99

$

In Stock, only 1 left!

0

14

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

15

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

16

Toro 137-3079

WASHER-PLAIN

$0.99

$

Usually ships in 3-6 days

0

17

Toro 117-9100

KNOB-CHOKE

$6.99

$

In Stock, Qty 19

0

18

Toro 40-5940

SWITCH

$17.99

$

In Stock, only 2 left!

0

19

Toro 44-2750

BODY-PRIMER

$9.49

$

In Stock, Qty 20+

0

20

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 20+

0

22

Toro 66-7460

BULB-PRIMER

$6.99

$

In Stock, Qty 20+

0
