38566 (1132) - Toro 32" Power Shift Snow Thrower (SN: 010000001 - 019999999) (1991) DIFFERENTIAL KIT MODLE NO. 38038 (OPTIONAL) Parts Diagram

32" Power Shift Snow Thrower

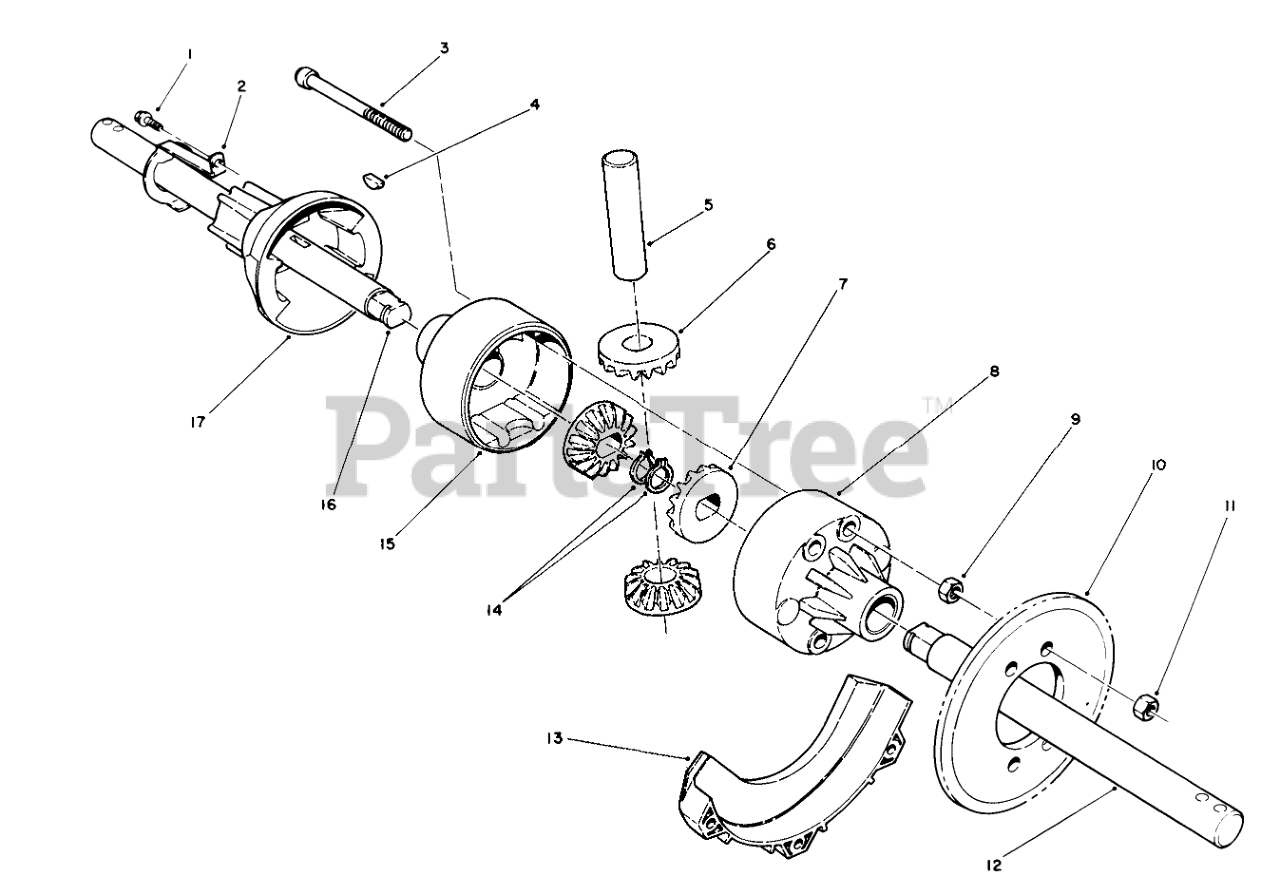

DIFFERENTIAL KIT MODLE NO. 38038 (OPTIONAL) Parts Diagram

  • Title

1

Toro 32144-73

SCREW-HWH
(Superseded to 104-2065)

$0.99

$

In Stock, Qty 20+

0

2

Toro 68-9260

SPRING-LOCKOUT

$

$

Not available

3

Toro 3274-82

SCREW-HSH

$

$

Not available

4

Toro 3257-41

KEY-WOODRUFF

$

$

Not available

5

Shaft-Cross

$

$

Not available

6

Gear-Cross Shaft Pinion

$

$

Not available

7

Gear-Side Pinion

$

$

Not available

8

Toro 68-9220

HOUSING ASSY - FEMALE

$

$

Not available

9

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, only 2 left!

0

10

Toro 68-9271

SPROCKET-27T

$

$

Not available

Toro 68-9270

SPROCKET, 32 T

$

$

Not available

11

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

12

Toro 68-9230

SHAFT - DIFFERENTIAL,LH

$

$

Not available

13

Toro 68-9310

GUARD-CHAIN

$35.99

$

In Stock, only 1 left!

0

14

Toro 32120-93

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

15

Toro 68-9210

HOUSING ASSY - MALE

$227.99

$

Usually ships in 3-6 days

0

16

Toro 68-9240

SHAFT - DIFFERENTIAL,RH

$372.99

$

Usually ships in 3-6 days

0

17

Toro 68-9250

COUPLING-DIFFERENTIAL

$

$

Not available

Toro 68-8410

COVER-BELT, LOWER

$104.99

$

Usually ships in 3-6 days

0

Toro 68-9390

DECAL

$

$

Not available

Toro 68-9280

Gear Set (Incl. Ref. #5-7)

$455.99

$

Usually ships in 3-6 days

0
