38566 (1132) - Toro 32" Power Shift Snow Thrower (SN: 020000001 - 029999999) (1992) Engine Briggs Stratton Model 252416 Type 0756-01 0757-01 Parts Diagram

32" Power Shift Snow Thrower

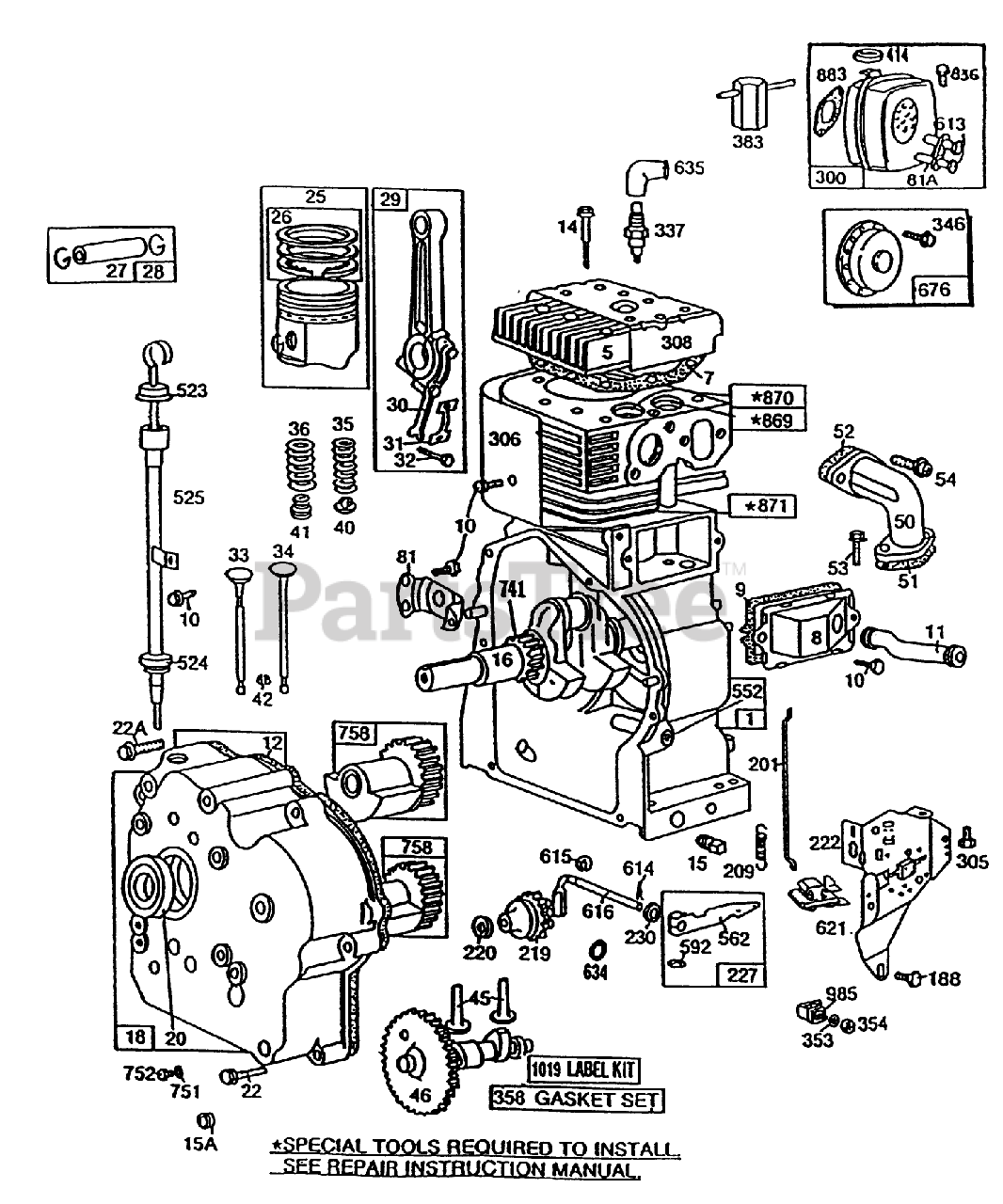

Engine Briggs Stratton Model 252416 Type 0756-01 0757-01 Parts Diagram

  • Title

1

Toro 396209

Cylinder Assembly

$

$

Currently unavailable

5

Toro 212917

Head-Cylinder

$

$

Not available

7

Toro 271075

Gasket-Cylinder Hd.

Note: Included in Gasket Set-Part No.391834

$

$

Currently unavailable

8

Toro 391575

Breather Assembly

$

$

Currently unavailable

9

Toro 27803

Gasket-Breather

Note: Included in Gasket Set-Part No.391834

$

$

Currently unavailable

10

Toro 93394

Screw

$

$

Currently unavailable

11

Toro 280112

Tube-Breather

$

$

Currently unavailable

12

Toro 272125

Gasket-Crankcase Cover 1/64" thick

$

$

Currently unavailable

Toro 272219

Gasket-Crankcase Cover (.005" Thick)

Note: Included in Gasket Set-Part No.391834

$

$

Currently unavailable

Toro 272220

Gasket-Crankcase Cover (.009" Thick)

Note: Included in Gasket Set-Part No.391834

$

$

Currently unavailable

Toro 272220

Gasket-Crankcase Cover (.009" Thick)

Note: Included in Carburetor Overhaul Kit-See Ref. Num 121

$

$

Currently unavailable

Toro 270857

Gasket-Crankcase Cover-.005" thick

Note: Included in Gasket Set-Part No.391834

$

$

Currently unavailable

Toro 270858

Gasket-Crankcase Cover-.009" Thick

Note: Included in Gasket Set-Part No.391834

$

$

Currently unavailable

14

Toro 93723

Screw-Cylinder Head

$

$

Currently unavailable

15

Toro 91084

Plug-Pipe

$

$

Currently unavailable

Toro 93418

Plug

Note: Included in Gasket Set-Part No.391834

$

$

Currently unavailable

16

Toro 399723

Crankshaft

$

$

Currently unavailable

18

Toro 391747

Cover Assy.-Crankcase

$

$

Currently unavailable

20

Toro 291675

Seal-Oil

$

$

Currently unavailable

22

Toro 93585

Screw-Sem

$

$

Currently unavailable

22A

Toro 93764

Screw-Crankcase

$

$

Currently unavailable

25

Toro 391285

Assembly-Standard

$

$

Currently unavailable

Toro 391287

Piston Assy.-.010" O.S.

Note: Included in Gasket Set-Part No.391834

$

$

Currently unavailable

Toro 391288

Piston Assy.-.020" O.S.

Note: Included in Gasket Set-Part No.391834

$

$

Currently unavailable

Toro 391289

Piston Assy.-.030" O.S.

Note: Included in Gasket Set-Part No.391834

$

$

Currently unavailable

26

Toro 391780

Ring Set (Std.)

$

$

Currently unavailable

Toro 391781

Ring Set (.010 O.S.)

Note: Included in Gasket Set-Part No.391834

$

$

Currently unavailable

Toro 391782

Ring Set (.020 O.S.)

Note: Included in Gasket Set-Part No.391834

$

$

Currently unavailable

Toro 391783

Ring Set (.030" O.S.)

Note: Included in Gasket Set-Part No.391834

$

$

Currently unavailable

27

Toro 260924

Lock-Piston Pin

$

$

Currently unavailable

28

Toro 299691

Pin-Piston (Std.)

$

$

Currently unavailable

Toro 391286

Pin-Piston (.005" OS.)

Note: Included in Gasket Set-Part No.391834

$

$

Currently unavailable

29

Toro 490348

Rod-Connecting

$

$

Currently unavailable

30

Toro 222329

Dipper-Conn. Rod

$

$

Currently unavailable

31

Toro 222299

Lock-Screw
(Superseded to 147567)

$

$

Not available

32

Toro 92909

Screw-Conn. Rod

$

$

Currently unavailable

33

Toro 261185

Valve-Exhaust

$

$

Currently unavailable

34

Toro 261462

Valve-Intake

$

$

Currently unavailable

35

Toro 65906

Spring-Valve

$

$

Currently unavailable

36

Toro 26828

Spring-Valve

$

$

Currently unavailable

40

Toro 221596

Retainer-Valve

$

$

Currently unavailable

41

Toro 292260

Retainer-Valve

$

$

Currently unavailable

42

Toro 93630

Retainer-Rotocoil

$

$

Currently unavailable

45

Toro 262248

Tappet

$

$

Currently unavailable

46

Toro 212897

Gear-Cam

$

$

Currently unavailable

50

Toro 490051

Elbow-Intake

Note: Included in Carburetor Overhaul Kit-See Ref. Num 121

$

$

Currently unavailable

51

Toro 270267

Gasket-Barab. Mtg

Note: Included in Gasket Set-Part No.391834

$

$

Currently unavailable

51

Toro 270267

Gasket-Barab. Mtg

Note: Included in Carburetor Overhaul Kit-See Ref. Num 121

$

$

Currently unavailable

52

Toro 270872

Gasket-Intake

Note: Included in Carburetor Overhaul Kit-See Ref. Num 121

$

$

Currently unavailable

52

Toro 270872

Gasket-Intake

Note: Included in Gasket Set-Part No.391834

$

$

Currently unavailable

52

Toro 93415

Screw

$

$

Currently unavailable

54

Toro 92308

Screw

$

$

Currently unavailable

81

Toro 222407

Retainer-Counterweight

$

$

Currently unavailable

81A

Toro 223016

Screw

$

$

Currently unavailable

188

Toro 93535

Crew

$

$

Currently unavailable

201

Toro 261236

Link-Governor

$

$

Currently unavailable

209

Toro 260695

Spring

$

$

Currently unavailable

219

Toro 391737

Gear Governor

$

$

Currently unavailable

220

Toro 221551

Washer-Thrust

$

$

Currently unavailable

222

Toro 399152

Plate-Gov. Control

$

$

Currently unavailable

227

Toro 396775

Lever-Assy-Governor

$

$

Currently unavailable

230

Toro 222450

DISCONTINUE-DESA

$

$

Not available

300

Toro 491626

Muffler-Exhaust

$

$

Currently unavailable

305

Toro 93158

Screw

$

$

Currently unavailable

306

Toro 222744

Shield-Cylinder

$

$

Currently unavailable

308

Toro 222306

Cover Cyl. Head

$

$

Currently unavailable

337

Toro 293918

Plug-Spark

$

$

Currently unavailable

Toro 802592

Plug-Spark

$

$

Currently unavailable

346

Toro 93705

Screw

$

$

Currently unavailable

353

Toro 92791

Washer-Lock

$

$

Currently unavailable

354

Toro 90576

Nut

$

$

Currently unavailable

358

Toro 391834

Gasket Set

$

$

Currently unavailable

383

Toro 89838

Wrench-Plug, Spark

$

$

Currently unavailable

414

Toro 231109

Spacer

$

$

Currently unavailable

523

Toro 490665

Dipstick/Filler Oil

$

$

Currently unavailable

524

Toro 68838

Seal-Fill Tube

$

$

Currently unavailable

525

Toro 392283

Tube-Oil Filler

$

$

Currently unavailable

552

Toro 231598

Bushing-Gov.Crank

$

$

Currently unavailable

562

Toro 92613

Bolt

$

$

Currently unavailable

592

Toro 231082

Nut (Governor Control Lever)

$

$

Currently unavailable

613

Toro 93927

Screw

$

$

Currently unavailable

614

Toro 93306

Pin-Cotter

$

$

Currently unavailable

615

Toro 93307

Retainer-Ring

$

$

Currently unavailable

616

Toro 231057

Ring-Retainer

$

$

Currently unavailable

621

Toro 396847

Switch

$

$

Currently unavailable

634

Toro 419323

Seal-Oil

$

$

Currently unavailable

635

Toro 66538

Boot-Plug, Spark

$

$

Currently unavailable

676

Toro 396903

Deflector-Exhaust

$

$

Currently unavailable

741

Toro 262135

Gear-Timing

$

$

Currently unavailable

751

Toro 22355

Washer

$

$

Currently unavailable

752

Toro 93554

Screw

$

$

Currently unavailable

758

Toro 391581

Counterweight Bearing Ass-y

$

$

Currently unavailable

836

Toro 92747

Screw

$

$

Currently unavailable

869

Toro 261463

Seat-Intake Valve

$

$

Currently unavailable

870

Toro 210940

Seat-Exhaust Valve

$

$

Currently unavailable

871

Toro 231218

Guide-Valve
(Superseded to 702263)

$

$

Not available

883

Toro 270917

Gasket Exhaust

$

$

Currently unavailable

985

Toro 398525

Insulator

$

$

Currently unavailable

1019

Toro 491195

Decal Kit

$

$

Currently unavailable
