38566 (1132) - Toro 32" Power Shift Snow Thrower (SN: 049000001 - 049999999) (1994) ENGINE BRIGGS & STRATTON MODELS 252416-0756-01 & 252416-0757-01 Parts Diagram

32" Power Shift Snow Thrower

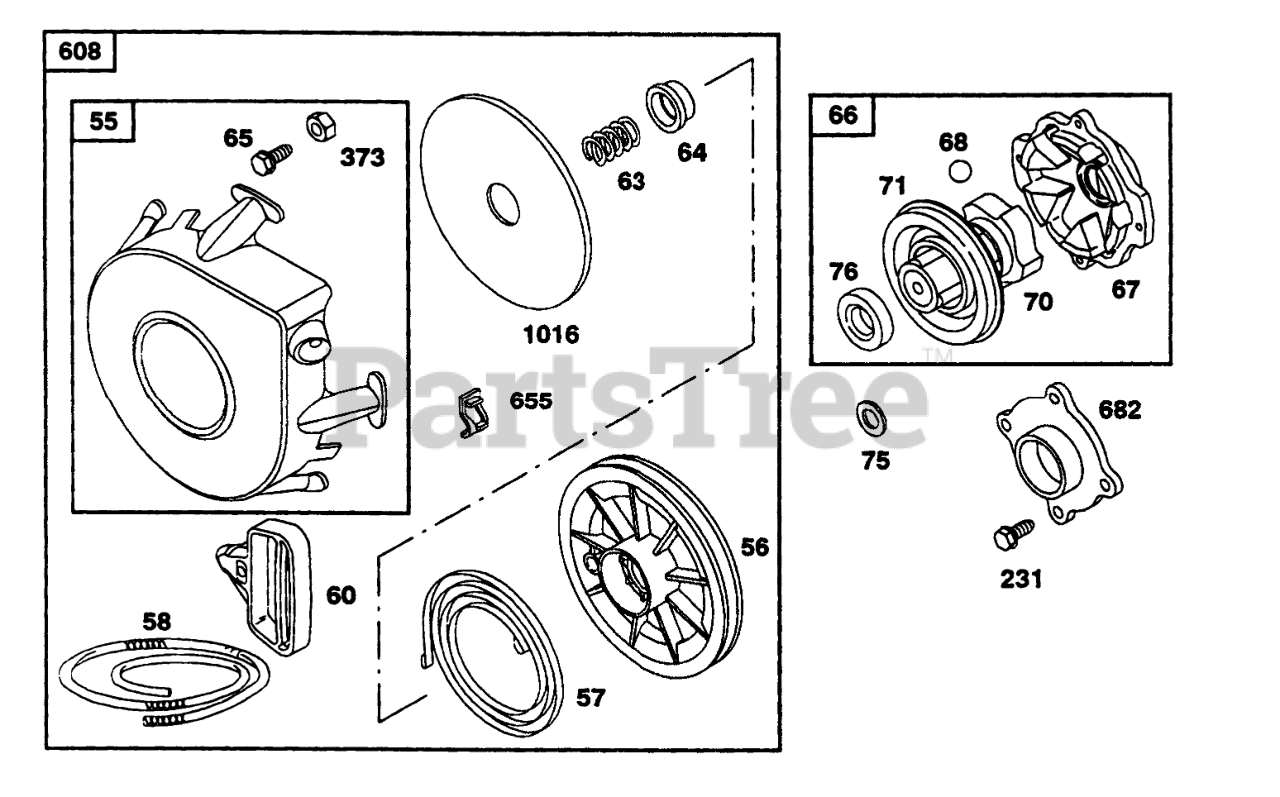

ENGINE BRIGGS & STRATTON MODELS 252416-0756-01 & 252416-0757-01 Parts Diagram

  • Title

55

Briggs & Stratton 398099

Housing-Rewind Starter

$17.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 295871

Pulley-Rewind Starter (Includes 63" Rope)

$14.99

$

In Stock, only 2 left!

0

57

Briggs & Stratton 490179

Spring-Rewind

$14.99

$

In Stock, Qty 10

0

58

Briggs & Stratton 66884

Rope-Rewind
(Superseded to 692188)

$8.49

$

In Stock, only 2 left!

0

60

Briggs & Stratton 398101

Handle-Grip
(Superseded to 699334)

$13.99

$

In Stock, only 1 left!

0

63

Briggs & Stratton 260414

Spring
(Superseded to 690547)

$8.49

$

In Stock, only 4 left!

0

64

Briggs & Stratton 230543

Adapter
(Superseded to 691920)

$11.99

$

In Stock, only 1 left!

0

65

Briggs & Stratton 94128

Screw
(Superseded to 690837)

$3.49

$

In Stock, Qty 18

0

66

Briggs & Stratton 399671

Clutch-Starter

$34.99

$

In Stock, Qty 12

0

67

Briggs & Stratton 394897

Ball-Clutch

$36.99

$

In Stock, only 2 left!

0

68

Briggs & Stratton 63770

Ball
(Superseded to 691604)

$4.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 298799

Ratchet
(Superseded to 691945)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 394506

Clutch
(Superseded to 691359)

$9.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 224061

Washer
(Superseded to 690582)

$4.49

$

In Stock, only 2 left!

0

76

Briggs & Stratton 68238

Washer
(Superseded to 691359)

$9.99

$

Usually ships in 2-12 days

0

231

Briggs & Stratton 94238

Screw

$3.99

$

Usually ships in 2-12 days

0

373

Briggs & Stratton 92987

Nut
(Superseded to 690800)

$3.99

$

In Stock, only 3 left!

0

608

Briggs & Stratton 397982

Nut-Hex.

$

$

Not available

655

Briggs & Stratton 222598

Anchor Spring
(Superseded to 691734)

$4.99

$

Usually ships in 2-12 days

0

682

Briggs & Stratton 211516

Shield

$4.49

$

Usually ships in 2-12 days

0

1016

Briggs & Stratton 490817

Spacer

$9.49

$

In Stock, only 2 left!

0
