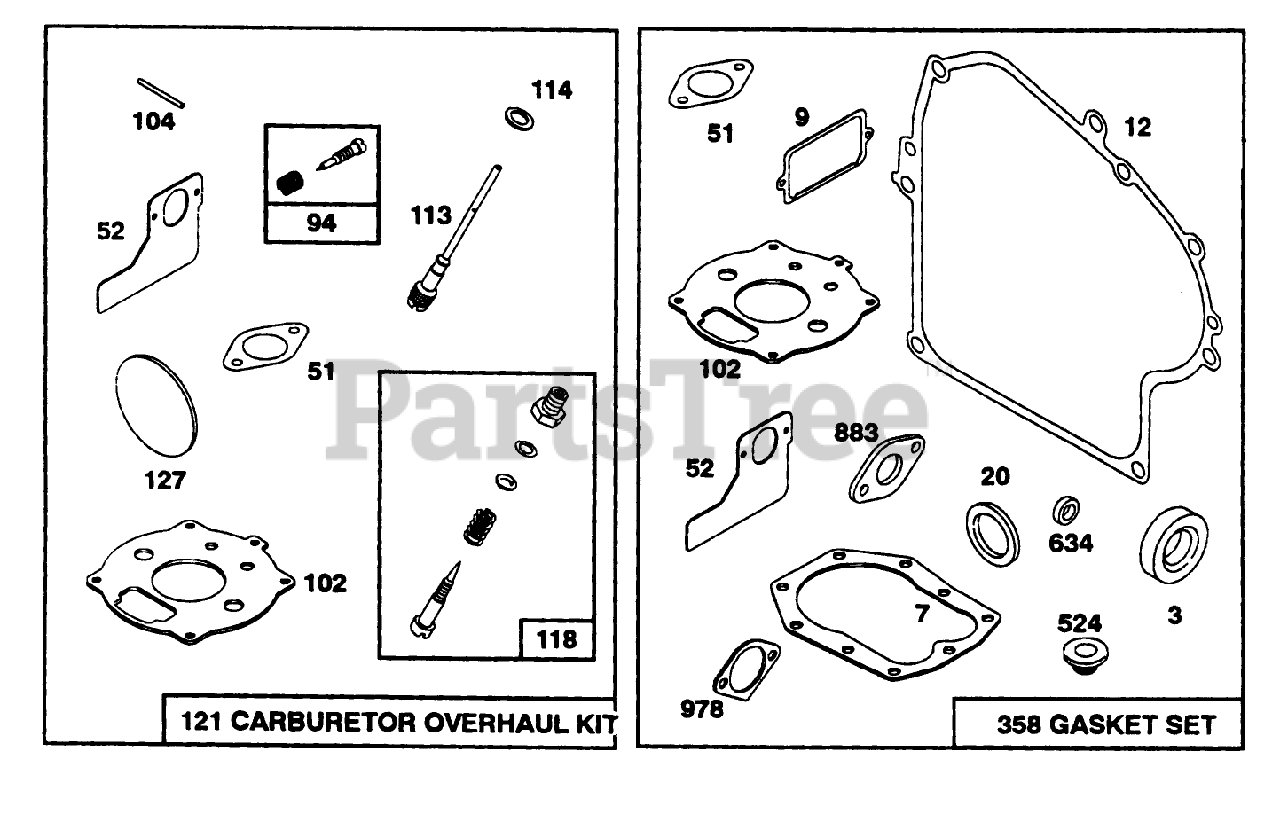

38566 (1132) - Toro 32" Power Shift Snow Thrower (SN: 049000001 - 049999999) (1994) Engine Briggs Stratton Models 252416-0756-01 252416-0757-01 8 Parts Diagram

32" Power Shift Snow Thrower

Engine Briggs Stratton Models 252416-0756-01 252416-0757-01 8 Parts Diagram

  • Title

3

Toro 391086

Seal-Oil

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

7

Toro 271866

Gasket-Cylinder Head

$

$

Currently unavailable

9

Toro 27803

Gasket-Breather

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

12

Toro 271704

Gasket-Crankcase Cover, 1/64" thick

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

Toro 272219

Gasket-Crankcase Cover (.005" Thick)

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

Toro 272220

Gasket-Crankcase Cover (.009" Thick)

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

20

Toro 291675

Seal-Oil

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

51

Toro 270267

Gasket-Barab. Mtg

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

51

Toro 270267

Gasket-Barab. Mtg

Note: Included in Carburetor Overhaul Kit-Part No. 394989.

$

$

Currently unavailable

52

Toro 270872

Gasket-Intake

Note: Included in Carburetor Overhaul Kit-Part No. 394989.

$

$

Currently unavailable

52

Toro 270872

Gasket-Intake

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

94

Toro 292681

Valve Assembly

Note: Included in Carburetor Overhaul Kit-Part No. 394989.

$

$

Currently unavailable

102

Toro 270268

Gasket-Carburetor Body

Note: Included in Carburetor Overhaul Kit-Part No. 394989.

$

$

Currently unavailable

102

Toro 270268

Gasket-Carburetor Body

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

104

Toro 230896

Pin-Float

Note: Included in Carburetor Overhaul Kit-Part No. 394989.

$

$

Currently unavailable

113

Toro 394730

Nozle-Carburetor

Note: Included in Carburetor Overhaul Kit-Part No. 394989.

$

$

Currently unavailable

114

Toro 68667

Gasket-Nozzle

Note: Included in Carburetor Overhaul Kit-Part No. 394989.

$

$

Currently unavailable

118

Toro 99525

Value-Needle

Note: Included in Carburetor Overhaul Kit-Part No. 394989.

$

$

Currently unavailable

121

Toro 394989

Carburetor Overhaul Kit

$

$

Currently unavailable

127

Toro 221747

Plug-Welch

Note: Included in Carburetor Overhaul Kit-Part No. 394989.

$

$

Currently unavailable

358

Toro 391834

Gasket Set

$

$

Currently unavailable

524

Toro 68838

Seal-Fill Tube

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

634

Toro 491323

Seal-Oil

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

883

Toro 270917

Gasket Exhaust

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

978

Toro 271736

Gasket-Oil Switch

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable
