38569 (CCR 6053 ES) - Toro 21" Quick Clear Snow Thrower (SN: 312000001 - 312999999) (2012) ELECTRIC START ENGINE COMPONENT ASSEMBLY NO. 119-1976 Parts Diagram

21" Quick Clear Snow Thrower

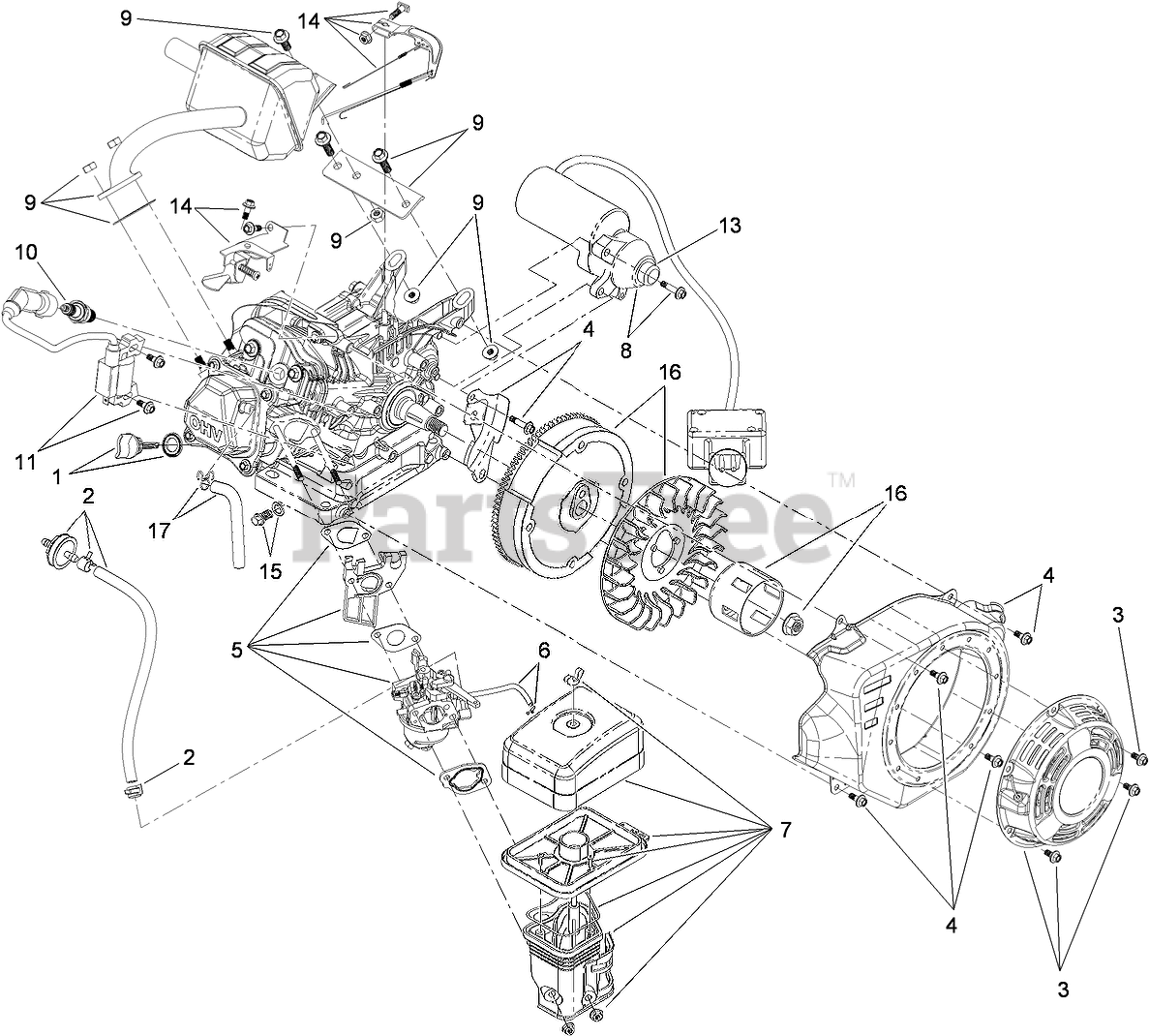

ELECTRIC START ENGINE COMPONENT ASSEMBLY NO. 119-1976 Parts Diagram

  • Title

1

Toro 119-1944

OBS DIPSTICK AND O-RING KIT
(Superseded to 127-9374)

$12.99

$

In Stock, only 2 left!

0

2

Toro 119-1953

FUEL LINE, FILTER AND CLAMP KIT
(Superseded to 120-4402)

$20.99

$

Usually ships in 3-6 days

0

3

Toro 119-1945

RECOIL KIT
(Superseded to 121-4252)

$101.99

$

In Stock, only 3 left!

0

4

Toro 119-1946

BLOWER SHROUD KIT

$89.99

$

Usually ships in 3-6 days

0

5

Toro 119-1571

CARBURETOR, GASKETS, AND SHIELD KIT
(Superseded to 120-4418)

$96.99

$

In Stock, only 2 left!

0

6

Toro 119-1949

PRIMER LINE KIT
(Superseded to 127-9376)

$34.99

$

In Stock, only 2 left!

0

7

Toro 119-1950

HEATER BOX KIT
(Superseded to 121-4282)

$53.99

$

In Stock, only 2 left!

0

8

Toro 119-1979

ELECTRIC STARTER KIT

$289.99

$

Usually ships in 3-6 days

0

8:1

STARTER MOTOR (270360070-0001)

Note: Not serviced separately

$

$

Not available

8:2

BOLT FLANGE (380140095-0005)

Note: Not serviced separately

$

$

Not available

8:3

BOLT FLANGE (380140102-0004)

Note: Not illustrated

$

$

Not available

9

Toro 119-1954

MUFFLER KIT

$86.99

$

Usually ships in 3-6 days

0

10

Toro 119-1901

PLUG-SPARK
(Superseded to 81-3250)

$3.99

$

In Stock, Qty 20+

0

11

Toro 119-1959

IGNITION KIT
(Superseded to 136-7766)

$86.99

$

In Stock, only 2 left!

0

12

Toro 119-1955

GASKET AND SEAL KIT

Note: Not illustrated

$86.99

$

Usually ships in 3-6 days

0

13

Toro 119-1956

PINION KIT

$84.99

$

Usually ships in 3-6 days

0

14

Toro 119-1957

GOVERNOR KIT
(Superseded to 136-7765)

$28.99

$

In Stock, only 4 left!

0

15

Toro 119-1923

DRAIN PLUG KIT

$8.49

$

In Stock, only 2 left!

0

16

Toro 119-1958

FLYWHEEL KIT

$159.99

$

Usually ships in 3-6 days

0

17

Toro 119-1921

BREATHER TUBE KIT
(Superseded to 139-0630)

$3.99

$

In Stock, only 2 left!

0
