38570 (828) - Toro 28" Power Shift Snow Thrower (SN: 039000001 - 039999999) (1993) Snow Cab Assembly No. 68-9500 (optional) Parts Diagram

28" Power Shift Snow Thrower

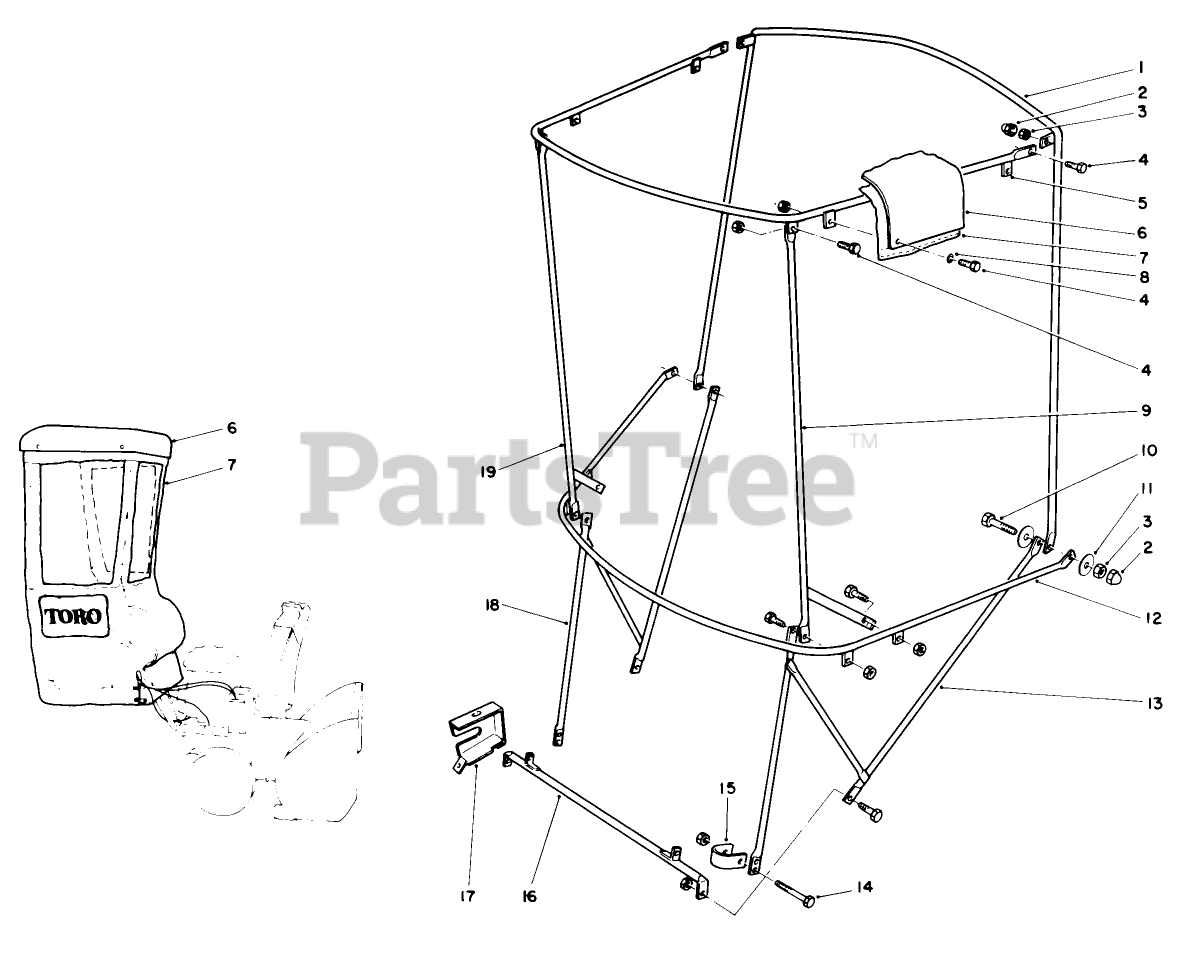

Snow Cab Assembly No. 68-9500 (optional) Parts Diagram

  • Title

1

Toro 70-2260

DISCONTINUED

$

$

Not available

2

Toro 70-2240

DISCONTINUED

$

$

Not available

3

Toro 32153-4

NUT-HEX, SIDE DEFORM

$0.99

$

Usually ships in 3-6 days

0

4

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

5

Toro 70-2250

DISCONTINUED

$

$

Not available

6

Top-Plastic

Note: Not sold separate

$

$

Not available

7

Cover-Vinyl

Note: Not sold separate

$

$

Not available

8

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 11

0

9

Toro 70-2220

DISCONTINUED

$

$

Not available

10

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 3256-58

See Supercession: 3256-55
(Superseded to 3256-55)

$5.49

$

In Stock, only 2 left!

0

12

Toro 70-2270

DISCONTINUED

$

$

Not available

13

Toro 66-6230

DISCONTINUED

$

$

Not available

14

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Toro 66-6240

CLAMP

$

$

Not available

16

Toro 66-6210

DISCONTINUED

$

$

Not available

17

Toro 63-3330

DISCONTINUED

$

$

Not available

18

Toro 66-6220

RH BRACKET

$227.99

$

Usually ships in 3-6 days

0

19

Toro 70-2230

DISCONTINUED

$

$

Not available

Toro 74-1190

DISCONTINUED

Note: Optional equipment. Not Illustrated

$

$

Not available
