38574 (828) - Toro 28" Power Shift Snow Thrower (SN: 020000001 - 029999999) (1992) Electric Starter Motor Kit No. 37-4810 (optional) Parts Diagram

28" Power Shift Snow Thrower

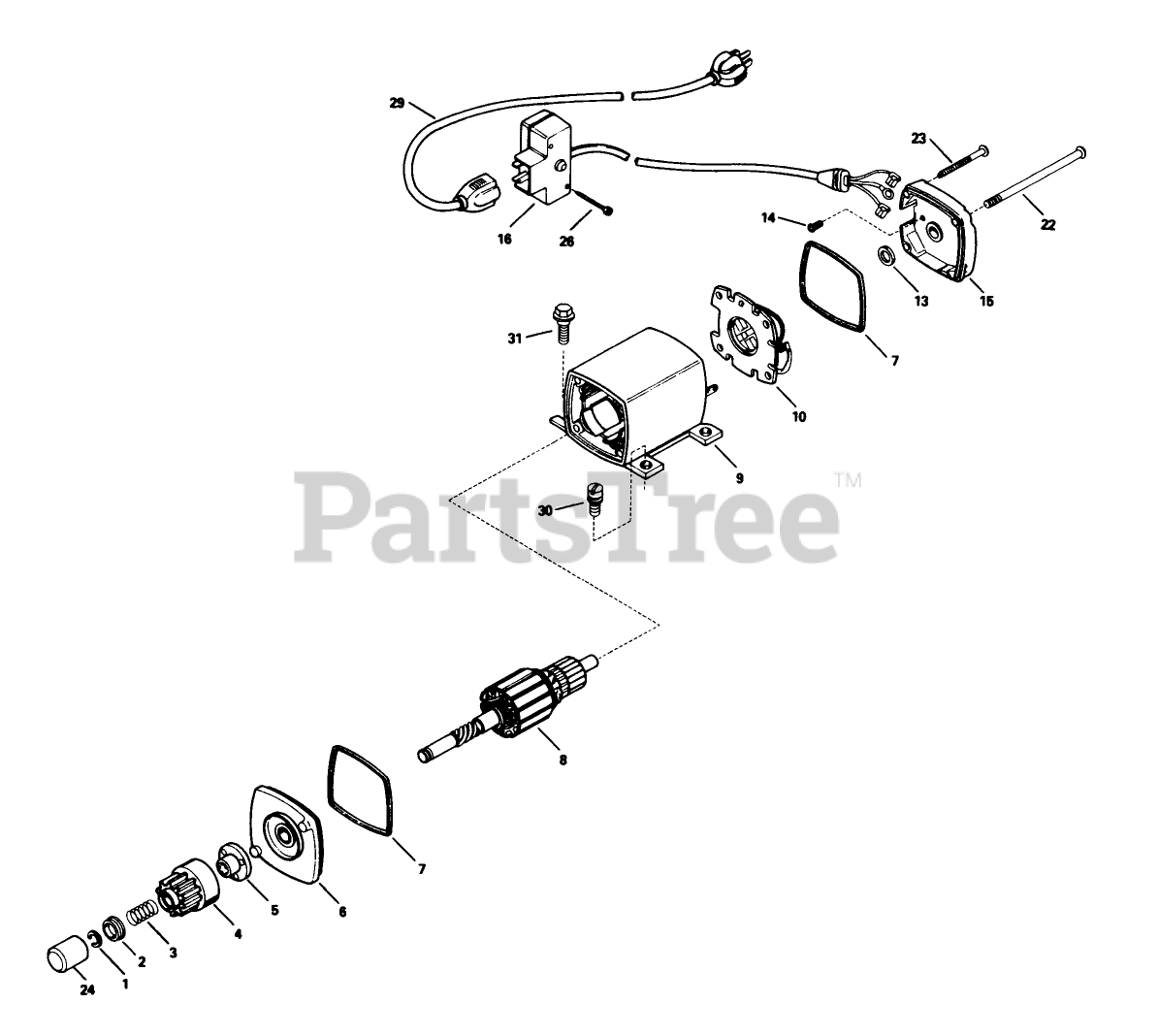

Electric Starter Motor Kit No. 37-4810 (optional) Parts Diagram

  • Title

1

Toro 33842

Ring-Retainer

Note: Obtain individual items from your local Tecumseh dealer.

$

$

Currently unavailable

2

Toro 33430

Retainer-Spring

Note: Obtain individual items from your local Tecumseh dealer.

$

$

Currently unavailable

3

Toro 33431

Spring-Anti Drift

Note: Obtain individual items from your local Tecumseh dealer.

$

$

Not available

4

Toro 33432

Gear
(Superseded to 704720)

Note: Obtain individual items from your local Tecumseh dealer.

$

$

Not available

5

Toro 33433

Nut-Engaging

Note: Obtain individual items from your local Tecumseh dealer.

$

$

Currently unavailable

6

Toro 35449

Cap Assembly-Cap End (Incl. Ref. #7)

Note: Obtain individual items from your local Tecumseh dealer.

$

$

Currently unavailable

7

Toro 35450

O-Ring

Note: Obtain individual items from your local Tecumseh dealer.

$

$

Currently unavailable

8

Toro 33541A

Armature

Note: Obtain individual items from your local Tecumseh dealer.

$

$

Currently unavailable

9

Toro 35451

Housing Assy.

Note: Obtain individual items from your local Tecumseh dealer.

$

$

Currently unavailable

10

Toro 35452

Card ASM
(Superseded to 704754)

Note: Obtain individual items from your local Tecumseh dealer.

$

$

Not available

13

Toro 590500

Washer-Thrust

Note: Obtain individual items from your local Tecumseh dealer.

$

$

Currently unavailable

14

Toro 33441

Screw-Ground

Note: Obtain individual items from your local Tecumseh dealer.

$

$

Currently unavailable

15

Toro 35453

Cap Assembly (Incl. Ref. #7)

Note: Obtain individual items from your local Tecumseh dealer.

$

$

Currently unavailable

16

Toro 35454

Box Assembly-Switch (Incl. Ref. #26)

Note: Obtain individual items from your local Tecumseh dealer.

$

$

Not available

22

Toro 35455

Bolt-Case

Note: Obtain individual items from your local Tecumseh dealer.

$

$

Not available

23

Toro 35456

Screw-Ground

Note: Obtain individual items from your local Tecumseh dealer.

$

$

Currently unavailable

24

Toro 33451

Cover-Dust

Note: Obtain individual items from your local Tecumseh dealer.

$

$

Currently unavailable

26

Toro 650819

Screw

Note: Obtain individual items from your local Tecumseh dealer.

$

$

Currently unavailable

29

Toro 32450A

Cord-Extension

Note: Obtain individual items from your local Tecumseh dealer.

$

$

Currently unavailable

30

Toro 30063

Screw

Note: Obtain individual items from your local Tecumseh dealer.

$

$

Currently unavailable

31

Toro 650820

Screw (1/4-20x1/2)

Note: Obtain individual items from your local Tecumseh dealer.

$

$

Currently unavailable
