38574 (828) - Toro 28" Power Shift Snow Thrower (SN: 020000001 - 029999999) (1992) Rewind Tecumseh Starter No. 590630 Parts Diagram

28" Power Shift Snow Thrower

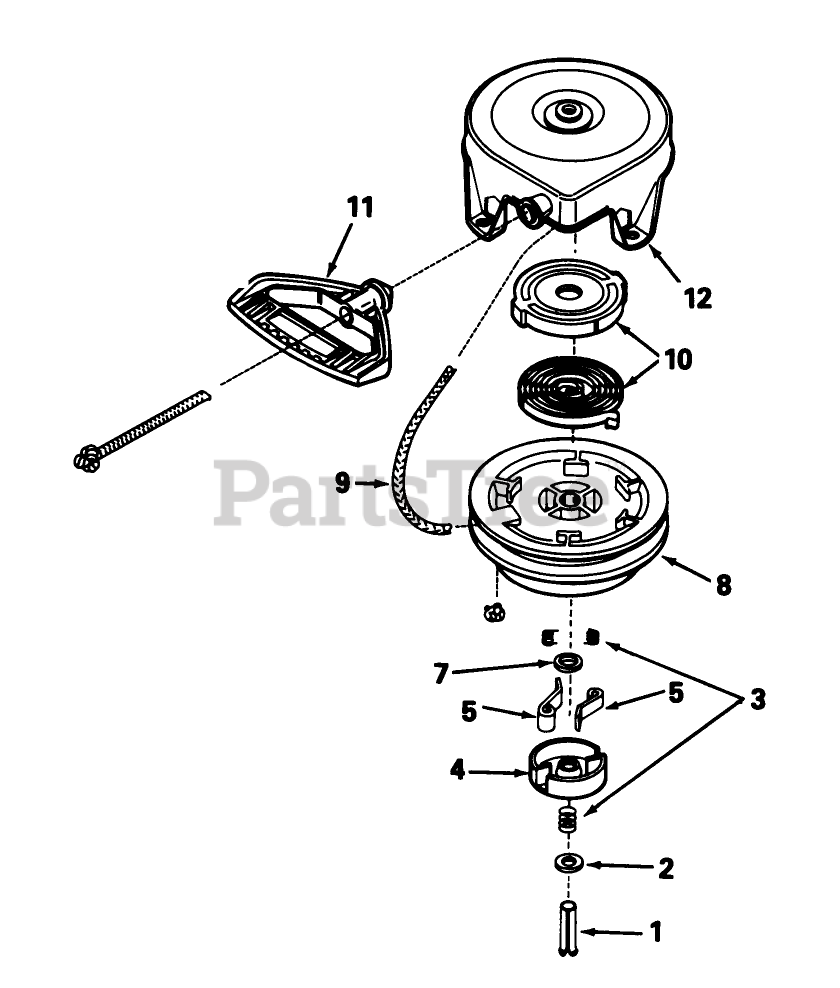

Rewind Tecumseh Starter No. 590630 Parts Diagram

  • Title

1

Toro 590599A

Pin, Spring (Incl. Ref. #7)

$

$

Currently unavailable

2

Toro 590600

Washer

$

$

Currently unavailable

3

Toro 590651

Spring Assembly

$

$

Currently unavailable

4

Toro 590627

Retainer

$

$

Currently unavailable

5

Toro 590641

Dog-Starter

$

$

Currently unavailable

7

Toro 590601

Washer

$

$

Currently unavailable

8

Toro 590628

Pulley

$

$

Currently unavailable

9

Toro 590451a

Rope-Starter

$

$

Currently unavailable

10

Toro 590629

Spring Keeper Assy.

$

$

Currently unavailable

11

Toro 590574

Handle-Starter, Mitten Grip

Note: Not Included in Starter Assembly. Compliance with Radio Interference Regulations Certified. Certifie Conforme au Reglement sur le Brouillaae Radioelectriaue.

$

$

Currently unavailable

12

Toro 590631

Housing Assy., Starter

$

$

Currently unavailable
