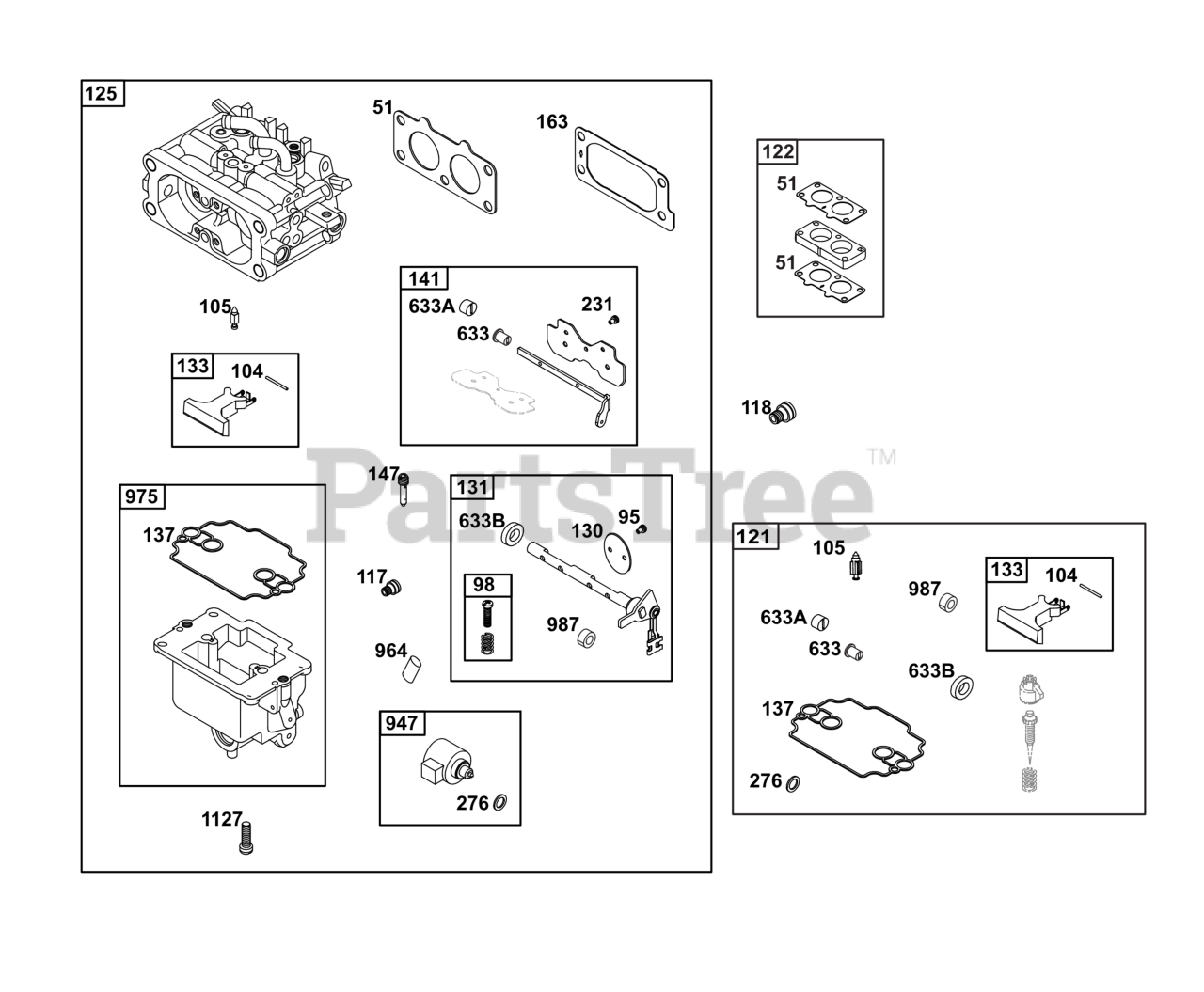

385777-0009-B5 - Briggs & Stratton Vertical Engine Carburetor Group Parts Diagram

Vertical Engine

Carburetor Group Parts Diagram

  • Title

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

95

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve)

$5.99

$

In Stock, only 2 left!

0

98

Briggs & Stratton 809716

KIT, Idle Speed

$41.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 690739

PIN, Float Hinge

$6.99

$

In Stock, only 2 left!

0

105

Briggs & Stratton 809759

VALVE, Float Needle

$

$

Not available

117

Briggs & Stratton 809635

JET, Main

Note: (Standard)

$29.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 842153

JET, Main

Note: (High Altitude)

$29.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 843787

KIT, Carburetor Overhaul

Note: (Service Kits can include parts not for this engine.)

$

$

Not available

122

Briggs & Stratton 690870

SPACER, Carburetor

$16.99

$

In Stock, only 2 left!

0

125

Briggs & Stratton 844371

CARBURETOR

$337.99

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 809642

VALVE, Throttle

$23.99

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 842068

KIT, Throttle Shaft

$

$

Not available

133

Briggs & Stratton 809637

FLOAT, Carburetor

$

$

Not available

137

Briggs & Stratton 809645

GASKET, Float Bowl

$10.99

$

Usually ships in 2-12 days

0

141

Briggs & Stratton 843785

KIT, Choke Shaft

$55.99

$

In Stock, only 1 left!

0

147

Briggs & Stratton 845727

JET, Pilot

$

$

Not available

163

GASKET, Air Cleaner

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

231

Briggs & Stratton 690718

SCREW

Note: (Choke Valve)

$5.99

$

In Stock, only 2 left!

0

276

Briggs & Stratton 806476

WASHER, Sealing

$7.49

$

In Stock, Qty 10

0

633

Briggs & Stratton 809638

SEAL, Choke/Throttle Shaft

$7.49

$

In Stock, only 1 left!

0

633A

Briggs & Stratton 809644

SEAL, Choke/Throttle Shaft

$8.99

$

Usually ships in 2-12 days

0

633B

Briggs & Stratton 809641

SEAL, Choke/Throttle Shaft

$7.49

$

Usually ships in 2-12 days

0

947

Briggs & Stratton 842109

SOLENOID, Fuel

$

$

Not available

964

Briggs & Stratton 809640

CAP, Connector

$11.99

$

Usually ships in 2-12 days

0

975

Briggs & Stratton 844947

BOWL, Float

$

$

Not available

987

Briggs & Stratton 809639

SEAL, Choke/Throttle Shaft

$7.99

$

Usually ships in 2-12 days

0

1127

Briggs & Stratton 809715

SCREW

Note: (Float Bowl To Carburetor Body)

$

$

Not available
