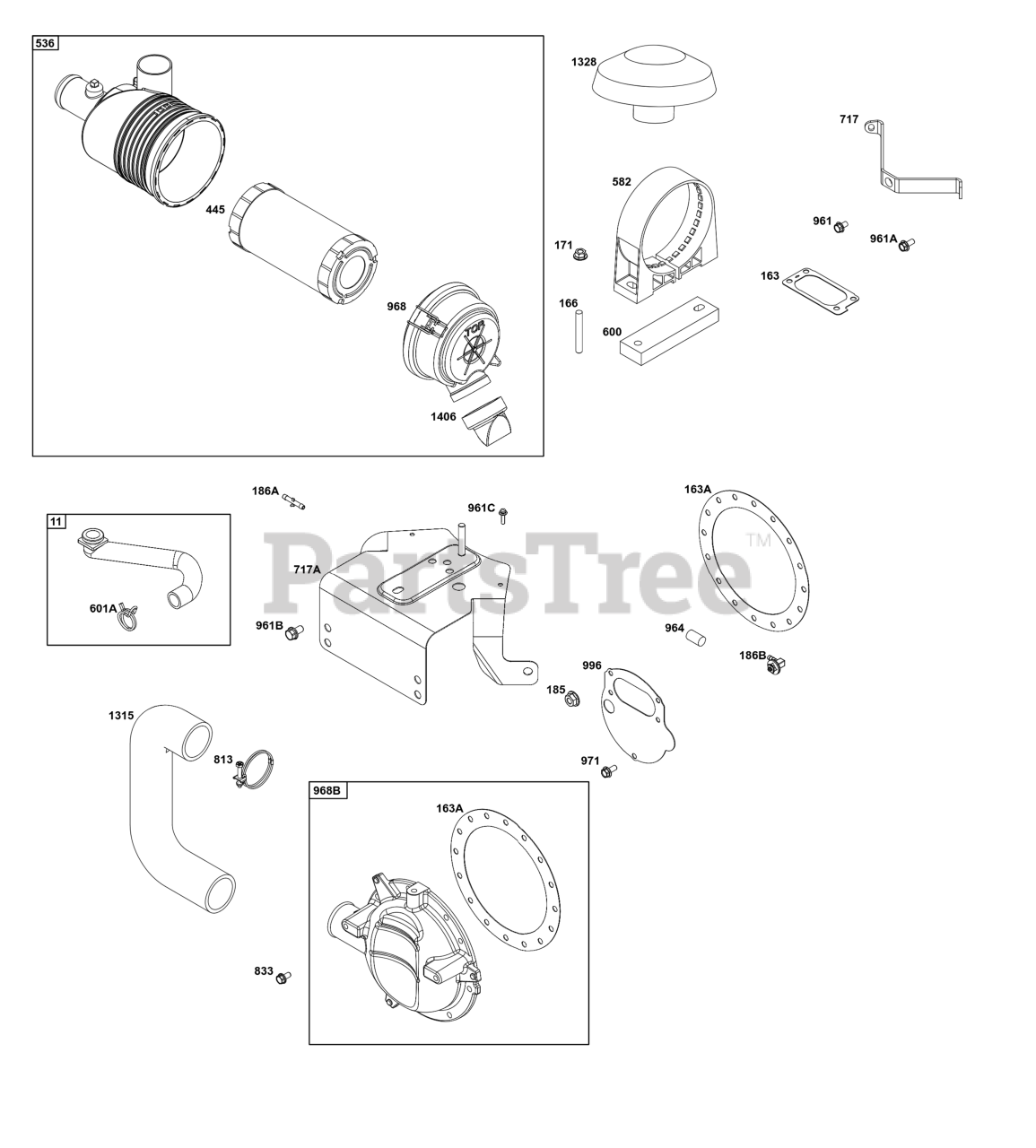

385777-0011-G1 - Briggs & Stratton Vertical Engine Air Cleaner Group Parts Diagram

Vertical Engine

Air Cleaner Group Parts Diagram

  • Title

11

Briggs & Stratton 806379

TUBE, Breather

$15.99

$

In Stock, only 2 left!

0

163

Briggs & Stratton 692087

GASKET, Air Cleaner

$5.49

$

In Stock, Qty 16

0

163A

Briggs & Stratton 841823

GASKET, Air Cleaner

$6.99

$

In Stock, only 2 left!

0

166

Briggs & Stratton 842446

STUD

Note: (Air Cleaner)

$9.49

$

Usually ships in 2-12 days

0

171

Briggs & Stratton 690941

NUT

Note: (Air Cleaner)

$4.99

$

In Stock, Qty 7

0

185

Briggs & Stratton 690939

NUT

Note: (Air Cleaner Base)

$3.49

$

In Stock, only 2 left!

0

186A

Briggs & Stratton 845121

CONNECTOR, Hose

$6.49

$

Usually ships in 2-12 days

0

186B

Briggs & Stratton 845141

CONNECTOR, Hose

$10.99

$

In Stock, only 4 left!

0

445

Briggs & Stratton 820263

FILTER, A/C Cartridge

$27.99

$

In Stock, only 2 left!

0

536

Briggs & Stratton 825117

CLEANER, Air

$232.99

$

In Stock, only 1 left!

0

582

Briggs & Stratton 807381

CLAMP, Air Cleaner

$70.99

$

In Stock, only 1 left!

0

600

Briggs & Stratton 843564

SPACER, Air Cleaner

$53.99

$

Usually ships in 2-12 days

0

601A

Briggs & Stratton 691145

CLAMP, Hose

$3.99

$

Usually ships in 2-12 days

0

717

Briggs & Stratton 806440

STRAP/STUD, Air Cleaner Mounting

$25.99

$

Usually ships in 2-12 days

0

717A

Briggs & Stratton 843566

BRACKET, Air Cleaner

$107.99

$

Usually ships in 2-12 days

0

813

Briggs & Stratton 807377

CLAMP

$6.49

$

Usually ships in 2-12 days

0

833

Briggs & Stratton 847281

SCREW

Note: (Air Cleaner Mounting Strap/Stud)

$3.99

$

Usually ships in 2-12 days

0

961

Briggs & Stratton 807084

SCREW

Note: (Air Cleaner Bracket)

$3.49

$

In Stock, Qty 12

0

961A

Briggs & Stratton 841233

SCREW

Note: (Air Cleaner Bracket)

$3.49

$

In Stock, only 3 left!

0

961B

Briggs & Stratton 692056

SCREW

Note: (Air Cleaner Bracket)

$5.99

$

In Stock, Qty 5

0

961C

Briggs & Stratton 807120

SCREW

Note: (Air Cleaner Bracket)

$3.99

$

Usually ships in 2-12 days

0

964

CAP, Connector

Note: (Part information located in Carburetor and Fuel Supply Group.)

$

$

Not available

968

Briggs & Stratton 842620

COVER, Air Cleaner

$83.99

$

Usually ships in 2-12 days

0

968B

Briggs & Stratton 841822

COVER, Air Cleaner

$49.99

$

Usually ships in 2-12 days

0

971

Briggs & Stratton 841853

SCREW

Note: (Air Cleaner Base To Carburetor/Throttle Body)

$6.49

$

Usually ships in 2-12 days

0

996

Briggs & Stratton 845211

SHIELD, Carburetor

$19.99

$

Usually ships in 2-12 days

0

1315

Briggs & Stratton 842445

HOSE, Air Cleaner

$59.99

$

Usually ships in 2-12 days

0

1328

Briggs & Stratton 716244

CAP, A/C Rain

$60.99

$

In Stock, only 1 left!

0

1406

Briggs & Stratton 842623

VALVE, Debris

$20.99

$

In Stock, only 1 left!

0
