38580 (1132) - Toro 32" Power Shift Snow Thrower (SN: 000000001 - 000999999) (1990) TRACTION LINKAGE ASSEMBLY Parts Diagram

32" Power Shift Snow Thrower

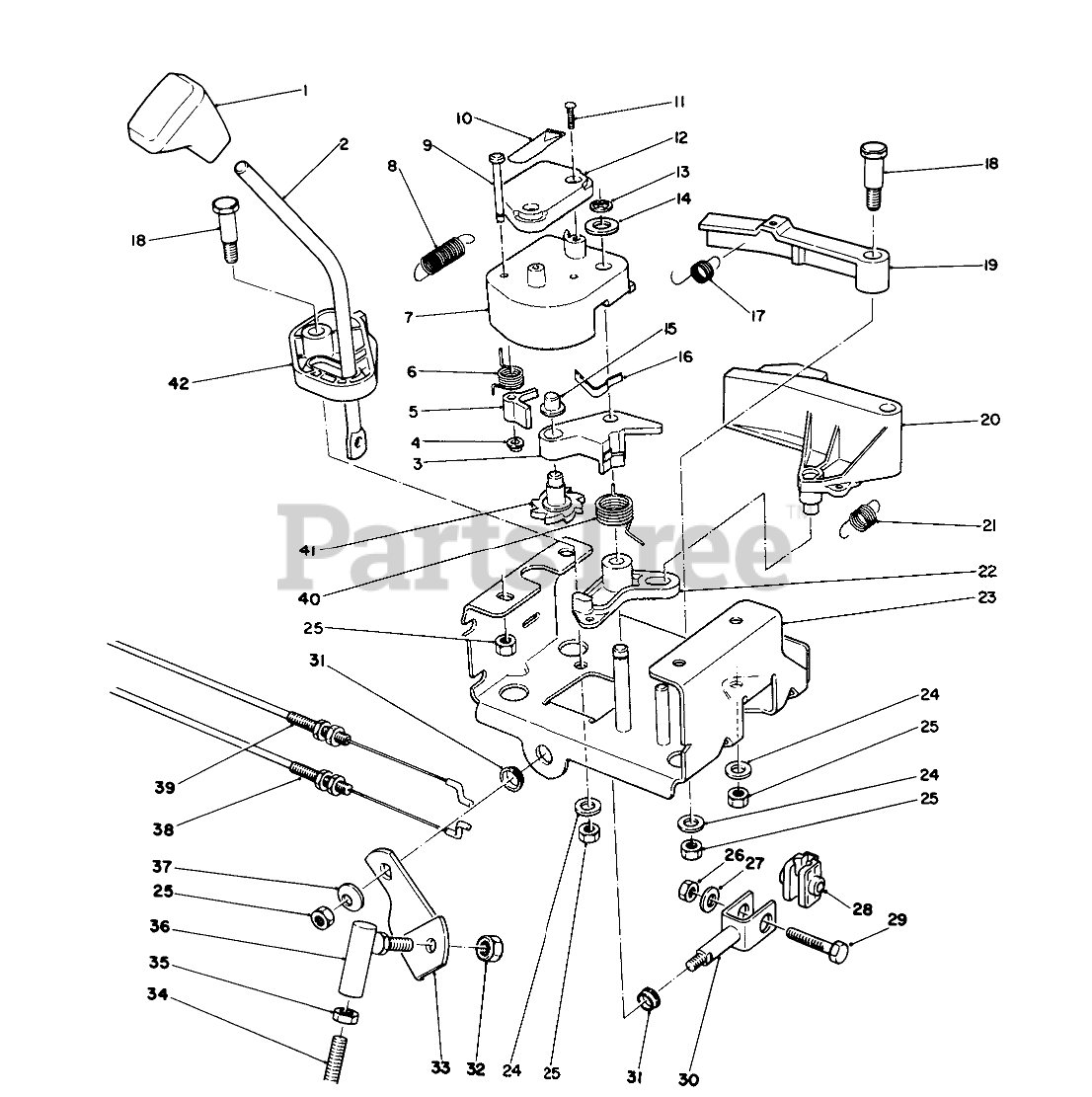

TRACTION LINKAGE ASSEMBLY Parts Diagram

  • Title

1

Toro 62-1290

KNOB-SHIFT

$

$

Not available

2

Toro 67-9240

ROD-SHIFT

$

$

Not available

3

Toro 62-1110

LEVER-WHEEL, INDEX

$14.99

$

Usually ships in 3-6 days

0

4

Toro 3290-422

NUT-PUSH

$1.99

$

In Stock, Qty 20+

0

5

Toro 62-0180

TANG-INDEX

$

$

Not available

6

Toro 62-1650

SPRING-TORSION

$9.49

$

Usually ships in 3-6 days

0

7

Toro 62-1100

LATCH-LEVER

$

$

Not available

8

Toro 63-2220

SPRING-EXTENSION

$12.99

$

In Stock, only 1 left!

0

9

Toro 63-2610

PIN-TANG

$

$

Not available

10

Toro 63-2480

DECAL

$

$

Not available

11

Toro 32104-118

SCREW-PPH

$

$

Not available

12

Toro 62-1140

COVER-LATCH

$

$

Not available

13

Toro 32120-46

RING-RETAINING

$2.49

$

Usually ships in 3-6 days

0

14

Toro 257-9

WASHER-THRUST

$4.99

$

Usually ships in 3-6 days

0

15

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

16

Toro 62-1710

SPRING-FLAT

$

$

Not available

17

Toro 63-2240

SPRING-EXTENSION

$

$

Not available

18

Toro 63-2650

SCREW-SHOULDER

$8.49

$

In Stock, only 2 left!

0

19

Toro 62-1700

LEVER-LOCKOUT

$28.99

$

Usually ships in 3-6 days

0

20

Toro 62-1130

LEVER-REVERSE

$49.99

$

In Stock, only 2 left!

0

21

Toro 63-2230

SPRING-EXTENSION

$9.49

$

Usually ships in 3-6 days

0

22

Toro 62-1120

LEVER-REVERSE, SWITCH

$41.99

$

Usually ships in 3-6 days

0

23

Toro 63-2150

Frame-Control
(Superseded to 63-2150-03)

$153.99

$

Usually ships in 3-6 days

0

24

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

25

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

26

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

27

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 13

0

28

Toro 67-9250

RETAINER-ROD, SHIFT

$8.49

$

Usually ships in 3-6 days

0

29

Toro 321-43

CAPSCREW

$0.99

$

In Stock, Qty 20+

0

30

Toro 66-7730

CLEVIS ASM

$

$

Not available

31

Toro 256-296

BUSHING

$14.99

$

In Stock, only 1 left!

0

32

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

33

Toro 63-2630

BRACKET-SHIFT

$

$

Not available

34

Toro 63-2830

ROD-BENT SHIFT, LOWER

$

$

Not available

35

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

0

36

Toro 63-2640

JOINT-BALL

$

$

Not available

37

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 20+

0

38

Toro 63-2210

CABLE-GEARBOX

$

$

Not available

39

Toro 63-2200

CABLE-ARM, LATCH

$72.99

$

Usually ships in 3-6 days

0

40

Toro 63-2270

SPRING-TORSION

$19.99

$

Usually ships in 3-6 days

0

41

Toro 62-0170

WHEEL-INDEX

$14.99

$

Usually ships in 3-6 days

0

42

Toro 62-1470

BASE-LOCKOUT

$

$

Not available
